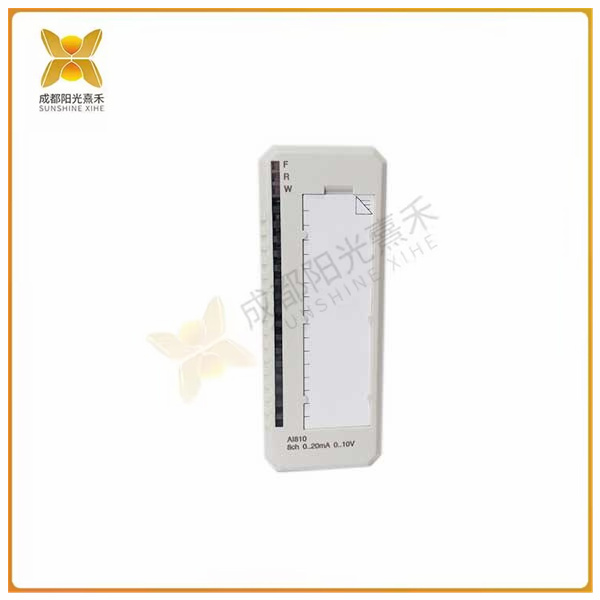

>>>>>型號:AI810 8通道模擬量輸入模塊 單端單極輸入

【功能描述】

AI810 8 通道模擬量輸入模塊 ABB

AI810 8通道模擬量輸入模塊的優勢：

特點和好處

8 個通道，用于 0…20 mA、4…20 mA、0…10 V 或 2…10 V dc，單端單極輸入

1組8通道與地隔離

12 位分辨率

輸入分流電阻器由 PTC 電阻器保護至 30 V

模擬輸入短路保護至 ZP 或 +24 V

輸入承受 HART 通訊。

AI810 模擬量輸入模塊有 8 個通道。每個通道可以是電壓或電流輸入。電流輸入能夠處理至少 30 V dc 的變送器電源短路而不會損壞。電流限制是通過一個 PTC 電阻來執行的。電流輸入的輸入電阻為 250 歐姆，包括 PTC。

 >>>>>型號:AI810 8通道模擬量輸入模塊 單端單極輸入

【英文介紹】

AI810 8-channel analog input module ABB

Benefits of the AI810 8-channel analog input module:

Features and benefits

8 channels for 0... 20 mA, 4... 20 mA, 0... 10 V or 2... 10 V dc, single-ended single-pole input

One group of eight channels is isolated from the ground

12-bit resolution

The input shunt resistor is protected to 30 V by a PTC resistor

Analog input short-circuit protection to ZP or +24 V

Input receives HART communication.

The AI810 analog input module has eight channels. Each channel can be a voltage or current input. The current input is capable of handling a short circuit in the transmitter power supply of at least 30 V dc without damage. Current limiting is performed by a PTC resistor. The input resistance for current input is 250 ohms, including PTC.
