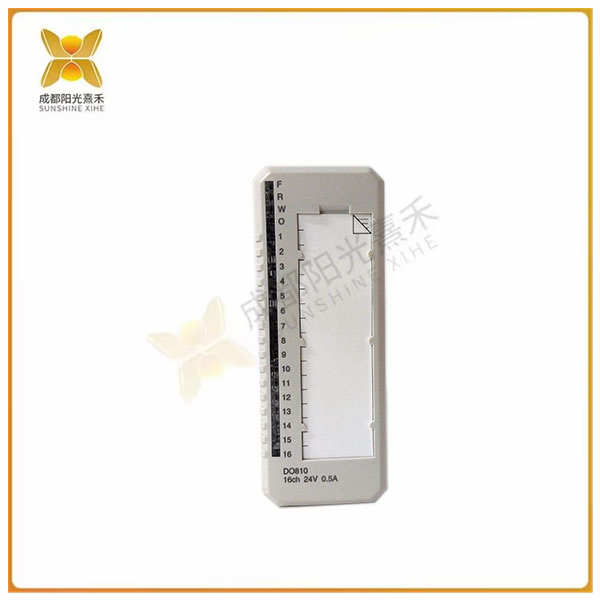

>>>>>型號:DO810 16 個數字輸出 輸出具有短路、過壓和過溫保護
【功能描述】
該模塊有 16 個數字輸出。輸出電壓范圍為 10 至 30 伏，最大連續輸出電流為 0.5 A。輸出具有短路、過壓和過溫保護。輸出分為兩個獨立隔離的組，每組有 8 個輸出通道和 1 個電壓監控輸入。每個輸出通道由短路和過溫保護高側驅動器、EMC保護元件、感性負載抑制、輸出狀態指示LED和光隔離柵組成。
如果電壓消失，過程電壓監控輸入會發出通道錯誤信號。錯誤信號可以通過 ModuleBus 讀取。輸出具有限流功能，并具有過熱保護功能。如果輸出過載，則輸出電流將受到限制。
特點和優勢
16 個通道用于 24 V 直流電流源輸出
2 組隔離的 8 個通道，帶過程電壓監控
輸出狀態指示燈
OSP 在檢測到錯誤時將輸出設置為預定狀態
接地短路保護和 30 V 短路保護
過壓和過溫保護
>>>>>型號:DO810 16 個數字輸出 輸出具有短路、過壓和過溫保護
【英文介紹】
The module has 16 digital outputs. The output voltage ranges from 10 to 30 volts, with A maximum continuous output current of 0.5 A. The output is protected against short circuit, overvoltage and overtemperature. The outputs are divided into two separate groups, each with eight output channels and one voltage monitoring input. Each output channel consists of short circuit and overtemperature protected high side drivers, EMC protection elements, inductive load suppression, output status indicator leds and optical isolation barriers.
If the voltage disappears, the process voltage monitoring input emits a channel error signal. The error signal can be read by the ModuleBus. The output has current limiting function and overheat protection function. If the output is overloaded, the output current will be limited.
Characteristics and advantages
16 channels for 24 V DC current source output
2 sets of 8 isolated channels with process voltage monitoring
Output status light
The OSP sets the output to a scheduled state when an error is detected
Ground short circuit protection and 30 V short circuit protection
Over voltage and over temperature protection
