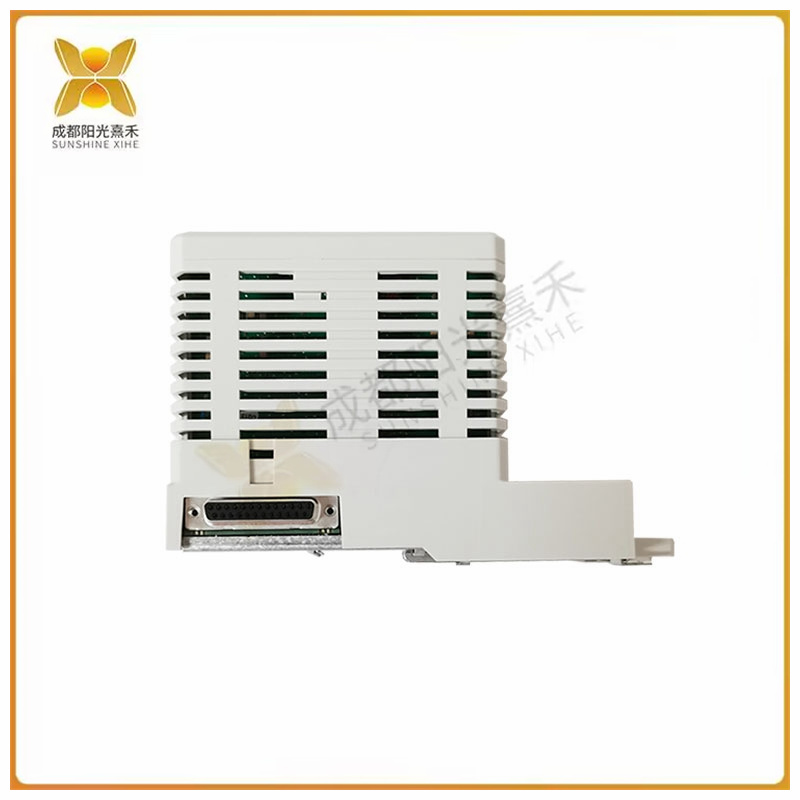

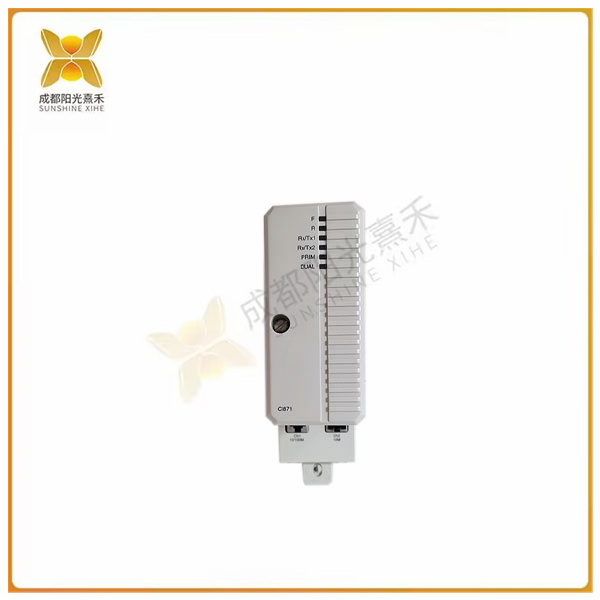

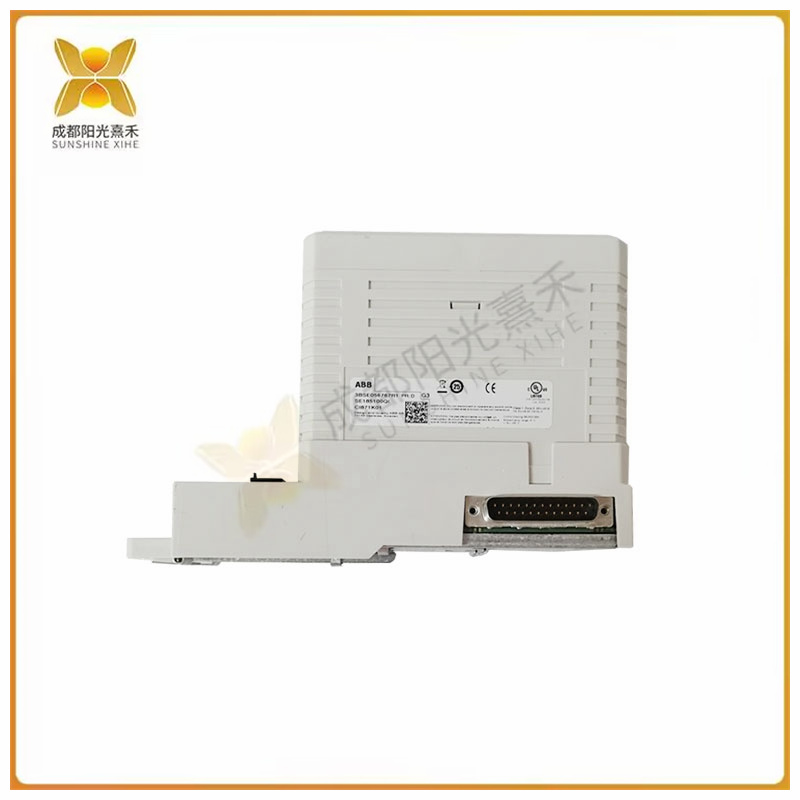

>>>>>型號:CI871 AC 800M 通信接口 以太網連接

【功能描述】

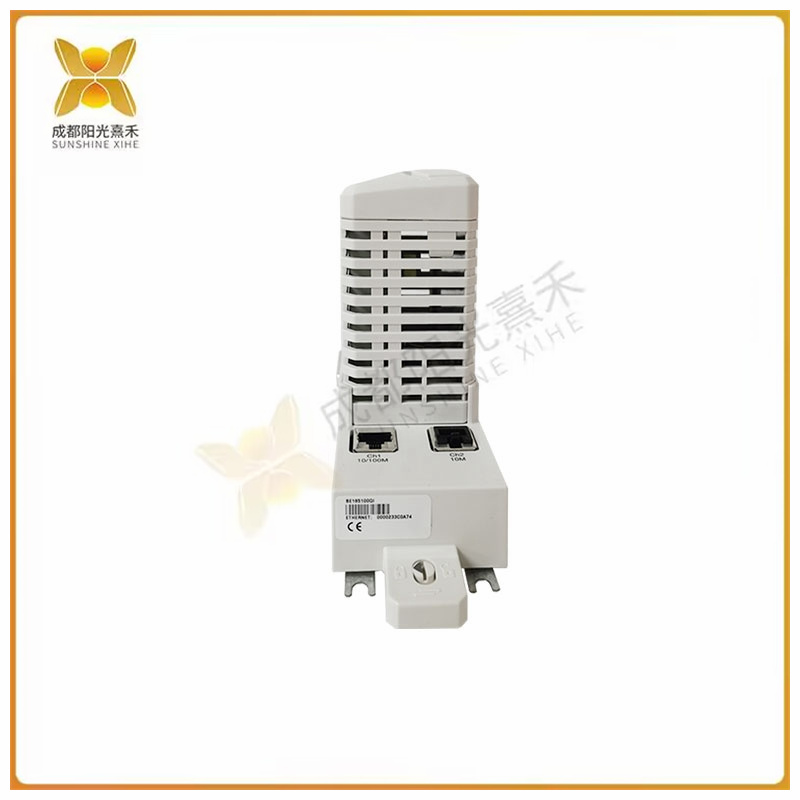

CI871A 是 AC 800M 通信接口，通過以太網連接到 PROFINET IO 設備。TP867 底板有兩個 RJ45 以太網連接器，但只有支持 100Mbps 的 CH1 連接器用于 PROFINET IO 連接。以太網電纜必須通過以太網交換機連接到 PROFINET IO 網絡。

CI871 擴展單元包含 CEX 總線邏輯、通信單元和 DC/DC 轉換器，該轉換器通過 CEX-Bus 從 +24 V 電源提供所需的電壓。

CI871A 模塊僅適用于 System 800xA 6.0.3.3、6.1.1 及后續版本

特點和優勢

通過以太網連接PROFINET IO設備

一般信息

產品編號：編號：3BSE056767R3

ABB型號名稱：800×A 6.0

目錄說明：CI871 PROFINET IO 軟件許可證 800xA

詳細描述：CI871K01 僅限 PROFINET IO 通信接口許可證。

>>>>>型號:CI871 AC 800M 通信接口 以太網連接

【英文介紹】

The CI871A is an AC 800M communication interface that connects to the PROFINET IO device over Ethernet. The TP867 baseboard has two RJ45 Ethernet connectors, but only the 100Mbps CH1 connector is used for PROFINET IO connectivity. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.

The CI871 expansion unit contains the CEX Bus logic, a communication unit, and a DC/DC converter that delivers the required voltage from a +24 V power supply via the CEX-BUS.

The CI871A module is only applicable to System 800xA 6.0.3.3, 6.1.1 and later versions

Characteristics and advantages

Connect the PROFINET IO device via Ethernet

General information

Product Number: Number: 3BSE056767R3

ABB model name: 800 x A 6.0

Directory Description: CI871 PROFINET IO software license 800xA

Detailed description: CI871K01 is licensed for PROFINET IO communication interface only.
