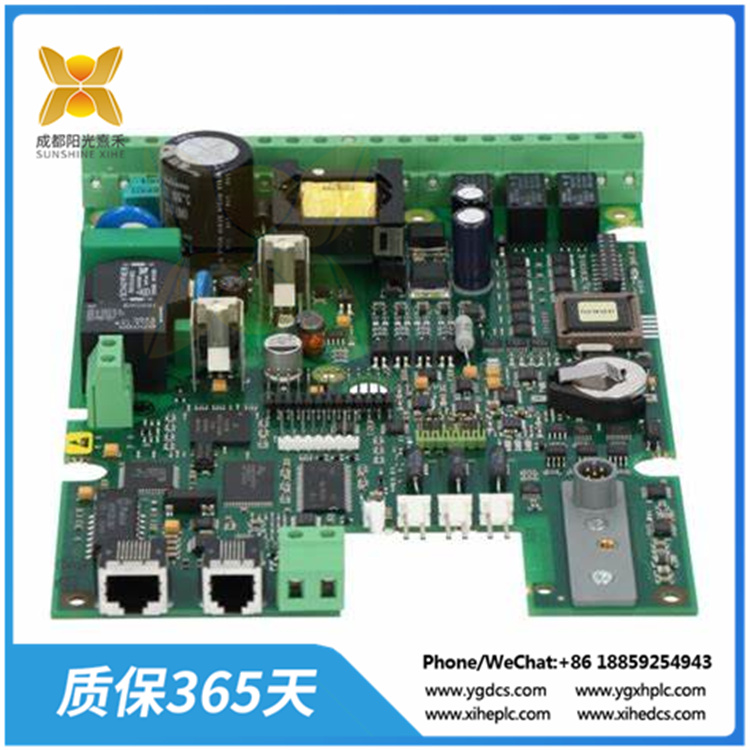

>>>型號:1SFB536068D1011 啟動器控制板 用于自動化系統

【功能描述】

1SFB536068D1011 啟動器控制板，是一個專門設計用于控制電機啟動過程的電路板。在工業自動化和電力控制系統中，啟動器控制板負責管理和調控電機的啟動、停止以及可能的變速操作。這樣的控制

板通常集成了各種保護功能，以確保電機在異常情況下能夠安全停機。

1SFB536068D1011啟動器控制板是一種電子設備，專門設計用于管理和控制電機的啟動過程。這種控制板通常集成了電路和元器件，能夠?qū)崿F(xiàn)對電機啟動、停止以及運行過程中的各種參數進行精確控制。

1SFB536068D1011在功能上，啟動器控制板能夠根據預設的參數或外部輸入信號，通過內部控制邏輯來調整電機的啟動方式，如電壓斜坡啟動、電流限流啟動等，以達到平穩啟動電機的目的。同時，它

還可以監測電機的運行狀態，如電流、電壓、溫度等，以確保電機在安全范圍內運行。

啟動器控制板通常還具備多種保護功能，如過載保護、短路保護、缺相保護等，以在電機運行過程中現異常時及時切斷電源，防止設備損壞和安全事故的發生。

啟動器控制板通常由微處理器（或單片機）、電源電路、信號采樣電路、脈沖觸發電路等組成。其中，微處理器是控制板的核心，負責接收輸入信號、處理數據并輸出控制信號；電源電路為控制板提供穩定

的工作電源；信號采樣電路負責采集電機的運行參數；脈沖觸發電路則根據微處理器的指令來觸發電機的啟動或停止。

>>>>型號:1SFB536068D1011 啟動器控制板 用于自動化系統

【英文介紹】

The 1SFB536068D1011 Starter control board is a circuit board specially designed to control the motor starting process. In industrial automation and power control systems, the starter control board is

responsible for managing and regulating the start, stop and possibly variable speed operation of the motor. Such a control board usually integrates various protection functions to ensure that the motor

can be safely shut down in abnormal conditions.

The 1SFB536068D1011 Starter Control board is an electronic device specifically designed to manage and control the starting process of a motor. This control board is usually integrated with circuits and

components, and can achieve accurate control of various parameters during motor start, stop and operation.

1SFB536068D1011 In terms of function, the starter control board can adjust the starting mode of the motor according to the preset parameters or external input signals through the internal control logic,

 such as voltage ramp starting, current limiting starting, etc., in order to achieve the purpose of smoothly starting the motor. At the same time, it can also monitor the operating state of the motor, such as

current, voltage, temperature, etc., to ensure that the motor is operating within a safe range.

The starter control board usually also has a variety of protection functions, such as overload protection, short circuit protection, phase loss protection, etc., to cut off the power supply in time when the motor

 is abnormal during operation to prevent equipment damage and safety accidents.

The starter control board is usually composed of a microprocessor (or single chip microcomputer), a power supply circuit, a signal sampling circuit, and a pulse triggering circuit. Among them, the microprocessor

 is the core of the control board, which is responsible for receiving input signals, processing data and output control signals. The power supply circuit provides stable working power for the control board; The signal

 sampling circuit is responsible for collecting the operating parameters of the motor; The pulse trigger circuit triggers the motor to start or stop according to the instructions of the microprocessor.

>>>>型號:1SFB536068D1011 啟動器控制板 用于自動化系統
