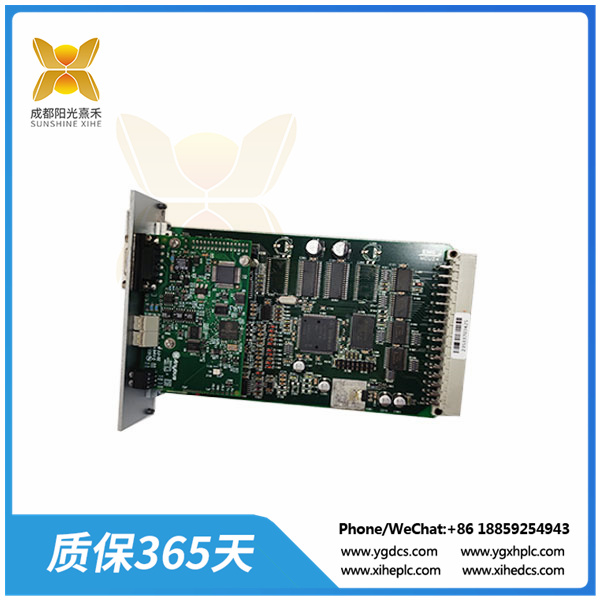

MCU2A01C0-4 | 電機控制單元 | 216MB66 HESG324510M1 | SPAJ140C
型號：MCU2A01C0-4
類別：電機控制單元
毛重:0.54 kg
保障：365天
發貨：3-5天/周
條件：全新 & 有貨
付款：電匯，西聯匯款
尺寸：20 毫米 x 125 毫米 x 50 毫米
重量：2公斤
保證：12個月
MCU2A01C0-4 電機控制單元(MCU)是一種智能微處理器電機保護和控制繼電器
在INSUM 2系統中使用。在INSUM 2中有6種不同的MCU變體
根據其內部CT比，電壓監測單元的可用性和范圍進行分類
電源。下表顯示了可用的不同MCU
編號為mcu2a001c0 -4 (1SCA022657R8610)和MCU2A02C0-4 (1SCA022657R8950)
可購買的時間更長，并于2019年3月進入淘汰階段
分別于2019年9月
MCU2A01C0-4 兩種MCU的主要區別在于電壓監測功能
MCU2A01V2-4和MCU2A02V2-4。下圖顯示了兩者的區別
MCU2A01C0-4 電壓監測是在一個稱為電壓單元的單獨硬件中處理的。的
電壓單元有X17和X18端子，用于監測電壓和功率
分別供應。
用于替換1SCA022657R8610 (MCU2A01C0-4)和1SCA022657R8950
(MCU2A02C0-4)， 1SCA022657R8790 (MCU2A01V2-4)和1SCA022657R9090
(MCU2A02V2-4)可在不使用/連接電壓單元時分別使用。
Model: MCU2A01C0-4
Category: Motor control unit
Gross weight :0.54 kg
Guarantee: 365 days
Delivery: 3-5 days/week
Condition: New & available
Payment: Wire transfer, Western Union
Dimensions: 20 mm x 125 mm x 50 mm
Weight: 2 kg
Guarantee: 12 months
The MCU2A01C0-4 Motor Control Unit (MCU) is an intelligent microprocessor motor protection and control relay
It is used in the INSUM 2 system. There are 6 different MCU variants in INSUM 2
They are classified according to their internal CT ratio, availability and range of voltage monitoring units
Power. The following table shows the different MCUS available
Serial numbers mcu2a001c0-4 (1SCA022657R8610) and MCU2A02C0-4 (1SCA022657R8950)
It will be available for purchase for a longer period of time and will enter the phase-out phase in March 2019
In September 2019
MCU2A01C0-4 The main difference between the two MCUS is the voltage monitoring function
MCU2A01V2-4 and MCU2A02V2-4. The following figure shows the difference between the two
MCU2A01C0-4 Voltage monitoring is handled in a separate piece of hardware called a voltage unit. the
The voltage unit has X17 and X18 terminals for monitoring voltage and power
Supply separately.
Used to replace 1SCA022657R8610 (MCU2A01C0-4) and 1SCA022657R8950
(MCU2A02C0-4), 1SCA022657R8790 (MCU2A01V2-4) and 1SCA022657R9090
(MCU2A02V2-4) can be used separately when the voltage unit is not used/connected. .
