3BSE000860R1 | CI535V30 3BSE022162R1 | SB510 備用電源 110/230V AC |
型號：3BSE000860R1
目錄說明:SB510 備用電源 110/230V AC
詳細描述:SB510 備用電源
110-230 VAC 47-60Hz或110-230 VDC
設計用于為鎳鎘電池充電 12 V，4 Ah
注意!根據其中第2(4)(c)、(e)、(f) 和條的規定，本部件不受 2011/65/EU(RoHS)范圍
的約束(參考:3BSE088609-歐盟符合性
聲明-ABB Advant Master 過程控制系統)
基他信息
介質描述:備用電源
產品類型:Power Supply
訂購
海關編碼:850440--變壓器、靜志轉換器(例如整流器)和電感器
海關稅則號:85044082
尺寸
產品凈深度/長度:291 毫米
產品凈高:150 毫米
產品凈寬:60 毫米
產品凈重:0.98 千克
環境的
RoHS狀態:遵循歐盟指令 2011/65/EU
WEEE類別:5.小型設備(外部尺寸不超過50厘米)
電池數量:0
上海化學丅業區:8a71de04-baf4-4395-9f39-8c98dd9bd6c1 瑞典(SE)
SB510-3BSE000860R1備用電源是一種在主電源故障或停電時提供電力的設備。它通常用于保護重要的電子設備和系統，以確保它們能夠繼續正常運行。

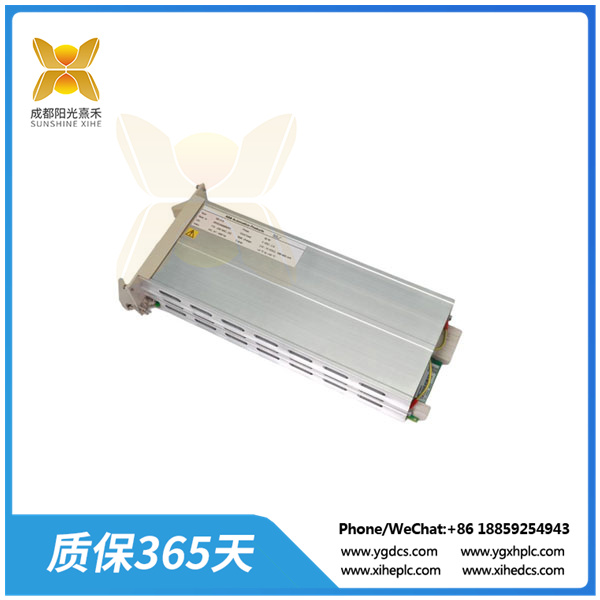

Model: 3BSE000860R1
Directory Description :SB510 Standby power supply 110/230V AC
Detailed description :SB510 backup power supply
110-230 VAC 47-60Hz or 110-230 VDC
Designed to charge 12 V, 4 Ah nickel-cadmium batteries
Attention! In accordance with Articles 2(4)(c), (e), (f) and (j), this part is not subject to the scope of 2011/65/EU(RoHS)
(Ref :3BSE088609- EU compliance)
Statement -ABB Advant Master Process Control System)
Basic information
Medium description: Standby power supply
Product type :Power Supply
order
Customs Code :850440- transformers, static converters (e.g. rectifiers) and inductors
Customs Code :85044082
dimension
Product net depth/length :291 mm
Product height: 150mm
Product width :60 mm
Net weight :0.98 kg
environmental
RoHS status: Compliance with EU Directive 2011/65/EU
WEEE Category :5. Small equipment (external size does not exceed 50 cm)
Battery number :0
Shanghai Chemical District :8a71de04-baf4-4395-9f39-8c98dd9bd6c1 Sweden (SE)
SB510-3BSE000860R1 Backup power supply is a device that provides power in the event of a primary power failure or power outage. It is commonly used to protect important electronic devices and systems to ensure that they can continue to function properly.
