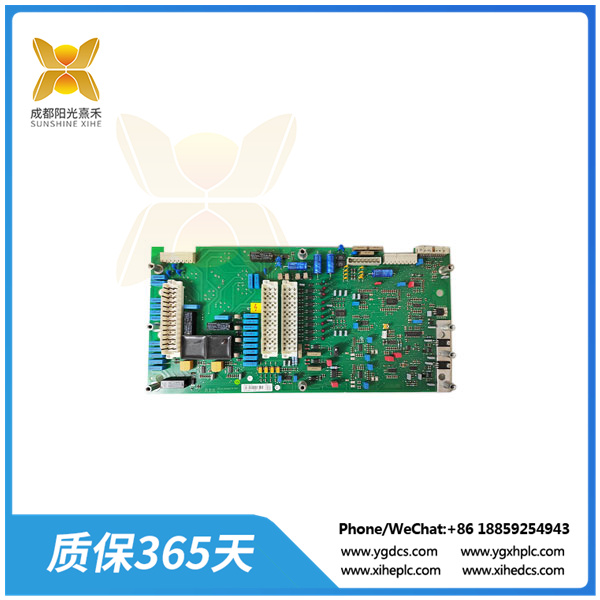

PFSK160A 3BSE009514R1 | 繼電器模塊 | PFTL201C 10KN 3BSE007913R0010
型號：PFSK160A 3BSE009514R1
類別: 繼電器模塊
成色：全新/非全新
貨期：現貨
質保：一年
快遞：順豐/德邦
產品凈厚度/長度:20.3 厘米
產品凈高:15.7 厘米
產品凈寬:13.5 厘米
產品凈重:1.14 千克
PFSK160A 3BSE009514R1 繼電器模塊是在繼電器的基礎上增加了電子控制電路的半成品電路板，以電路板的形式提供給用戶。它可以使用低電壓控制高電壓，并且常用于需要隔離低功率信號與高功率負載之間的應用，如家庭自動化、工業自動化、汽車電子等領域。
PFSK160A 3BSE009514R1 繼電器模塊的工作原理基于電磁原理。當通過線圈通電時，會產生電磁場，這個電磁場會吸引繼電器中的鐵芯(或磁性材料)，導致鐵芯在電磁力的作用下移動。鐵芯的移動會導致機械部分的運動，最終使觸點(開關)發生動作。觸點有兩種狀態：常開觸點和常閉觸點。常開觸點在繼電器未通電時處于斷開狀態，當電磁線圈通電時，觸點閉合。常閉觸點在繼電器未通電時處于閉合狀態，當電磁線圈通電時，觸點打開。
繼電器模塊根據控制電壓的極性可以分為高電平控制、低電平控制和不限制電平控制。它的主要作用之一是提供電氣隔離，通過電磁原理在控制信號與被控制電路之間提供隔離，使得不同電路之間的電流不會相互影響。
使用繼電器模塊的好處在于可以減少繼電器模塊控制電路的設計，使開發設計者將更多的精力用于設計整個系統的功能實現。繼電器模塊廣泛應用于各個領域，如家庭自動化、工業自動化、汽車電子等，以實現智能化的家居控制、機械設備的啟停、電機控制、溫度控制等功能。
總的來說，繼電器模塊是一個非常重要的電子元器件，在電子電路中扮演著重要的角色。
Model: PFSK160A 3BSE009514R1
Category: Relay module
Finish: New/not new
Delivery time: from stock
Warranty: One year
Express: SF Express/Debon
Net product thickness/length :20.3 cm
Product height :15.7 cm
Product width :13.5 cm
Net weight :1.14 kg
The PFSK160A 3BSE009514R1 relay module is a semi-finished circuit board with an electronic control circuit added on the basis of the relay, and is provided to the user in the form of a circuit board. It can control high voltages using low voltages, and is often used in applications where low-power signals need to be isolated from high-power loads, such as home automation, industrial automation, automotive electronics, and more.
The working principle of the PFSK160A 3BSE009514R1 relay module is based on electromagnetic principles. When electricity is applied through the coil, an electromagnetic field is generated, which attracts the iron core (or magnetic material) in the relay, causing the iron core to move under the action of the electromagnetic force. The movement of the iron core will cause the movement of the mechanical part, and finally make the contact (switch) action. There are two states of contact: normally open contact and normally closed contact. Normally open contact is in the open state when the relay is not powered on, and when the electromagnetic coil is powered on, the contact is closed. The normally closed contact is in the closed state when the relay is not powered on, and the contact is open when the electromagnetic coil is powered on.
The PFSK160A 3BSE009514R1 relay module can be divided into high level control, low level control and unrestricted level control according to the polarity of the control voltage. One of its main roles is to provide electrical isolation, through the electromagnetic principle between the control signal and the controlled circuit to provide isolation, so that the current between different circuits will not affect each other.
The advantage of using relay module is that it can reduce the design of relay module control circuit, so that the development designer will spend more energy on designing the function of the whole system. Relay modules are widely used in various fields, such as home automation, industrial automation, automotive electronics, etc., to achieve intelligent home control, mechanical equipment start and stop, motor control, temperature control and other functions.
In general, the relay module is a very important electronic component and plays an important role in electronic circuits.
