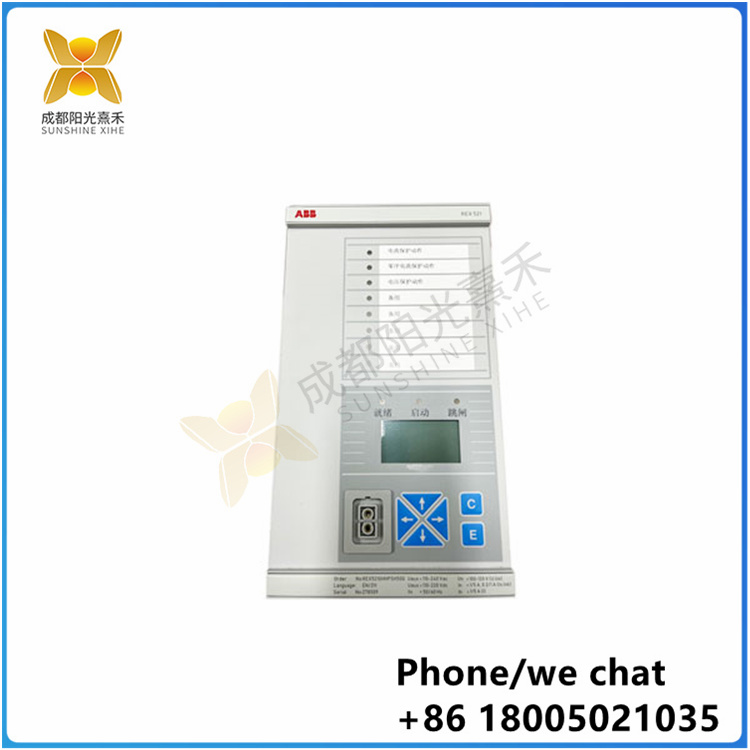

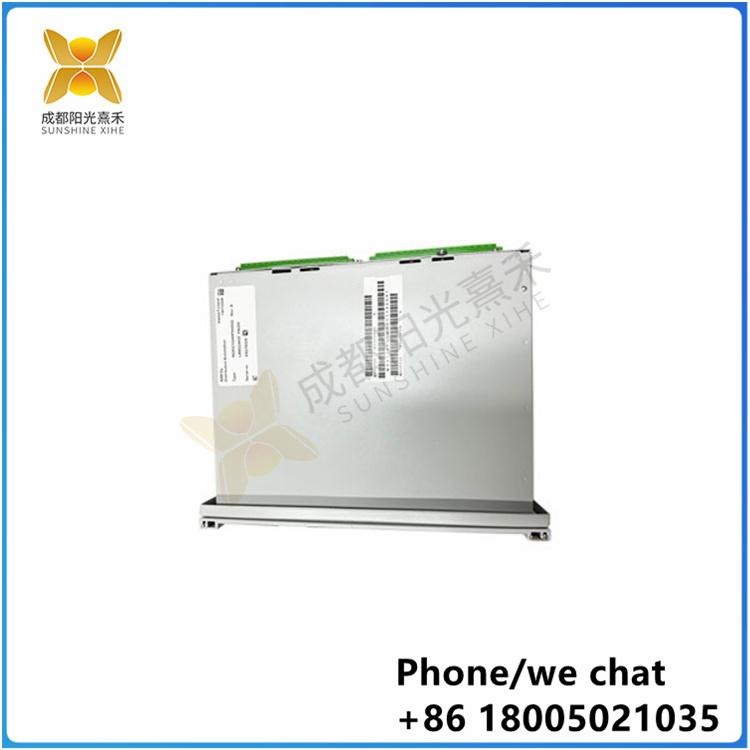

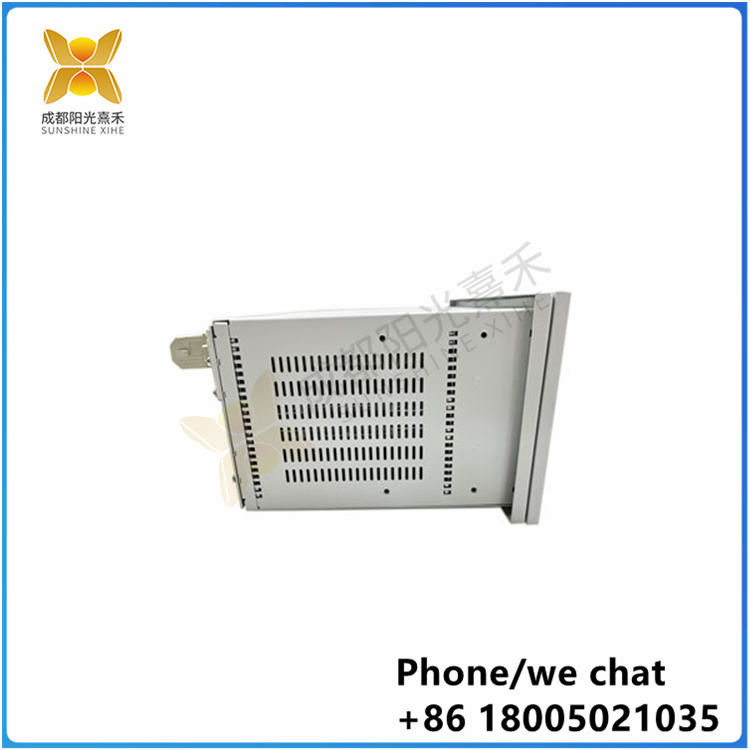

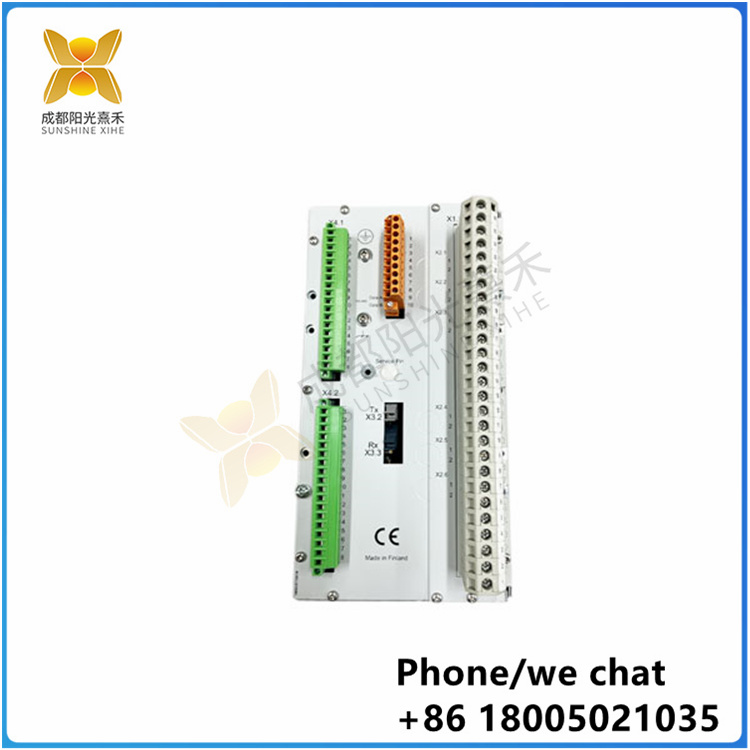

REX521GHHPSH50G  |T8110B型|保護單元|

產品概述

名稱：REX521GHHPSH50G保護單元

類型：綜合保護裝置繼電器

設計用途：專門用于中壓網絡中的保護、控制、測量和監控功能

二、主要應用

典型應用：輸入和輸出饋線保護、變電站保護，以及電力變壓器的后備保護和高壓電動機的保護。

作用：在饋線發生短路、接地故障或其他異常情況時，快速切除故障，保護電力系統的穩定運行。

三、技術特點

多處理器環境：基于多處理器環境設計，具有強大的處理能力和速度，能夠應對復雜和大量的數據處理需求。

激勵輸入方式：支持傳統的電流和電壓互感器的激勵輸入，同時也支持通過輸入電流和電壓傳感器進行激勵輸入，增加了應用的靈活性和廣泛性。

人機界面功能：配備豐富的人機界面功能，包括導航按鈕、清除/取消按鈕和進入按鈕等，支持語言選擇、設置值受密碼保護、顯示背光、顯示對比度、顯示測試、主要值的選擇以及光隔離串行通信端口等功能。這使得用戶可以方便地進行本地操作，并通過指示消息獲取設備的狀態信息。

軟件解決方案：采用現代軟件解決方案，提高了運行效率和數據處理能力。

Product overview

Name: REX521GHHPSH50G protection unit

Type: Comprehensive protection device relay

Designed use: Specially used for protection, control, measurement and monitoring functions in medium voltage networks

Second, the main application

Typical applications: input and output feeder protection, substation protection, and backup protection of power transformers and protection of high-voltage motors.

Function: When the feeder has short circuit, ground fault or other abnormal conditions, the fault can be quickly removed to protect the stable operation of the power system.

3. Technical characteristics

Multi-processor environment: Based on the design of multi-processor environment, it has powerful processing power and speed, and can cope with complex and large data processing needs.

Excitation input mode: Support the traditional current and voltage transformer's excitation input, but also support the input current and voltage sensor for excitation input, increase the flexibility and universality of the application.

Man-machine interface functions: equipped with rich man-machine interface functions, including navigation buttons, clear/cancel buttons and enter buttons, etc., support language selection, setting values protected by password, display backlight, display contrast, display test, main value selection and optical isolation serial communication port functions. This makes it easy for the user to operate locally and get the status information of the device through the indication message.

Software solutions: The use of modern software solutions to improve operational efficiency and data processing capabilities.
