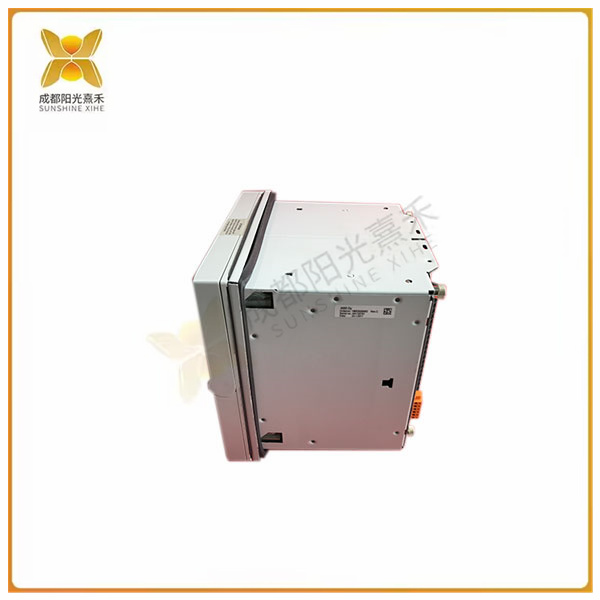

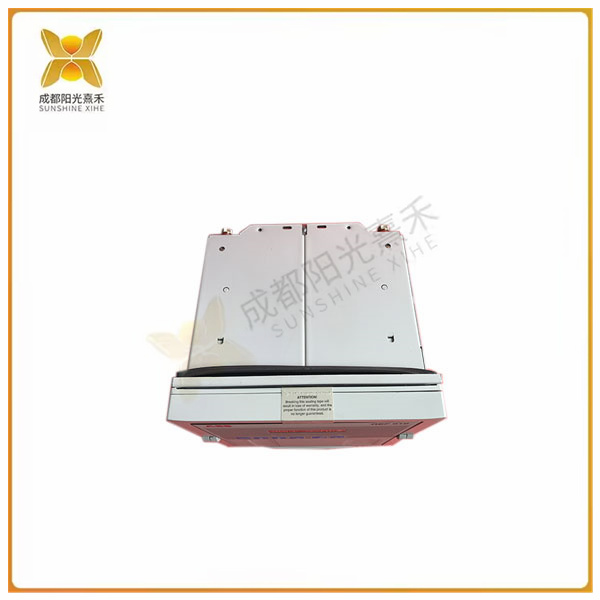

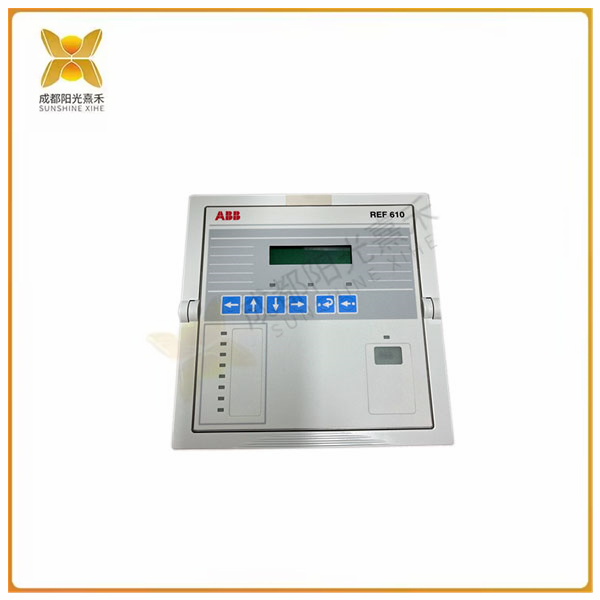

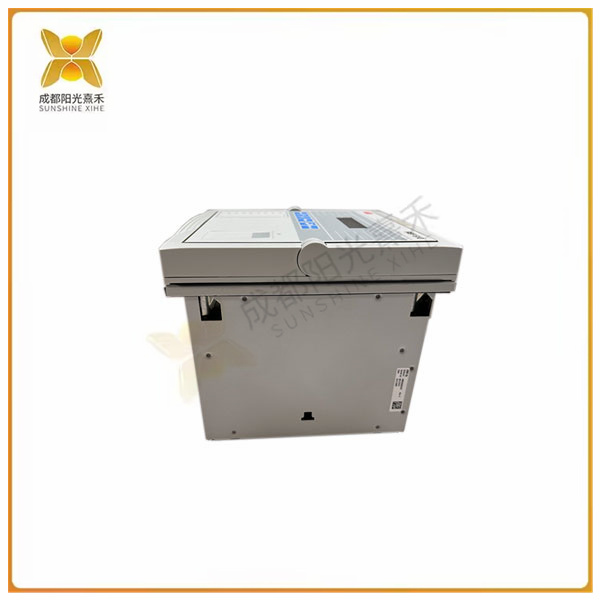

>>>>>型號:REF610C11LCLR 饋線保護的繼電器 保護變電站母線電弧故障

【功能描述】

REF610C11LCLR是一款用于饋線保護的繼電器。這款繼電器主要用于保護電阻接地和牢固接地電力系統的配電變電站中的進站和出站饋線。此外，REF610C11LCLR還提供可選的電弧保護功能，并能夠快速地保護變電站母線電弧故障。

ABB高壓備件REF610C11LCLR SST配置工具將配置導出到*.bss文件（二進制），而COM PROFIBUS將配置導出到*.2bf文件（二進制）。您可以通過掃描儀上的串行端口將配置上傳到掃描儀，使用來自任何串行通信軟件的Xmodem傳輸。掃描儀將此配置存儲在掃描儀的閃存中，以便不需要每次啟動SLC時都上傳配置。從設備的輸入和輸出數據被映射到SLC I、O、M0和M1 文件。映射取決于您在配置中分配的地址。

 >>>>>型號:REF610C11LCLR 饋線保護的繼電器 保護變電站母線電弧故障

【英文介紹】

The REF610C11LCLR is a relay for feeder protection. This relay is primarily used to protect incoming and outgoing feeders in distribution substations where resistance is grounded and firmly grounded to power systems. In addition, the REF610C11LCLR offers optional arc protection and rapid protection against substation bus arc failures.

The REF610C11LCLR SST configuration tool exports the configuration to a *.bss file (binary), while COM PROFIBUS exports the configuration to a *.2bf file (binary). You can upload the configuration to the scanner via the serial port on the scanner, transferring using Xmodem from any serial communication software. The scanner stores this configuration in the scanner's flash memory so that you don't need to upload the configuration every time you start SLC. Input and output data from devices are mapped to SLC I, O, M0, and M1 files. The mapping depends on the address you assign in the configuration.

 >>>>>型號:REF610C11LCLR 饋線保護的繼電器 保護變電站母線電弧故障
