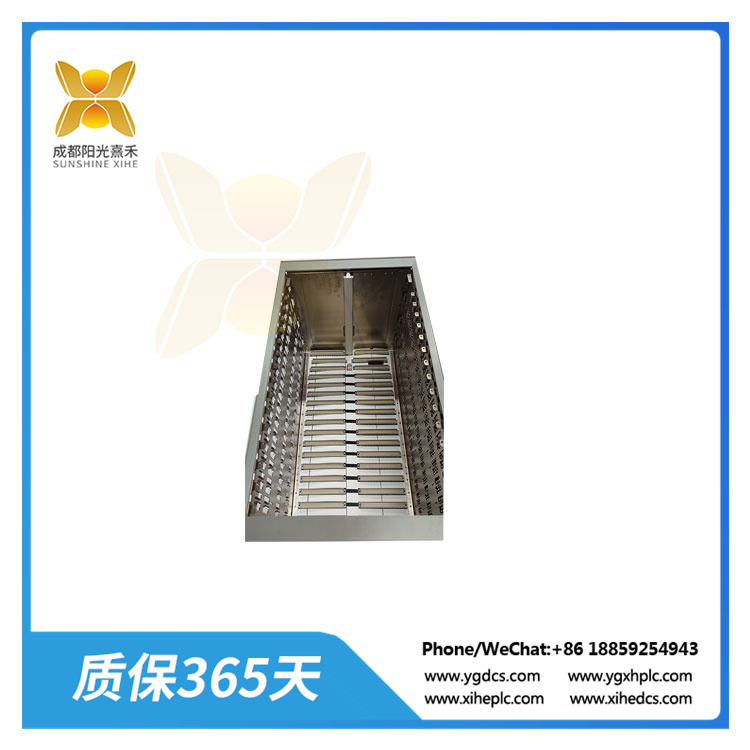

>>>型號:3500/05-01-01-00-00-00 框架 用于工業自動化和控制系統

【功能描述】

3500/05-01-01-00-00-00內華達3500系列在線監測與保護系統的一個重要組成部分。這個框架為3500系列的各個模塊提供了一個穩定的運行平臺，并且為它們之間的通信提供了背板通訊。同時，每個框架模塊都需要從這個框架中獲取其所需的電源。

該框架有兩種尺寸可供選擇：全尺寸框架為19英寸EIA框架，擁有14個可用模塊插槽；而迷你型框架則為12英寸，有7個可用模塊插槽。這樣的設計使得用戶可以根據實際需求選擇適合的框架尺寸。

在框架的訂貨形式上，Bently提供了三種選擇：面板安裝、框架安裝和壁板安裝。這為用戶提供了極大的安裝靈活性，可以根據設備的安裝環境和空間限制選擇合適的安裝方式。

在電源和框架接口模塊的安裝上，這些模塊必須安裝于框架的最左邊兩個插槽中。其余的插槽則可以安裝任何符合要求的模塊。這種設計確保了電源和框架接口的穩定性和可靠性，同時也方便了用戶的模塊安裝和更換。

總的來說，3500/05-01-01-00-00-00本特利Bently框架是一款功能強大、設計靈活的框架產品，能夠滿足各種工業設備的在線監測與保護需求。通過與3500系列的其他模塊配合使用，它能夠?yàn)樵O(shè)備的穩定運行提供有力的保障。

>>>>型號:3500/05-01-01-00-00-00 框架 用于工業自動化和控制系統

【英文介紹】

3500/05-01-01-00-00-00 An essential component of the Nevada 3500 Series On-line Monitoring and protection system. This framework provides a stable operating platform for each module of the 3500 series, and

provides backplane communication for the communication between them. At the same time, each frame module needs to obtain its required power from this frame.

The frame is available in two sizes: the full-size frame is a 19-inch EIA frame with 14 available module slots; The mini frame is 12 inches and has 7 available module slots. This design allows the user to choose the

appropriate frame size according to the actual needs.

In the form of frame ordering, Bently offers three options: panel mounting, frame mounting and wall panel mounting. This provides the user with great installation flexibility, which can be selected according to the

 installation environment and space constraints of the device.

In the installation of power and frame interface modules, these modules must be installed in the two leftmost slots of the frame. The remaining slots can be used to install any module that meets the requirements.

This design ensures the stability and reliability of the power supply and frame interface, while also facilitating the user's module installation and replacement.

Overall, the 3500/05-01-01-00-00-00 Bentley Bently framework is a powerful and flexible framework that meets the online monitoring and protection needs of a wide range of industrial equipment. In combination

with other modules of the 3500 series, it can provide a strong guarantee for the stable operation of the equipment.
