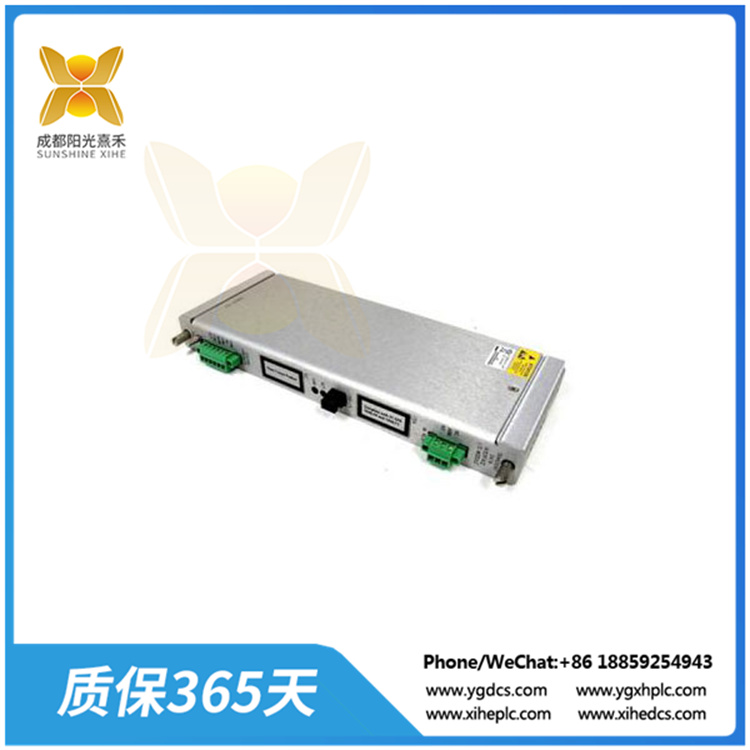

>>>型號:3500/22M 138607-01 數據接口模塊 用于工業自動化和控制系統

【功能描述】

3500/22M 138607-01數據接口模塊是振動監測系統中的一個關鍵組件，它主要用于連接3500監測系統和兼容軟件，如系統1狀態監測和診斷軟件以及3500系統配置軟件。該模塊不僅集成了3500/20機架接口模塊（RIM）的功能，

還具備通信處理器（如TDXnet）的數據收集能力，從而能夠連續采集穩態和瞬態波形數據。

該數據接口模塊的主要特點包括高速數據傳輸和強大的數據處理能力。通過以太網連接，它能夠快速將采集到的數據傳輸?shù)街饔?jì)算機軟件，確保數據的實時性和準確性。此外，該模塊還具有標準的靜態數據采集功能，并且可以通過

可選的通道使能磁盤進行瞬態或動態數據的采集。

3500/22M 138607-01數據接口模塊通常與M系列監測器（如3500/40M、3500/42M等）配合使用，共同實現對機械設備運行狀態的實時監測和數據分析。通過該模塊，用戶可以獲取到設備的振動、位移、速度等關鍵參數，進而

對設備的健康狀況進行評估和預測。

總的來說，3500/22M 138607-01數據接口模塊是Bently Nevad振動監測系統中不可或缺的一部分，它為用戶提供了高效、準確的數據采集和傳輸功能，有助于實現對機械設備運行狀態的全面監測和故障診斷。

>>>>型號:3500/22M 138607-01 數據接口模塊 用于工業自動化和控制系統

【英文介紹】

The 3500/22M 138607-01 Data interface module is a key component in the vibration monitoring system, it is mainly used to connect the 3500 monitoring system and compatible software, such as System 1 condition

 monitoring and diagnosis software and 3500 system configuration software. The module not only integrates the functions of a 3500/20 rack interface module (RIM), but also has the data collection capabilities of a

communication processor such as TDXnet, enabling continuous acquisition of steady-state and transient waveform data.

The main features of the data interface module include high-speed data transmission and powerful data processing capability. Through the Ethernet connection, it can quickly transfer the collected data to the main

computer software to ensure the real-time and accuracy of the data. In addition, the module also has a standard static data acquisition function, and can enable the disk to collect transient or dynamic data through an optional channel.

3500/22M 138607-01 Data interface module is usually used in conjunction with M series monitors (such as 3500/40M, 3500/42M, etc.) to jointly achieve real-time monitoring and data analysis of the operating status of mechanical

equipment. Through this module, users can obtain key parameters such as vibration, displacement, and speed of the equipment, and then evaluate and predict the health status of the equipment.

Overall, the 3500/22M 138607-01 data interface module is an integral part of the Bently Nevad vibration monitoring system, which provides users with efficient and accurate data acquisition and transmission functions, helping to

 achieve comprehensive monitoring and fault diagnosis of mechanical equipment operating status.
