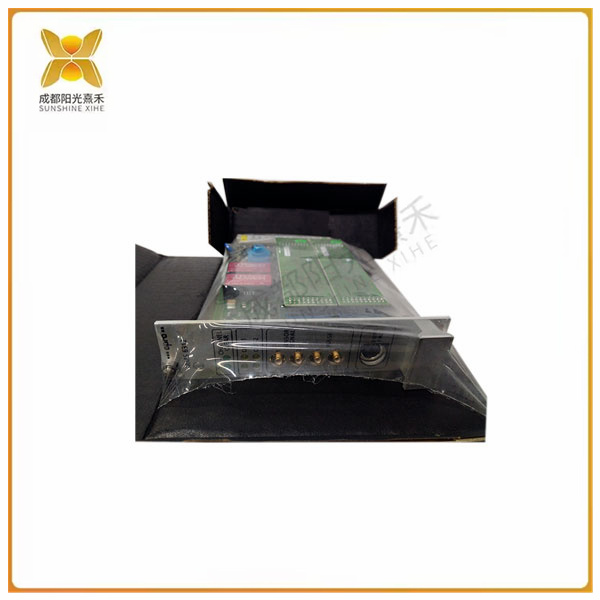

>>>>>型號:MMS6312 轉速監測模塊 信號輸出
【功能描述】
信號輸入
模塊有兩路獨立的傳感器信號輸入:SENS 1H（z8）/SENS 1L（z10）和SENS 2H（d8）/SENS 2L（d10）。與之匹配的傳感器既可以是渦流傳感器，如德國epro公司生產的PR6423+CON021，也可以是霍爾效應傳感器，如PR9376。輸入電壓范圍為0…-27.3 V dc。
模塊為傳感器提供兩路-26.75 V直流電源，見接線圖3-4：
SENS 1+（z6）/SENS 1-（b6）和SENS 2+（d6）/SENS 2-（b8）。
傳感器信號可以在模塊前面板上SMB接口處測到，所測信號為輸入信號x 0.15。
2.信號輸出
a.模塊有兩路TTL脈沖輸出，每個通道一路，電壓0…+5V。
脈沖的寬度和頻率與傳感器信號一致。該信號既可在后面端子（z14/z16）輸出，也可在前面板SMB接口“Pulse”處測得。
b.鍵相信號輸出
模塊有兩路鍵相信號輸出，每個通道一路，輸出電壓最大為24V。
鍵相信號可以由鍵相槽處測到，此時鍵相信號不僅表示轉速，還可以確定軸在轉動時的位置。這對分析診斷系統MMS6851尤為重要。
由轉速測量齒盤也可以得到鍵相信號，但該信號不具備確定軸的位置的功能。
鍵相信號輸出端子為（d14/b14）和（d16/b16），該輸出用于控制其它MMS6000模塊的采樣及控制。
?需要注意的是，在一路鍵相輸出上最多只能并接15個MMS6000模塊。
c.特征值輸出
模塊有兩路表示轉速的電流輸出0/4…20mA，每個通道一路，輸出端子為z18/b18 z20/b20。
>>>>>型號:MMS6312 轉速監測模塊 信號輸出
【英文介紹】
Signal input
The module has two independent sensor signal inputs :SENS 1H (z8) /SENS 1L (z10) and SENS 2H (d8) /SENS 2L (d10). The matching sensor can be either a vortex current sensor, such as the PR6423+CON021 produced by the German company epro, or a Hall effect sensor, such as the PR9376. Input voltage range is 0... -27.3 V dc.
The module provides two -26.75V DC power supplies for the sensor, see wiring diagram 3-4:
SENS 1+ (z6) /SENS 1- (b6) and SENS 2+ (d6) /SENS 2- (b8).
The sensor signal can be measured at the SMB interface on the front panel of the module, and the measured signal is the input signal x 0.15.
2. Signal output
a. The module has two TTL pulse outputs, one for each channel, and the voltage is 0... Plus 5V.
The width and frequency of the pulse are consistent with the sensor signal. The signal can be output at the rear terminal (z14/z16) or measured at the SMB interface Pulse on the front panel.
b. Key trust number output
The module has two key signal outputs, one for each channel, and the output voltage is up to 24V.
The key confidence sign can be measured from the key phase slot, where the key confidence sign not only indicates the speed, but also determines the position of the shaft as it rotates. This is particularly important for analyzing the diagnostic system MMS6851.
The key trust signal can also be obtained from the speed measuring gear disc, but the signal does not have the function of determining the position of the shaft.
The key signal output terminals are (d14/b14) and (d16/b16), which are used to control the sampling and control of other MMS6000 modules.
? It should be noted that a maximum of 15 MMS6000 modules can be connected on one key phase output.
c. Eigenvalue output
The module has two current outputs indicating the speed of the 0/4... The output terminal is z18/b18 z20/b20.
