【功能描述】

DS200DCFBG1BJB是通用電氣制造的電路板組件，是 Mark V Speedtronic 系統的一部分。DS200DCFBG1BJB用于為驅動器和機柜風扇提供控制級電源。該DS200DCFBG1BJB用于 EX2000 應用以及 DC2000、FC2000、GF2000、ME2000、CB2000 和 AC2000 IGBT 驅動應用。

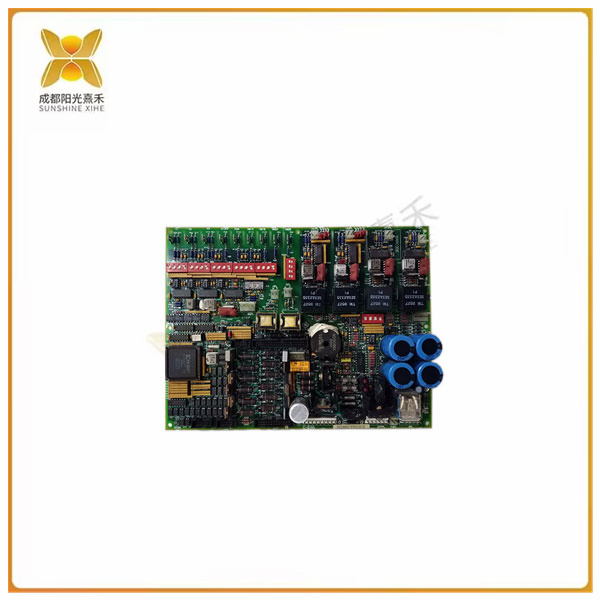

DS200DCFBG1BJB是一個大型矩形電路板，其表面安裝了大量組件。其中包括 7 個 4 位 DIP 開關器件和 12 個可配置跳線。六個 DIP 開關一起位于電路板的一側。這些用于縮放或更改許多不同的輸入。例如，4號開關（SW4）用于調節施加到VCO輸出橋電路的電壓。該板還有一個霓虹燈，用于指示 115 VAC 線路中的保險絲熔斷，以及兩個 LED 指示燈，用于指示 +24 VDC 線路和 -24 VDC 線路中的保險絲熔斷。

其他電路板組件包括測試點、I/O 連接器（1PL-1 至 1PL-40、2PL-1 至 2PL-9、4PL-1 至 4PL-5 和 5PL-1 至 5PL-26），以及保險絲、集成電路、電阻網絡和電阻器、電容器、晶體管、散熱器、變壓器和繼電器。該板上的測試點用于檢查電壓信號。保險絲用于保護。有關電路板組件及其用途的更多詳細信息，請參閱通用電氣提供的出版物，例如用戶指南和手冊。這些產品通常隨您最初購買時提供。

>>>>>型號:DS200DCFBG1BJB 電路板組件 提供控制級電源

【英文介紹】

The DS200DCFBG1BJB is a circuit board assembly manufactured by General Electric as part of the Mark V Speedtronic system. The DS200DCFBG1BJB is used to provide control level power to the drive and cabinet fans. The DS200DCFBG1BJB is used for EX2000 applications as well as DC2000, FC2000, GF2000, ME2000, CB2000 and AC2000 IGBT driver applications.

The DS200DCFBG1BJB is a large rectangular circuit board with a large number of components mounted on its surface. These include seven 4-bit DIP switching devices and 12 configurable jumpers. Six DIP switches are located together on one side of the board. These are used to scale or change many different inputs. For example, the No. 4 switch (SW4) is used to regulate the voltage applied to the VCO output bridge circuit. The board also has a neon sign to indicate a blown fuse in a 115 VAC line, and two LED indicators to indicate a blown fuse in a +24 VDC line and a -24 VDC line.

Other board components include test points, I/O connectors (1PL-1 to 1PL-40, 2PL-1 to 2PL-9, 4PL-1 to 4PL-5, and 5PL-1 to 5PL-26), As well as fuses, integrated circuits, resistance networks and resistors, capacitors, transistors, radiators, transformers and relays. A test point on the board is used to check the voltage signal. The fuse is used for protection. For more detailed information about board components and their uses, please refer to publications provided by GE, such as user guides and manuals. These products are usually provided with your initial purchase.
