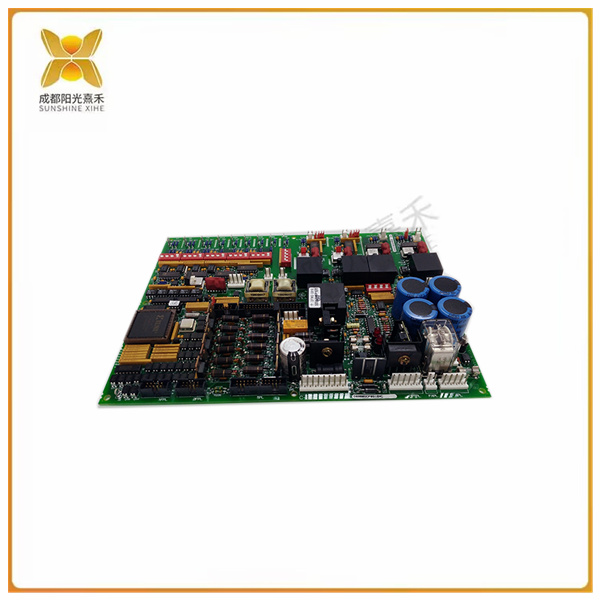

>>>>>型號:DS200DCFBG1BNC 替換和可選板制造的電源板

【功能描述】

該DS200DCFBG1BNC是為通用電氣的 Mark V 系列替換和可選板制造的電源板。DS200DCFBG1BNC電路板是 Speedtronic Mark V 控制系統的一部分。系統控制級電源以及機柜風扇由此卡供電。該卡與許多GE品牌的勵磁機和驅動器兼容，可以安裝在各種系統中。FC2000、AC2000、DC2000、ME2000 和 CB2000 系列的驅動器可以使用此板。饋入電路板的電壓可以安全地額定為 38 至 115 VAC。

DS200DCFBG1BNC包括圍繞電路板的五個電路。其中包括驅動器電路、控制級電源電路、電機現場電源電路以及交流和直流監控電路。為確保電路不中斷，板上的三個保險絲受到保護。如果有任何保險絲需要注意，集成的 LED 和霓虹燈指示燈會提醒用戶。監測電壓電平很重要，可以使用卡上的五個測試點之一來完成。用戶可使用 12 個跳線和 7 個 DIP 開關進行配置。

應滿足主板和驅動器隨附的安裝參數。遵循這些操作將確保DS200DCFBG1BNC和驅動器按預期運行。設備的手冊和數據表中提供了有關電路板接線和安裝板的圖解指南。

 >>>>>型號:DS200DCFBG1BNC 替換和可選板制造的電源板

【英文介紹】

The DS200DCFBG1BNC is a power board manufactured for General Electric's Mark V Series replacement and optional boards. The DS200DCFBG1BNC circuit board is part of the Speedtronic Mark V control system. The card supplies power to the system control power supply and the fan of the cabinet. The card is compatible with many GE branded exciters and drives and can be installed in a variety of systems. Drives in the FC2000, AC2000, DC2000, ME2000, and CB2000 series can use this board. The voltage fed into the board can be safely rated from 38 to 115 VAC.

The DS200DCFBG1BNC consists of five circuits surrounding the board. These include driver circuits, control level power circuits, motor field power circuits, and AC and DC monitoring circuits. To ensure that the circuit is not interrupted, the three fuses on the board are protected. Integrated LED and neon indicators alert users if there are any fuses that need attention. Monitoring voltage levels is important and can be done using one of the five test points on the card. The user can configure with 12 jumpers and 7 DIP switches.

The installation parameters included with the motherboard and driver should be met. Following these actions will ensure that the DS200DCFBG1BNC and the drive operate as expected. Illustrated instructions for circuit board wiring and mounting boards are provided in the equipment's manual and data sheet.
