>>>>>型號:DS200SIOBH1ABA 具有20個跳線和3個開關塊

【功能描述】

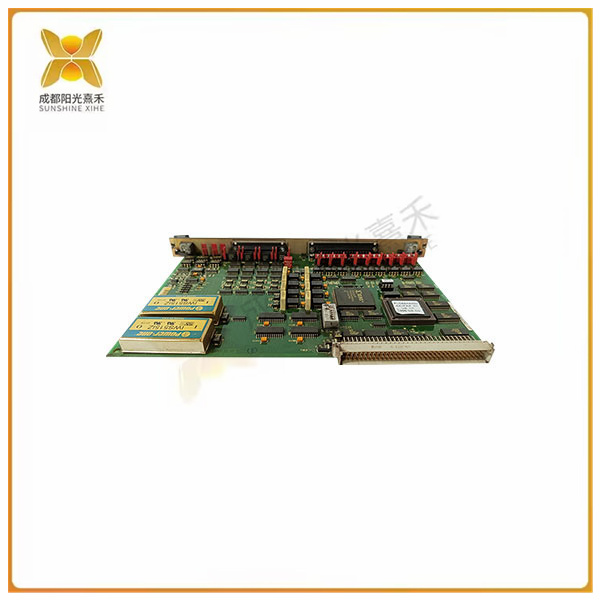

GE I/O控制板DS200SIOBH1ABA具有20個跳線和3個開關塊，每個塊中有6個開關，總共18個開關。它還裝有 1 個 LED 和 1 個 40 針連接器。 GE I/O控制板上的跳線DS200SIOBH1ABA原板上的跳線都帶有出廠默認設置的跳線。在安裝電路板之前，您可以查看印刷材料中的信息，以了解跳線的替代設置以及它們?nèi)绾胃淖冸娐钒宓牟僮?。有些跳線只有一個支撐位置，因此無法更改。

當您發現必須更換電路板時，最佳做法是將新電路板中的跳線設置為與舊電路板上的跳線位置相匹配。這樣，主板將起到相同的作用并支持驅動器性能。首先，卸下將舊板固定在板架中的螺釘，然后用兩只手從驅動器上卸下板。小心防止主板碰到驅動器中的其他組件。在附近找一個干凈干燥的表面，然后壓平一個靜電保護袋。將舊板放在袋子上。打開裝有更換板的密封保護袋，然后滑出板。用兩只手拿著它，把它放在舊板旁邊。設置開關以匹配舊板上的開關位置。

 >>>>>型號:DS200SIOBH1ABA 具有20個跳線和3個開關塊

【英文介紹】

The GE I/O control board DS200SIOBH1ABA has 20 jumpers and 3 switch blocks with 6 switches in each block for a total of 18 switches. It is also equipped with 1 LED and 1 40-pin connector. Jumpers on the GE I/O control board DS200SIOBH1ABA jumpers on the original board are equipped with the factory default Settings. Before installing the board, you can look at the information in the printed material to understand the alternative Settings of the jumpers and how they change the operation of the board. Some jumpers have only one support position and therefore cannot be changed.

When you find that a board must be replaced, the best practice is to set the jumpers in the new board to match the position of the jumpers on the old board. This way, the motherboard will play the same role and support the drive performance. First, remove the screws holding the old board to the board frame, and then remove the board from the drive with two hands. Take care to prevent the motherboard from touching other components in the drive. Find a clean, dry surface nearby and flatten a static protection bag. Place the old board on the bag. Open the sealed protective bag containing the replacement plate and slide out of the plate. Hold it in both hands and place it next to the old board. Set the switch to match the switch position on the old board.
