>>>>>型號:IC660BBD110 輸入模塊

【功能描述】

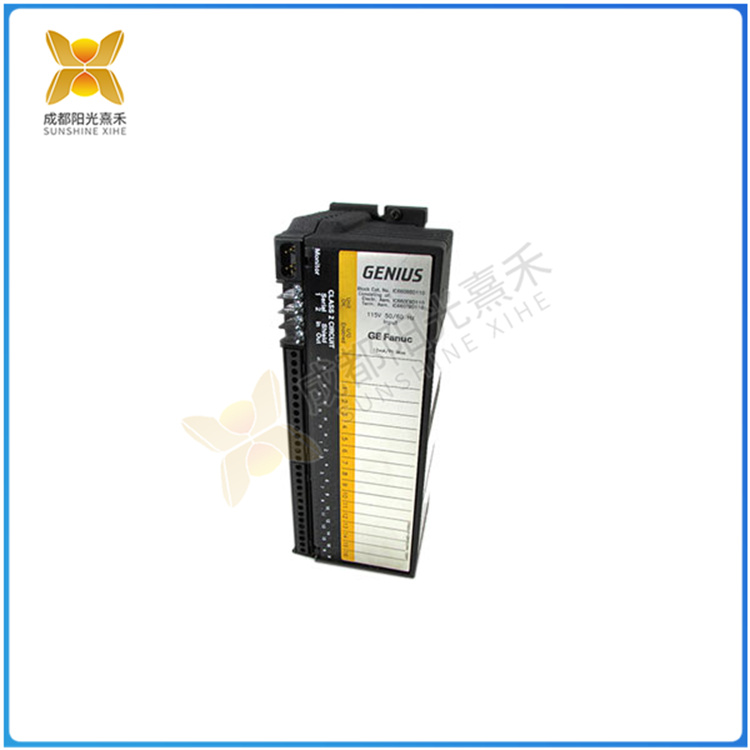

IC660BBD110是一款輸入模塊。

這款模塊具有多種功能和特點，使其在工業自動化和控制系統中具有廣泛的應用。

IC660BBD110支持右側向上或顛倒方向的安裝，為用戶提供了更大的安裝靈活性。其尺寸為8.83英寸（22.44厘米）x 3.34英寸

（8.48厘米）x 3.91英寸（9.93厘米），重量為4磅（1.8公斤）。這使得它適合在多種不同的空間和重量限制下使用。

該模塊帶有LED指示燈，如單元OK、I/O啟用和單獨輸入LED。這些指示燈可以方便用戶了解模塊的工作狀態和輸入狀態，

有助于故障診斷和模塊狀態的監控。

IC660BBD110從地到串行總線內部隔離了1500V，這增強了其電氣安全性，使其能夠在惡劣的電氣環境中穩定運行。

它通過一個3針終端連接到天才總線，這個終端位于模塊LED指示燈下方，可以通過打開鉸鏈門進行訪問。

這種連接方式使得模塊與總線之間的連接更加可靠和穩定。

>>>>>型號:IC660BBD110 輸入模塊

【英文介紹】

The IC660BBD110 is an input module.

This module has a variety of functions and features that make it suitable for a wide range of applications in

industrial automation and control systems.

The IC660BBD110 supports right-side up or upside-down installation, providing users with greater installation

flexibility. It measures 8.83 inches (22.44 cm) x 3.34 inches (8.48 cm) x 3.91 inches (9.93 cm) and weighs 4 pounds (1.8 kg).

This makes it suitable for use under many different space and weight restrictions.

The module comes with LED indicators such as unit OK, I/O enabled and separate input LED. These indicators facilitate

the user to know the working status and input status of the module, which is helpful for fault diagnosis and module status monitoring.

The IC660BBD110 isolates 1500V internally from the ground to the serial bus, which enhances its electrical safety and

enables it to operate stably in harsh electrical environments. It is connected to the Genius bus via a 3-pin terminal that

is located below the module LED indicator and can be accessed by opening the hinged door. This connection mode

makes the connection between the module and the bus more reliable and stable.
