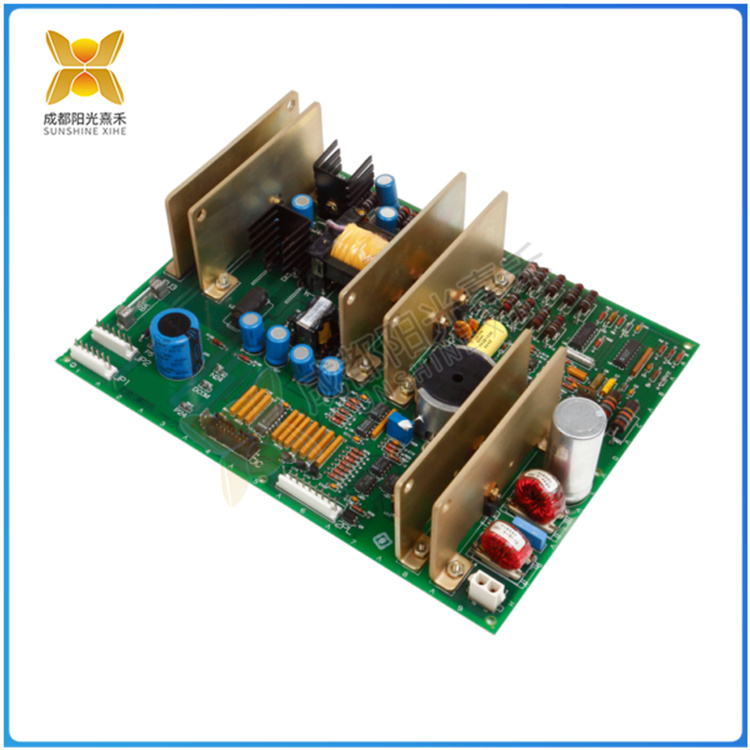

>>>>>型號:DS200FGPAG1A 門脈沖放大器板
【功能描述】
DS200FGPAG1A是一款門脈沖放大器板。
該板專為需要精確可靠的門脈沖放大的應用場合設計，旨在增強門脈沖信號的強度和質量，從而精確控制和監控工業系統。
DS200FGPAG1A具有三個主要功能：SCR狀態監控、開關電源和柵極驅動器。其中，柵極驅動器用于為SCR橋的一相提供柵極電源；開關電源功能則是將接收到的交流電壓轉換為門控和狀態功能所需的DC電壓；
而SCR狀態監控功能則是從連接的FHVAs積累電池電壓信息，并通過光學串行數據鏈路將信息傳遞給LCI控制器。
DS200FGPAG1A還具有內置于電路板中的柵極驅動器和狀態電路，以及15個光纖連接器。其輸入電壓范圍為90-260 VAC，工作頻率范圍為47-63 Hz。它還具有極性保護、電壓/頻率非正常范圍保護以及供
電故障保護等功能，確保在工業環境中穩定可靠地運行。
DS200FGPAG1A是一款功能強大、性能穩定的電子元件，廣泛應用于工業自動化控制系統中，對于提升系統的穩定性和控制精度具有重要作用。
>>>>>型號:DS200FGPAG1A 門脈沖放大器板
【英文介紹】
The DS200FGPAG1A is a gate pulse amplifier board.
Designed for applications that require accurate and reliable gate pulse amplification, the board is designed to enhance the strength and quality of the gate pulse signal for precise control and
monitoring of industrial systems.
The DS200FGPAG1A has three main functions: SCR status monitoring, switching power supply, and gate driver. The grid driver is used to provide grid power for a phase of the SCR bridge.
The switching power supply function is to convert the received AC voltage to the DC voltage required for gating and status functions. The SCR condition monitoring function accumulates
battery voltage information from the connected FHVAs and passes the information to the LCI controller via an optical serial data link.
The DS200FGPAG1A also features a gate driver and status circuit built into the circuit board, as well as 15 fiber optic connectors. The input voltage range is 90-260 VAC and the operating
frequency range is 47-63 Hz. It also features polarity protection, voltage/frequency out-of-range protection, and power supply fault protection to ensure stable and reliable operation in industrial environments.
DS200FGPAG1A is a powerful and stable electronic component that is widely used in industrial automation control systems and plays an important role in improving system stability and control accuracy.
