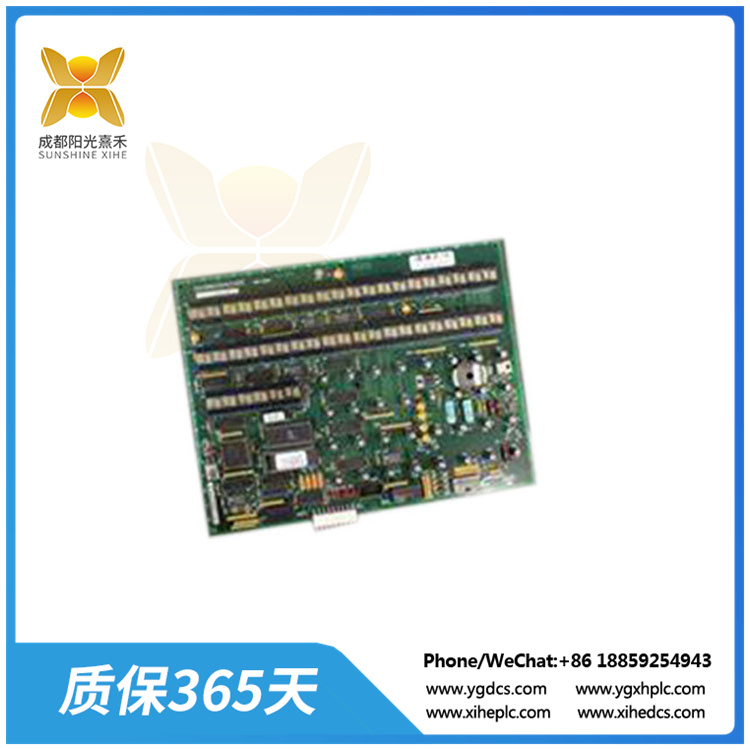

>>>>>型號:DS200UDSAG1ADE 模塊
【功能描述】
DS200UDSAG1ADE是一款適用于各種電氣系統、電鍍、電解行業中的交流大電流的測量和控制的模塊。
它采用了Rogowski原理，摒棄了傳統的互感器原理或霍爾原理中必須使用的磁芯，這使得產品的輸入范圍更大，而不影響產品的性能。此外，該模塊還具有以下顯著特點：
無飽和輸入：由于其特殊的Rogowski原理設計，產品的輸入范圍廣泛，可以滿足各種大電流的測量需求。
響應時間快：其響應時間可以達到微秒級別，使得它在電力系統中的故障錄波等方面具有出色的應用表現。
頻響寬：頻寬范圍可達20kHz以上，適用于輸入波形復雜等信號檢測。
線性好與精度高：輸出的線性度好，能夠準確反映輸入信號的大小，同時整體精度也保持在1%以內。
體積小、重量輕：相比傳統互感器原理和霍爾原理的產品，它在相同輸入量程的條件下，體積更小，重量更輕，便于安裝和攜帶。
從結構上看，DS200UDSAG1ADE模塊內部配備了一個180196微處理器和幾個可擦除可編程只讀存儲器（EPROM）模塊，以及21個4字符顯示器和32個LED。這種設計使得模塊在處理數據和顯示信息時更加高效和直觀。
在工作環境方面，該模塊對通風和清潔度要求較高。電路板和驅動器必須在通風良好的環境中工作，且周圍環境必須干凈，沒有灰塵、污垢和油污。這有助于確保模塊的穩定運行和延長使用壽命。
綜上所述，DS200UDSAG1ADE模塊憑借其出色的性能、廣泛的應用領域和便捷的使用特點，成為了電氣系統、電鍍、電解行業中的重要測量和控制工具。
>>>>>型號:DS200UDSAG1ADE 模塊
【英文介紹】
DS200UDSAG1ADE is a module suitable for the measurement and control of AC high current in various electrical systems, electroplating and electrolysis industries.
It adopts the Rogowski principle and abandons the magnetic core that must be used in the traditional transformer principle or Hall principle, which makes the input range of the product larger without affecting
the performance of the product. In addition, the module has the following notable features:
Non-saturated input: Thanks to its special Rogowski principle design, the product has a wide range of inputs to meet a variety of high current measurement needs.
Fast response time: its response time can reach the level of microseconds, which makes it have excellent application performance in the fault recording of power systems.
Frequency response width: the bandwidth range can reach more than 20kHz, which is suitable for signal detection such as complex input waveform.
Good linearity and high accuracy: the linearity of the output is good, which can accurately reflect the size of the input signal, and the overall accuracy is kept within 1%.
Small volume, light weight: Compared with the traditional transformer principle and Hall principle products, it is smaller in size and lighter in weight under the conditions of the same input range, easy to install and carry.
Structurally, the DS200UDSAG1ADE module is equipped with a 180196 microprocessor and several erasable programmable read-only memory (EPROM) modules, as well as 21 4-character displays and 32 leds. This design
makes the module more efficient and intuitive when processing data and displaying information.
In terms of working environment, the module has high requirements for ventilation and cleanliness. The circuit board and driver must work in a well-ventilated environment and the surrounding environment must be clean
and free of dust, dirt and oil. This helps ensure stable operation and extended service life of the module.
In summary, the DS200UDSAG1ADE module has become an important measurement and control tool in the electrical system, electroplating and electrolysis industries due to its excellent performance, wide range of applications and easy use.
