>>>>>型號:IC695PSA040 電源模塊
【功能描述】

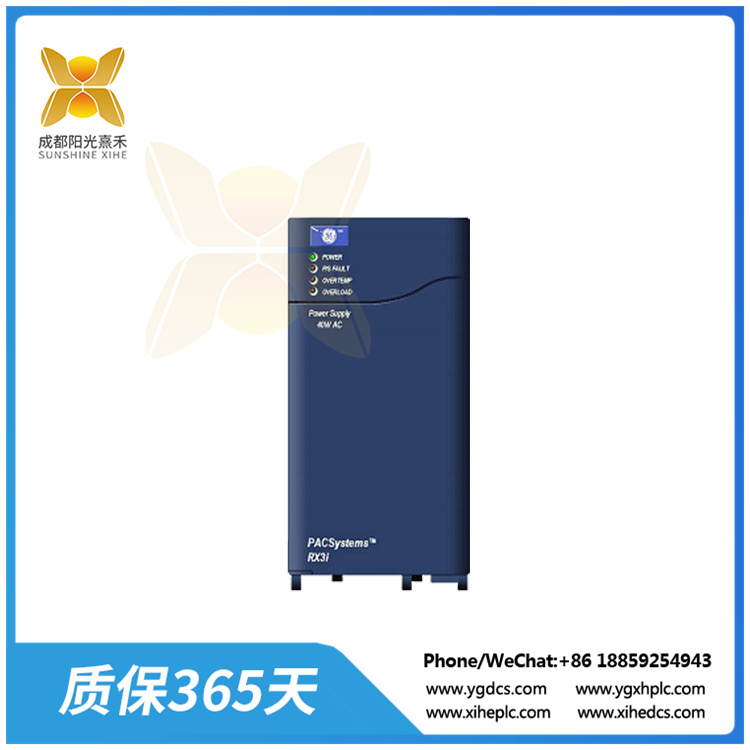

IC695PSA040是一款電源模塊。
該模塊可與交流或直流輸入電源配合使用，適用于120/240伏交流或125伏直流的電源環境，其工作電壓范圍為85~264伏交流電或100~300伏直流電。
IC695PSA040電源模塊是一個40瓦的電源，提供三個主要輸出：+3.3 VDC供具有IC695目錄號的RX3i模塊內部使用，+5.1伏直流電，以及+24 VDC繼電器，用于為輸出繼電器模塊上的電路供電。
這款電源模塊是專為PACSystem RX3i設計的，但在通用背板中一次只能安裝一個IC695PSA040電源，并且與其他RX3i電源不兼容，無論是在增加容量還是冗余模式下。此外，該電源模塊的輸入功率（滿載時最大）
為70瓦，具有250 VAC連續的隔離（背板輸入）能力，并且在1500伏交流電下能維持1分鐘的紋波/噪聲。
接線端子方面，每個端子接受一根14 AWG至22 AWG電線，每個端子的電流為6安培。在菊花鏈配置中，最多可以連接4個PSA040電源模塊。
總的來說，IC695PSA040是一個功能全面且靈活的電源模塊，能夠滿足PACSystem RX3i系統的各種電源需求。然而，由于其在背板中的安裝限制以及與其他RX3i電源的不兼容性，用戶在配置系統時需要特別注意。
同時，其高輸入功率和優秀的隔離能力也確保了電源的穩定性和安全性。
>>>>>型號:IC695PSA040 電源模塊
【英文介紹】
The IC695PSA040 is a power module.
The module can be used with AC or DC input power supplies, suitable for 120/240 volt AC or 125 volt DC power supply environments, and its operating voltage range is 85 to 264 volts AC or 100 to 300 volts DC.
The IC695PSA040 power module is a 40-watt power supply that provides three main outputs: +3.3 VDC for internal use in the RX3i module with the IC695 catalog number, +5.1 VDC, and +24 VDC relay for
powering the circuits on the output relay module.
The PSU is designed for the PACSystem RX3i, but only one IC695PSA040 power supply can be installed at a time in the universal backplane, and is not compatible with other RX3i power supplies, either in
increased capacity or redundancy mode. In addition, the PSU has an input power (maximum at full load) of 70 watts, a continuous isolation (backplane input) capability of 250 VAC, and maintains ripple/noise
for 1 minute at 1500 VAC AC.
For terminals, each terminal receives a 14 AWG to 22 AWG wire with a current of 6 amps per terminal. In the Daisy chain configuration, a maximum of four PSA040 power modules can be connected.
Overall, the IC695PSA040 is a fully functional and flexible power module that can meet the various power needs of PACSystem RX3i systems. However, due to its installation limitations in the backplane and incompatibility with other RX3i power supplies, users need to pay special attention when configuring the system. At the same time, its high input power and excellent isolation capability also ensure the stability and safety of the power supply.
