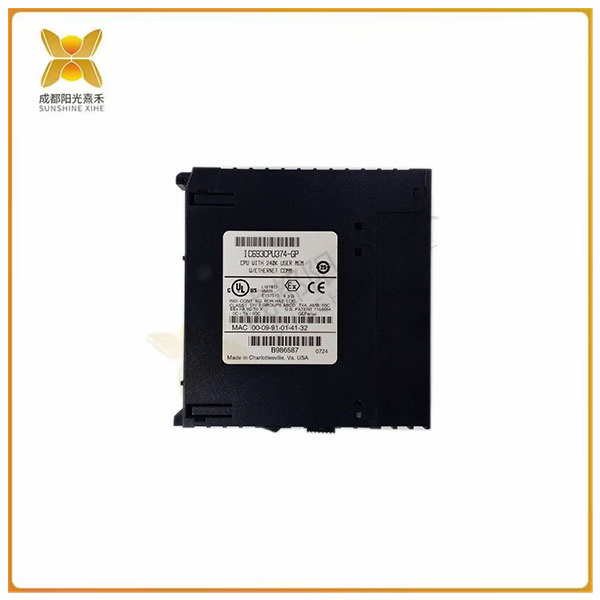

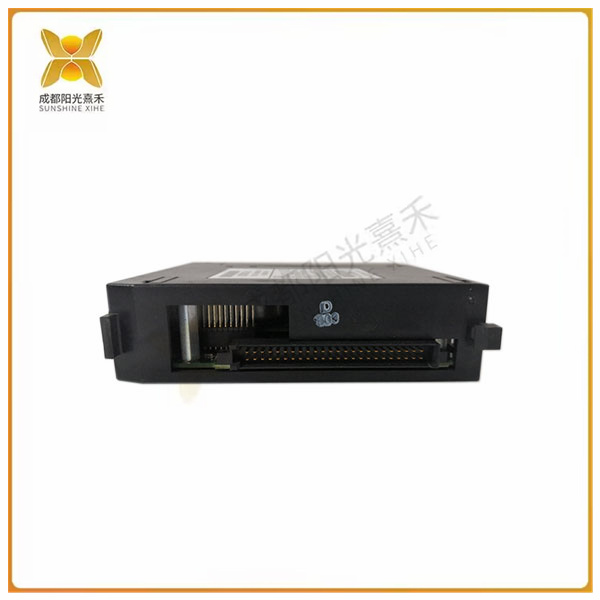

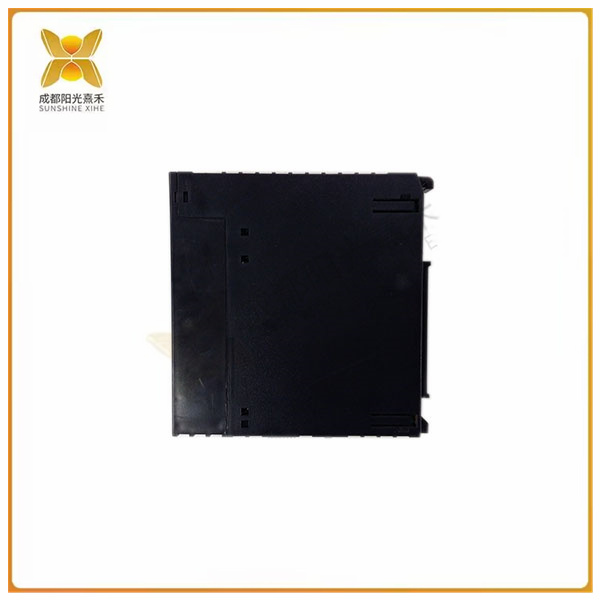

>>>>>型號:IC693CPU374 單插槽CPU模塊 嵌入了以太網接口
【功能描述】
產品信息
一般：GE Fanuc IC693CPU374是一款單插槽CPU模塊，處理器速度為133 MHz。該模塊嵌入了以太網接口。
內存：IC693CPU374使用的用戶內存總量為240 KB。與用戶程序存儲器相關的實際大小主要取決于配置的存儲器類型，例如寄存器存儲器（%R）、模擬輸入（%AI）和模擬輸出（%AO）。為每種內存類型配置的內存量為128到大約32,640個字。
功率：IC693CPU374所需的功率為7.4V直流電壓tage.它還支持供電時的RS-485端口
。當通過此端口供電時，此模塊支持協議SNP和SNPX。
操作：該模塊在0°C至60°C的環境溫度范圍內運行。儲存所需的溫度在-40°C至+85°C之間。
特點：IC693CPU374配備了兩個以太網端口，都具有自動感應功能。該模塊每個系統有八個底板，包括一個CPU底板。其余7個是擴展或遠程底板，與可編程通信協處理器兼容。
電池：IC693CPU374模塊的備用電池可以運行幾個月。內置電池可作為電源長達1.2個月，可選的外部電池可支持模塊長達12個月。
90-30系列IC693CPU374模塊是GE Fanuc制造的單插槽CPU（AMD SC250），帶有嵌入式以太網控制器。此CPU 374模塊配備240 KB用戶可配置內存、4K I/O和8個機架。嵌入式以太網控制器支持高達100 Mbps的通信速度，并配有內置交換機。它支持SRTP和以太網全局數據以及Modbus/TCP客戶端/服務器協議。此模塊中沒有串行端口。該處理器具有133 Mhz的速度，典型掃描速率為每1K邏輯0.15毫秒。它帶有用于存儲的RAM和閃存。IC693CPU374模塊的額定功率為7.4瓦，并提供5伏直流電壓。操作時，環境溫度應設置在0至60攝氏度之間。不使用時，它可以存放在-40到85攝氏度的溫度下。
GE Fanuc 90-30系列IC693CPU374模塊帶有2048個固定的離散輸入和輸出點。它具有1280位的離散全局存儲容量。該模塊的寄存器存儲器可配置為128至32640字。CPU中有28個固定系統寄存器，帶有定時器和計數器。CPU模塊由電池供電，為系統時鐘和RAM供電。IC693CPU374模塊配備一個CPU底板和7個擴展或遠程底板。CPU支持不同的編程語言，并且可以處理浮點數據?？梢允褂肰ersaPro或CIMPLICITY機器版邏輯軟件對其進行配置。
>>>>>型號:IC693CPU374 單插槽CPU模塊 嵌入了以太網接口
【英文介紹】
Product information
General: The GE Fanuc IC693CPU374 is a single-slot CPU module with a processor speed of 133 MHz. The module is embedded with an Ethernet interface.
Memory: The total user memory used by the IC693CPU374 is 240 KB. The actual size associated with the user program memory mainly depends on the type of memory configured, such as register memory (%R), analog input (%AI), and analog output (%AO). The amount of memory configured for each memory type ranges from 128 to approximately 32,640 words.
Power: IC693CPU374 requires a 7.4V DC voltage tage. It also supports an RS-485 port when powered. When powered through this port, this module supports protocols SNP and SNPX.
Operation: The module operates in an ambient temperature range of 0°C to 60°C. The temperature required for storage is between -40°C and +85°C.
Features: The IC693CPU374 is equipped with two Ethernet ports, both with automatic sensing function. The module has eight backboards per system, including a CPU backboard. The remaining seven are extended or remote backboards that are compatible with programmable communication coprocessors.
Battery: The backup battery of the IC693CPU374 module can run for several months. The built-in battery can be used as a power source for up to 1.2 months, and an optional external battery can support the module for up to 12 months.
The 90-30 Series IC693CPU374 module is a single socket CPU (AMD SC250) manufactured by GE Fanuc with an embedded Ethernet controller. This CPU 374 module comes with 240 KB of user-configurable memory, 4K I/O, and eight racks. The embedded Ethernet controller supports communication speeds of up to 100 Mbps and comes with a built-in switch. It supports SRTP and Ethernet global data as well as Modbus/TCP client/server protocols. There is no serial port in this module. The processor has a speed of 133 Mhz and a typical scan rate of 0.15 milliseconds per 1K of logic. It comes with RAM and flash memory for storage. The IC693CPU374 module is rated at 7.4 watts and provides 5 volts DC. When operating, the ambient temperature should be set between 0 and 60 degrees Celsius. When not in use, it can be stored at a temperature of -40 to 85 degrees Celsius.
The GE Fanuc 90-30 Series IC693CPU374 module comes with 2048 fixed discrete input and output points. It has a discrete global storage capacity of 1280 bits. The module's register memory can be configured from 128 to 32640 words. There are 28 fixed system registers in the CPU, with timers and counters. The CPU module is battery-powered, powering the system clock and RAM. The IC693CPU374 module is equipped with one CPU backboard and seven expansion or remote backboards. The CPU supports different programming languages and can handle floating-point data. It can be configured using the VersaPro or CIMPLICITY machine edition logic software.
