>>>>>型號:DS200DCFBG1BKC 電源板Mark V 控制級電源
【功能描述】

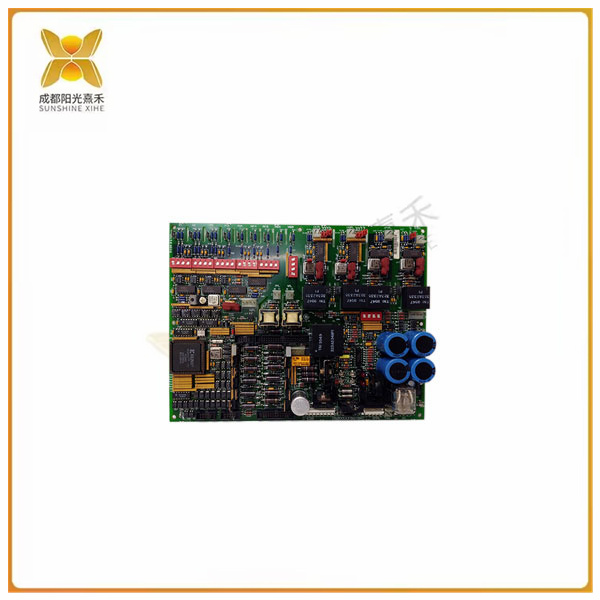

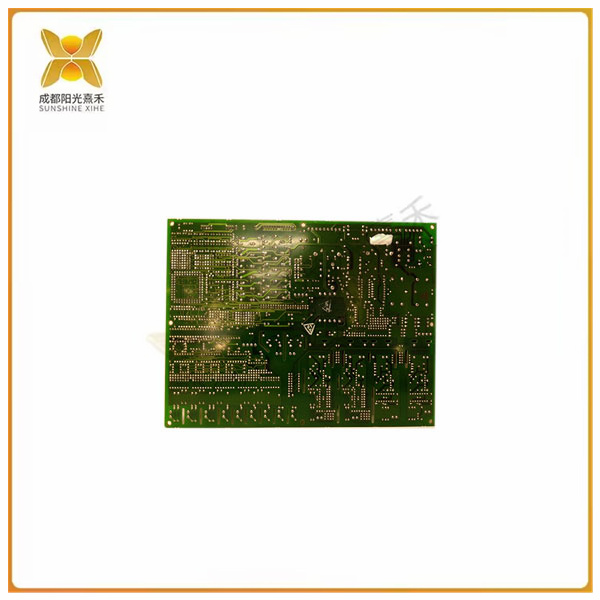

General Electric DS200DCFBG1BKC是一款Mark V系列電源板。當安裝在驅動器中時，該板為機柜風扇提供電力以及系統的控制級電源。在GE的變頻器系統中，該板與DC2000、AC2000、FC2000、CB2000和ME2000系列變頻器兼容。電路板的標稱額定源輸入可以安全地測量 38 至 115VAC 之間的電壓。該卡產生的輸出頻率可以測量 0 到 500 kHz 之間的任何頻率，具體取決于輸入電壓。
DS200DCFBG1BKC上有五個單獨的電路。其中包括控制級電源電路、驅動電路、電機勵磁電源電路以及交流和直流監控電路。驅動器上保險絲的診斷信息通過兩個 LED 指示燈和一個霓虹燈指示燈呈現給用戶。電路板中集成了三個保護保險絲，可保護電流免受中斷。當使用卡上的五個測試點之一時，檢查電路板中的電壓電平很簡單。為用戶提供了許多可配置的設置，以適應工作的特定需求。板上的 12 個跳線和 7 個 DIP 開關可根據用戶要求進行配置。
主板和驅動器包含通用電氣概述的安裝參數，應遵循這些參數。這些指南將保護整個設備免受任何意外損壞。 請參閱設備的數據表和手冊，以獲取接線和安裝電路板的完整指南。 Mark V 系列的成員由其原始制造商通用電氣提供技術支持。
>>>>>型號:DS200DCFBG1BKC 電源板Mark V 控制級電源
【英文介紹】
The General Electric DS200DCFBG1BKC is a Mark V series power supply board. When installed in the drive, the board provides power to the cabinet fans as well as the control level power to the system. In GE's inverter system, the board is compatible with the DC2000, AC2000, FC2000, CB2000 and ME2000 series drives. The board's nominal rated source input can safely measure voltages between 38 and 115VAC. The output frequency produced by the card can measure any frequency between 0 and 500 kHz, depending on the input voltage.
There are five separate circuits on the DS200DCFBG1BKC. These include control level power supply circuits, drive circuits, motor excitation power supply circuits, and AC and DC monitoring circuits. The diagnostic information of the fuse on the drive is presented to the user via two LED indicators and one neon indicator. Three protective fuses are integrated into the circuit board to protect the current from interruption. Checking the voltage level in the board is simple when using one of the five test points on the card. Users are provided with a number of configurable Settings to suit the specific needs of the job. The 12 jumpers and 7 DIP switches on the board can be configured according to user requirements.
Motherboards and drives contain installation parameters outlined by GE, which should be followed. These guidelines will protect the entire device from any accidental damage. Refer to your device's data sheet and manual for a complete guide to wiring and mounting your circuit board. The members of the Mark V Series are technically supported by their original manufacturer, General Electric.
