>>>>>型號:IS215ACLEH1A 基于微處理器的控制器 應用控制層模塊

【功能描述】

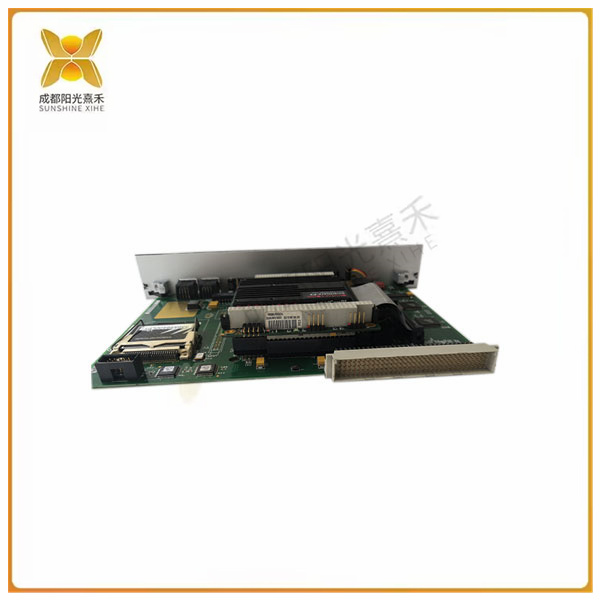

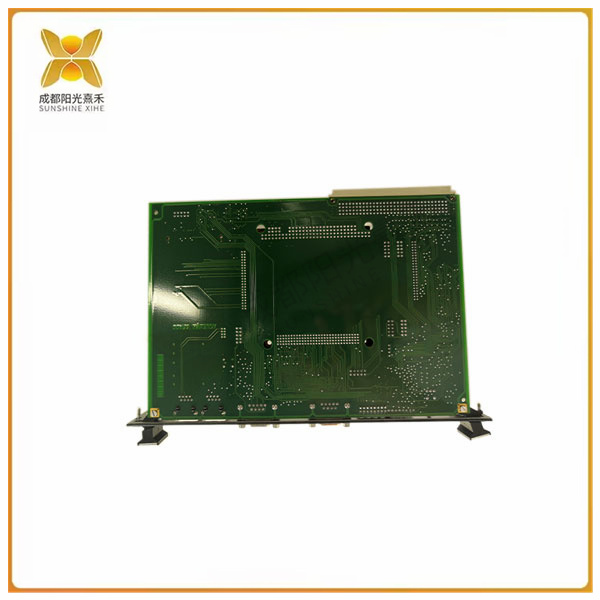

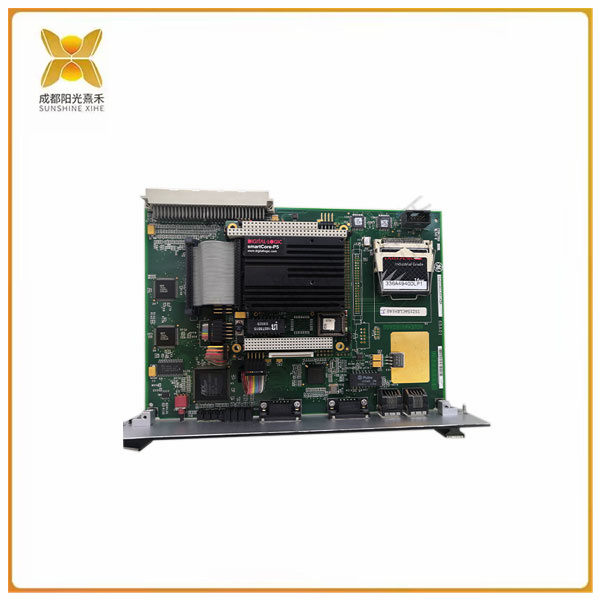

IS215ACLEH1A的主要功能是用作基于微處理器的控制器。 該型號是通用電氣工業系統公司生產的 EX2100 系列中一系列應用控制層模塊的一部分。該板是ACLE模塊中的第一個，該板配備了PCI（外圍組件互連）控制器和兩個以太網端口。

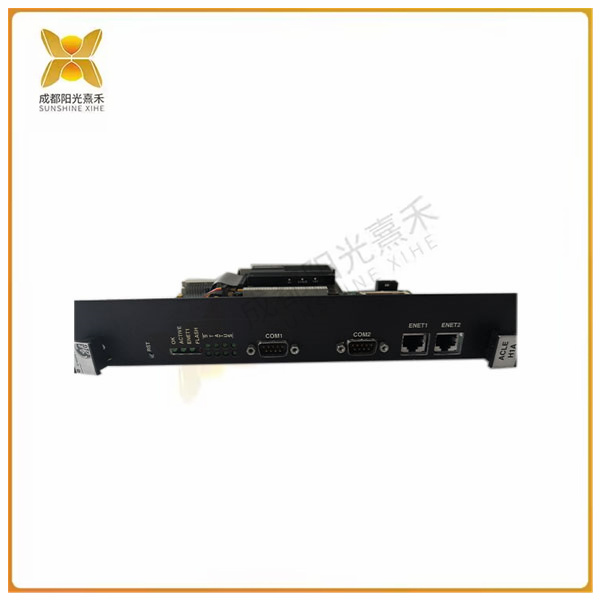

安裝IS215ACLEH1A型號時，它將安裝在創新系列驅動器或 EX2100 控制機架中。該板有幾個 LED，它們是 Active、OK、ENET、Status 和 Flash 指示燈，每個指示燈都有不同的功能，例如ample，當 CPU（中央處理器）訪問內存組件時，Active LED 將完全常亮。IS215ACLEH1A模型的軟件功能之一是基本輸入/輸出系統（BIOS），它將初始化和識別其他硬件形式。BIOS 功能支持操作系統的串行加載。

雖然 IS215ACLEH1A 模型目前大部分已經過時，但仍然可以找到。與IS215ACLEH1A型號一起使用的最佳手冊是 GEI-100434 應用控制層模塊 （ACL） 手冊。

 >>>>>型號:IS215ACLEH1A 基于微處理器的控制器 應用控制層模塊

【英文介紹】

The main function of the IS215ACLEH1A is as a microprocessor-based controller. This model is part of a series of application control layer modules in the EX2100 series produced by GE Industrial Systems. The board is the first in the ACLE module, which is equipped with a PCI (Peripheral Component Interconnection) controller and two Ethernet ports.

When installing the IS215ACLEH1A model, it will be installed in the Innovation Series drive or EX2100 control rack. The board has several leds, which are Active, OK, ENET, Status and Flash indicators, each with a different function, such as ample, where the Active LED will be fully on when the CPU (central processing unit) accesses the memory component. One of the software features of the IS215ACLEH1A model is the basic input/Output System (BIOS), which will initialize and recognize other hardware forms. The BIOS function supports serial loading of the operating system.

Although the IS215ACLEH1A model is currently largely obsolete, it can still be found. The best manual for use with the IS215ACLEH1A model is the GEI-100434 Application Control Layer Module (ACL) Manual.
