>>>>>型號:IS215UCVGH1A 電路板組件 有五個版本的 UCV 控制器
【功能描述】
IS215UCVGH1A是GE為Mark VI系統設計的帶有面板的電路板組件。MKVI 是通用電氣作為 Speedtronic 系列的一部分發布的蒸汽和燃氣輪機管理系統。 Speedtronic 系列始于 1969 年，一直持續到 1990 年代 Mark VI/Mark VIe 發布。
MKVI 有五個版本的 UCV 控制器。IS215UCVGH1A是控制器的單插槽版本。任何以前的控制器都可以直接由IS215UCVGH1A替換。如果主板更換了早期版本的控制器，則不需要升級背板。IS215UCVGH1A安裝到 VME 機架中。

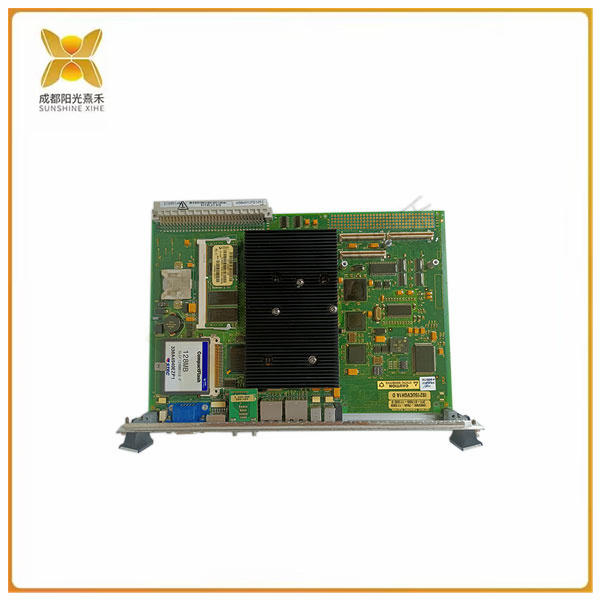

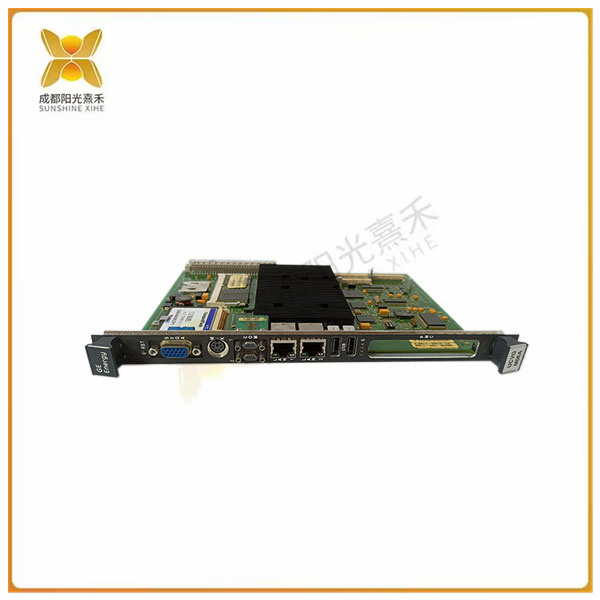

該IS215UCVGH1A采用英特爾的超低壓賽揚 650 處理器芯片。該芯片具有 128MB 的 SDRAM 和 128 MB 的閃存。該板有一個前面板。面板有一個復位開關，后跟一個 SVGA 監控端口。有一個鍵盤/鼠標端口和兩個 COM 端口（并排，標記為 1 和 2。該板有兩個以太網端口堆疊在一起。它們標記為 LAN1 和 LAN2。有兩個獨立的 USB 連接器、四個 LED 指示燈和一個面板開口。

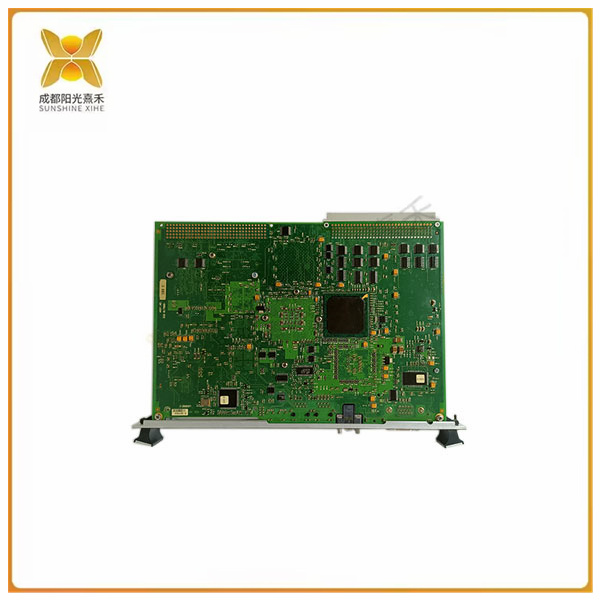

IS215UCVGH1A板由多個輔助板組成。有些地方有對峙，如果添加輔助設備，可以接受輔助設備。該板有一個背板。電路板表面有電容器、電感線圈、晶體振蕩器、振蕩芯片、跳線開關、集成電路等。
>>>>>型號:IS215UCVGH1A 電路板組件 有五個版本的 UCV 控制器
【英文介紹】
The IS215UCVGH1A is a circuit board assembly with a panel designed by GE for the Mark VI system. MKVI is a steam and gas turbine management system released by General Electric as part of the Speedtronic family. The Speedtronic series began in 1969 and continued until the release of Mark VI/Mark VIe in the 1990s.
The MKVI has five versions of the UCV controller. The IS215UCVGH1A is a single-slot version of the controller. Any previous controller can be replaced directly by the IS215UCVGH1A. If the motherboard has replaced an earlier version of the controller, there is no need to upgrade the backplane. IS215UCVGH1A Installed in the VME rack.
The IS215UCVGH1A uses Intel's ultra-low voltage Celeron 650 processor chip. The chip has 128MB of SDRAM and 128MB of flash memory. The board has a front panel. The panel has a reset switch followed by an SVGA monitoring port. There is a keyboard/mouse port and two COM ports (side by side, labeled 1 and 2. The board has two Ethernet ports stacked together. They are labeled LAN1 and LAN2. There are two separate USB connectors, four LED indicators, and a panel opening.
The IS215UCVGH1A board consists of a plurality of auxiliary boards. There are places where there are stand-offs, and if auxiliary devices are added, auxiliary devices can be accepted. The board has a backplane. The surface of the circuit board has capacitors, inductors, crystal oscillators, oscillating chips, jumper switches, integrated circuits, etc.
