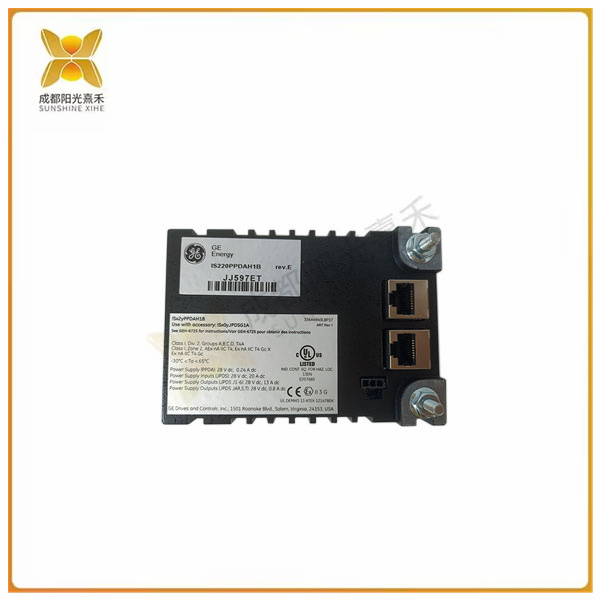

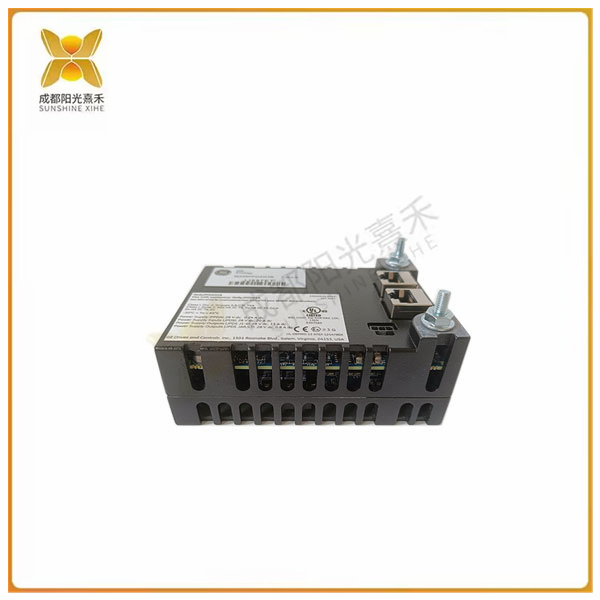

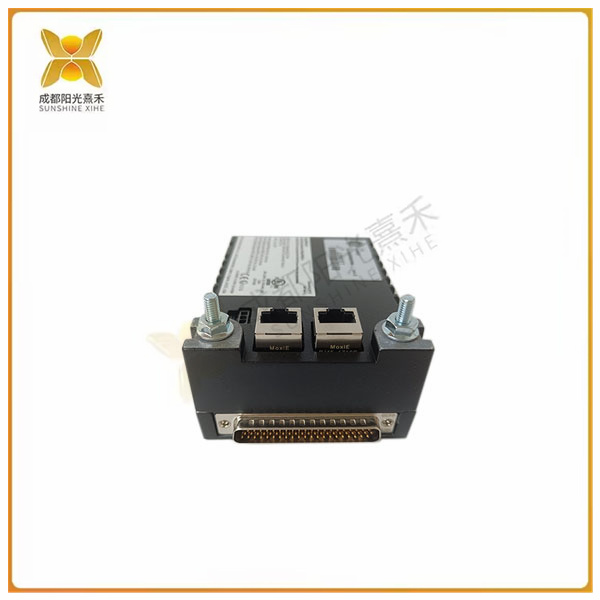

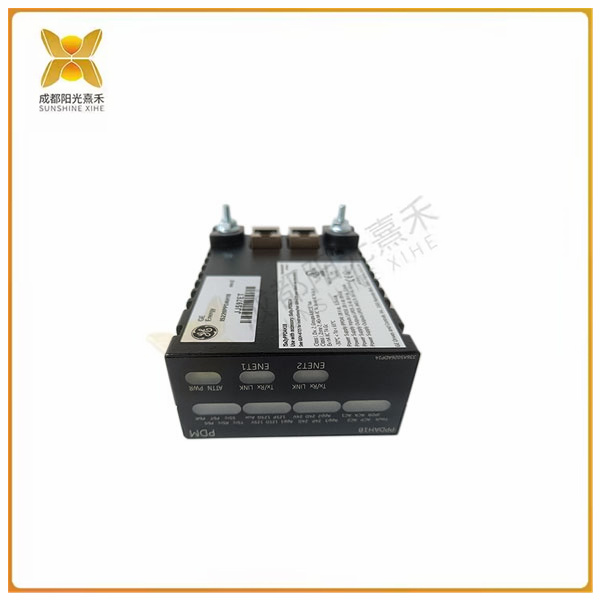

>>>>>型號:IS220PPDAH1B 配電系統反饋模型 調節電路板反饋信號
【功能描述】
IS220PPDAH1B板是通用電氣為Mark VIe系統制作的配電系統反饋模型。該型號用于調節電路板反饋信號，還可以為連接的控制器提供以太網接口。此電池組的反饋安排為即插即用，它將使用它插入的電子ID來確定所連接配電型號的功率。來自配電模型的信息將繼續用于占用IONet輸出，以提供來自連接的正確反饋。
雖然IS220PPDAH1B包與JPDC、JPDS、JPDM和JPDG電源板兼容，但它僅與來自JPDB、JPDF和JPDE板的反饋信號兼容。通常，此PPDA包安裝在以下板之一上;JPDM、JPDC或JPDS。通過使用50針帶狀電纜跳線通過引腳一對一連接器的接線，該電池組可以連接到更多電路板。
自動重新配置是IS220PPDAH1B包的主要操作組件之一。自動重新配置功能允許輕松更換I/O包，因為更換包無需重新配置。請注意，在進行自動重新配置時，用戶在重新配置完成之前將無法重新啟動。在重新配置過程中，無法進行其他需要進行的下載。
>>>>>型號:IS220PPDAH1B 配電系統反饋模型 調節電路板反饋信號
【英文介紹】
The IS220PPDAH1B board is a power distribution system feedback model developed by General Electric for the Mark VIe system. This model is used to regulate circuit board feedback signals and can also provide an Ethernet interface to the connected controller. The feedback arrangement of this battery pack is plug-and-play, and it will use the electronic ID it plugs in to determine the power of the connected distribution model. The information from the distribution model will continue to be used to occupy the IONet output to provide the correct feedback from the connection.
While the IS220PPDAH1B package is compatible with JPDC, JPDS, JPDM, and JPDG power boards, it is only compatible with feedback signals from JPDB, JPDF, and JPDE boards. Typically, this PPDA package is installed on one of the following boards; JPDM, JPDC, or JPDS. The battery pack can be connected to more circuit boards by wiring 50-pin ribbon cable jumpers through pin-to-pin connectors.
Automatic reconfiguration is one of the main operating components of the IS220PPDAH1B package. The automatic reconfiguration feature allows easy replacement of I/O packets, as replacement packets do not require reconfiguration. Note that when automatic reconfiguration is performed, the user will not be able to restart until the reconfiguration is complete. Other required downloads cannot be performed during the reconfiguration process.
