>>>>>型號:IS220PSVOH1A 伺服控制包 提供電氣接口

【功能描述】

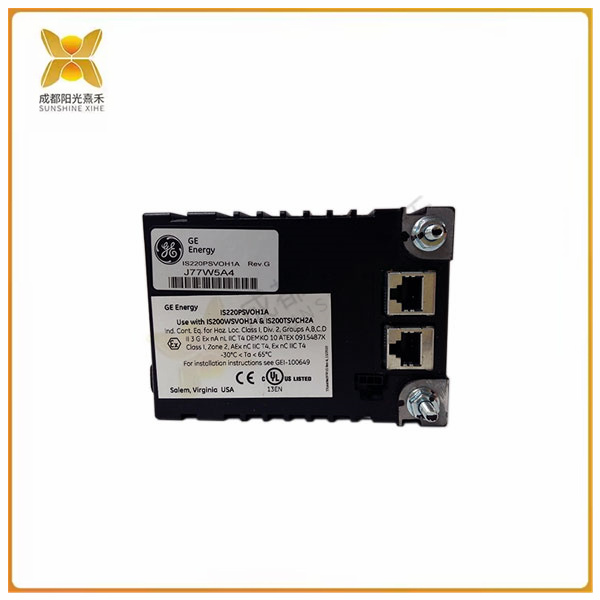

IS220PSVOH1A用作伺服控制包。該組件由 GE 為其 Mark VI 或 Mark VIe 系統制造。這兩種系統都用于控制蒸汽輪機和燃?xì)廨啓C(jī)系統。

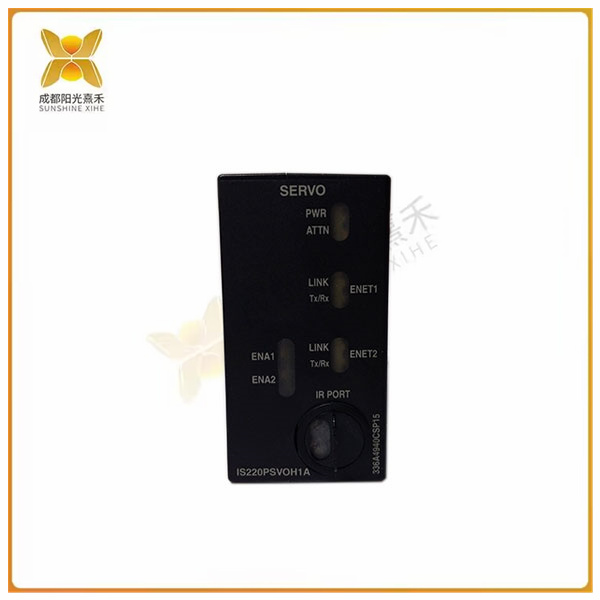

該IS220PSVOH1A在一個或兩個 I/O 以太網網絡和 TSVO 伺服端子板之間提供電氣接口。該IS220PSVOH1A使用 WSVO 伺服驅動器模塊來處理兩個伺服閥位置環。PSVO 有一個帶有多個 LED 指示燈的前面板。其中包括四個指示兩個以太網網絡 （ENet1/Enet2） 狀態的 LED，以及一個電源和收件人 LED，以及另外兩個標記為 ENA1/2 的 LED。正面還有一個紅外端口，此包裝中沒有使用。

安裝后，將使用 Control System Toolbox 應用程序配置該IS220PSVOH1A。該套件包括一個帶有輸入電源連接器的處理器板、本地電源和一個用于溫度監控的內部傳感器。該板還具有板載閃存和 RAM。該板連接到采集板。

更換IS220PSVOH1A時可以自動重新配置。此選項可通過 ToolboxST 應用程序通過組件編輯器啟用/禁用。組件編輯器還允許操作員根據需要手動重新配置模塊。更換端子板時，必須手動重新配置 I/O 包。

 >>>>>型號:IS220PSVOH1A 伺服控制包 提供電氣接口

【英文介紹】

IS220PSVOH1A is used as a servo control package. The component is manufactured by GE for its Mark VI or Mark VIe systems. Both systems are used to control steam turbine and gas turbine systems.

The IS220PSVOH1A provides an electrical interface between one or two I/O Ethernet networks and the TSVO servo terminal board. The IS220PSVOH1A uses the WSVO servo driver module to handle two servo valve position rings. The PSVO has a front panel with multiple LED indicators. These include four leds indicating the status of two Ethernet networks (ENet1/Enet2), as well as a power and recipient LED, and two more leds labeled ENA1/2. There is also an infrared port on the front that is not used in this package.

After installation, the IS220PSVOH1A is configured using the Control System Toolbox application. The kit includes a processor board with input power connectors, a local power supply, and an internal sensor for temperature monitoring. The board also has on-board flash memory and RAM. The board is connected to the acquisition board.

You can automatically reconfigure the IS220PSVOH1A when replacing the IS220PSVoH1A. This option can be enabled/disabled through the component editor through the ToolboxST application. The component editor also allows the operator to manually reconfigure the module as needed. When replacing a terminal board, you must manually reconfigure the I/O packet.
