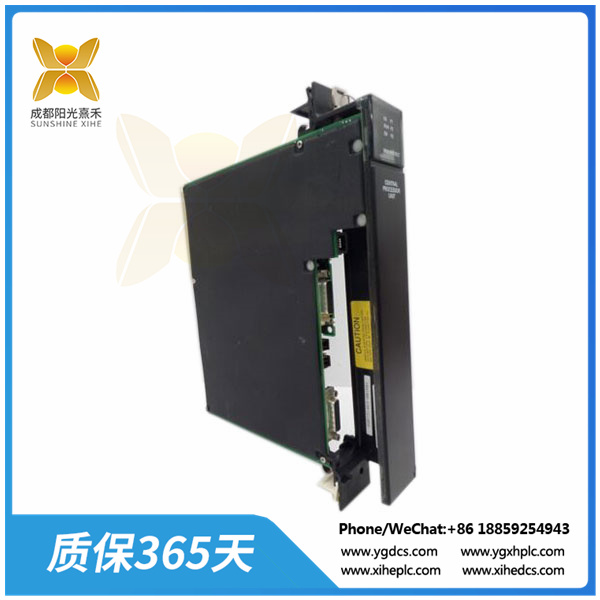

IC697CGR935 | 可編程邏輯控制器模塊 | 有一 (1) 個 RS232 串行接口
GEIC697CGR935 PLC模塊是一款高性能可編程邏輯控制器模塊，專為工業自動
化應用而設計。它提供先進的功能和可靠的性能，以確保您的控制系統平穩高效
的運行。
產品參數
型號:IC697CGR935
制造商:GE
兼容性:GE RX3i PACSystem
-供電方式:24vdc
通信方式:以太網、串口
IC697CGR935是艾默生自動化 90-70 系列(前身為 GE Fanuc)的熱備用 CPU。該控制器專為具有更高關鍵性且需要增加正常運行時間和可用性的應用而設計。此處理器與另一個IC697CGR935一起使用，以形成冗余或熱備用對。
熱備用或冗余是通過安裝一對IC697CGR935來實現的。一個被指定為主控制器，另一個被指定為輔助控制器。兩者都已通電并主動同步用戶邏輯。一旦主控制器發生故障，輔助控制器會自動接管，而無需為設備通電，因此，熱備用控制器一詞。使用一對控制器后，用戶可以體驗從一個 CPU 到另一個 CPU 的控制權的無縫轉移，而不會在此過程中出現明顯的中斷。
該處理器主要具有內置的 1 MB 快速存儲器和 I/O 存儲器，可容納任意組合的 12 K 離散輸入和 12 K 離散輸出以及高達 8K 的模擬 I/O 設備。它安裝了 96 MHz、80486DX4 微處理器，布爾執行速度為 0.4 微秒。它帶有一 (1) 個 RS232 串行接口;兩 (2) 個 RS485 接口。串行接口支持的所有協議僅是SNP從站。該控制器具有電池備份的 RAM，可兼容更換IC697ACC701鋰電池，該電池在 20 C (68 F) 下的保質期為 5 年，在不施加電源的情況下可保留 6 個月。
該IC697CGR935的電流消耗為 3.1 A，工作溫度要求為 0 至 60C(32F 至 140F)，帶強制空氣時為 0 至 50C(32F 至 122F)，不帶強制通風。
The GEIC697CGR935 PLC module is a high-performance programmable logic controller module designed for industrial automation
Designed for application. It offers advanced features and reliable performance to ensure your control system is smooth and efficient
The run of.
Product parameter
Model :IC697CGR935
Manufacturer :GE
Compatibility :GE RX3i PACSystem
- Power supply mode :24vdc
Communication mode: Ethernet, serial port
The IC697CGR935 is a hot standby CPU for the Emerson Automation 90-70 series (formerly GE Fanuc). The controller is designed for applications with higher criticality that require increased uptime and availability. This processor is used in conjunction with another IC697CGR935 to form a redundant or hot standby pair.
Hot standby or redundancy is achieved by installing a pair of IC697CGR935s. One is designated as the primary controller and the other as the secondary controller. Both are powered on and actively synchronize user logic. In the event of a primary controller failure, the secondary controller automatically takes over without powering the device, hence the term hot standby controller. With a pair of controllers, users can experience a seamless transfer of control from one CPU to another without significant interruptions in the process.
The processor features a built-in 1MB fast memory and I/O memory that can accommodate any combination of 12K discrete inputs and 12K discrete outputs as well as analog I/O devices up to 8K. It is equipped with a 96 MHz, 80486DX4 microprocessor and has a Boolean execution speed of 0.4 microseconds. It comes with one (1) RS232 serial interface; Two (2) RS485 ports. All protocols supported by the serial interface are SNP slaves only. The controller has RAM for battery backup and is compatible with replacement of the IC697ACC701 lithium battery, which has a shelf life of 5 years at 20 C (68 F) and can be retained for 6 months without power being applied.
The IC697CGR935 has A current consumption of 3.1 A and an operating temperature requirement of 0 to 60C (32F to 140F) and 0 to 50C (32F to 122F) with forced air, without forced ventilation.
