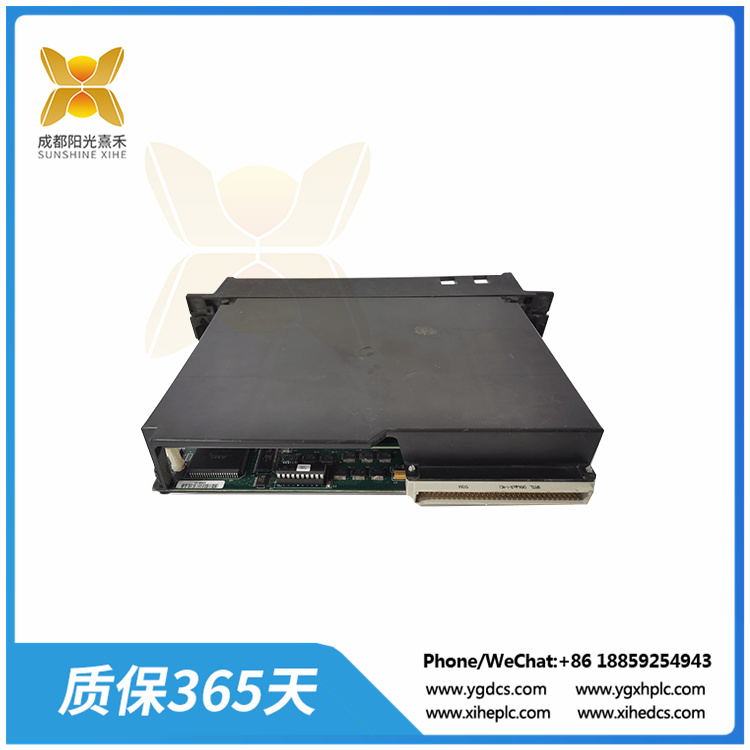

IC697HSC700RR | 高速計數器 (HSC) 模塊 | 具有一個外部振蕩器
系列： 90-70系列
零件編號： IC697HSC700
產品描述 ：高速計數器 (HSC) 模塊
十二 (12)： 個單端/差分輸入 十二 (12) 個正邏輯輸入
產品類型 ：高速計數器
輸入頻率 ：200 kHz，A型，D型和E型，上/下四路模式; 800 kHz(E型，Quad B模式)
該IC697HSC700是專為GE Fanuc創建的90-70系列設計的高速計數器(HSC)模塊。 高速計數器模塊的特性包括一個插槽、五種可選計數器類型、12 個單端或差分輸入、TTL、非 TTL 和磁拾音輸入閾值，以及 4 個帶 LED 指示狀態的正邏輯輸出。該模塊還具有一個外部振蕩器和內置 +5 VDC 輸出。配置通過 MS-DOS 或 Windows over Ethernet TCP/IP 或 SNP 端口完成。編程設備上已經安裝了配置功能，可以是兼容的 PC。
IC697HSC700模塊直接處理快速脈沖信號(在 A Quad B 模式下，E 型最高可達 200 KHz，最高可達 800 KHz)。功能包括檢測輸入、處理輸入計數數據和控制輸出的能力，而無需與 PLC CPU 通信。該模塊具有簡單易用的 PLC 接口，非常適合工業應用，包括渦輪流量計、儀表驗證、速度測量、物料搬運和運動/過程控制。
IS230TBAIH2C GE 電路控制器
IS230TNCIH4C GE 印刷電路板 測量精度
IS420ESWBH3A GE 太網IONet交換機
IS420UCSBH1A GE 控制器模塊 單模塊
IS420UCSBH4A GE 控制器模塊
IS420UCSCH2A GE 模擬量輸入模塊
Series: 90-70 series
Part number: IC697HSC700
Product Description: High Speed Counter (HSC) module
Twelve (12) : Single ended/differential inputs Twelve (12) positive logic inputs
Product Type: High-speed counter
Input frequency: 200 kHz, Type A, type D and type E, up/down four-way mode; 800 kHz (E type, Quad B mode)
The IC697HSC700 is a high-speed counter (HSC) module designed specifically for the 90-70 series created by GE Fanuc. The high-speed counter module features a slot, five selectable counter types, 12 single-ended or differential inputs, TTL, non-TTL, and magnetic pickup input thresholds, and four positive logic outputs with LED status indicators. The module also has an external oscillator and built-in +5 VDC output. The configuration is done using MS-DOS or Windows over Ethernet TCP/IP or SNP ports. The configuration function is already installed on the programming device, which can be a compatible PC.
The IC697HSC700 module directly processes fast pulse signals (up to 200 KHz for Type E and up to 800 KHz in A Quad B mode). Features include the ability to detect inputs, process input count data, and control outputs without the need to communicate with the PLC CPU. With an easy-to-use PLC interface, the module is ideal for industrial applications including turbine flow meters, instrument validation, speed measurement, material handling and motion/process control.
