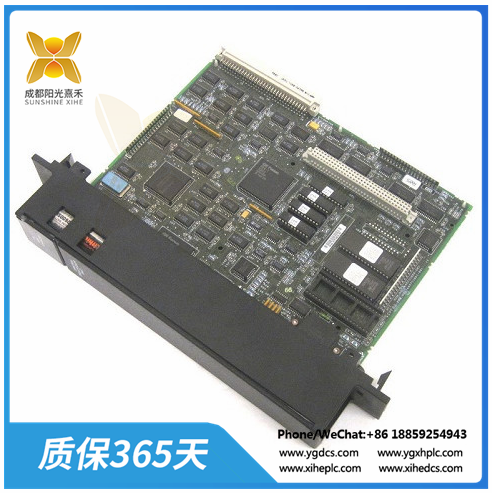

IC693CPU364 | 90-30 系列產品 控制器模塊
產品參數:
型號：IC693CPU364
輸入電壓:24VDC
工作溫度:-40°℃~+85°℃
通信接口:以太網，RS-232
內存容量:256MB
規格:
支持多種編程語言
緊湊的設計，易于集成
高速數據處理
內置診斷系統監控
IC693CPU364是 90-30 系列產品系列中的控制器模塊。該控制器由 GE Fanuc 自動化制造，具有一 (1) 個以太網接口、240KB 用戶內存、80386EX 處理器，處理器速度為 25 MHz，布爾觸點的典型掃描速率為每 1K 邏輯 0.22 毫秒。
該控制器支持多達 2,048 個離散輸入、2,048 個離散輸出、多達 1,280 位內部離散全局存儲器、4096 個內部線圈、256 位臨時輸出線圈、可配置模擬輸入，使用 Logicmaster 軟件以 128 字為增量，從 128 字增加到 16,384 字，使用 Control 版本 2.2 從 128 字增加到 32,640 字，模擬輸出可使用 Logicmaster 編程軟件以 128 字的增量從 128 字配置到 16,384 字和 128使用 Control 版本 2.2 時，增加到 32,640 字。
Product parameters:
Model: IC693CPU364
Input voltage :24VDC
Operating temperature :-40° C ~+85° C
Communication interface: Ethernet, RS-232
Memory capacity :256MB
Specifications:
Multiple programming languages are supported
Compact design for easy integration
High speed data processing
Built-in diagnostic system monitoring
The IC693CPU364 is a controller module in the 90-30 series product family. Manufactured by GE Fanuc Automation, the controller features one (1) Ethernet interface, 240KB of user memory, an 80386EX processor with a processor speed of 25 MHz and a typical sweep rate of 0.22 ms per 1K logic for Boolean contacts.
The controller supports up to 2,048 discrete inputs, 2,048 discrete outputs, up to 1,280 bits of internal discrete global memory, 4096 internal coils, 256-bit temporary output coils, configurable analog inputs in 128-word increments using Logicmaster software. Increased from 128 words to 16,384 words, using Control version 2.2 increased from 128 words to 32,640 words, Analog output can be configured in 128-word increments from 128 words to 16,384 words using Logicmaster programming software and increased to 32,640 words when 128 is used with Control version 2.2.
