>>>>>型號:IS200DSPXH1DBC 數字信號處理器 專用集成電路

【功能描述】

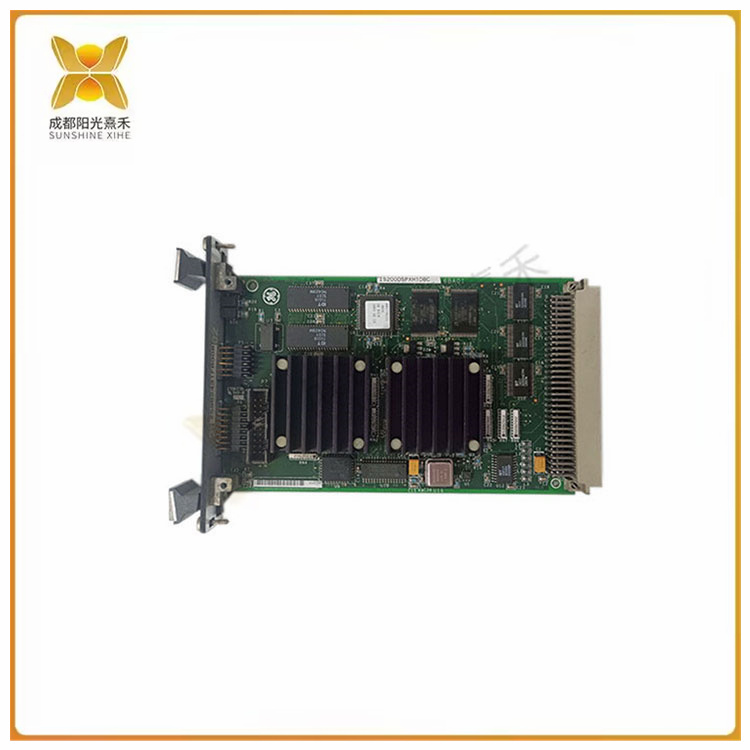

該IS200DSPXH1DBC包括一個60 MHz數字信號處理器、一個專用集成電路（ASIC）和標準存儲器組件。ASIC提供自定義邏輯功能，并連接到嵌入在連接到電路板的前面板中的兩個LED。這些LED（一個紅色和一個綠色）有助于報警板故障，并分別標記為“狀態”和“故障”。

IS200DSPXH1DBC具有多個I/O連接器。這包括一個背板連接器（P1）和一個位于電路板正面附近的垂直引腳連接器（P7）。此外，主板面板上還安裝了兩個連接器，由值得信賴的零售商ERNI制造。它們用作工程監控端口（P6）和DSP仿真器端口（P5）。

在安裝此數字信號處理器控制板之前，請務必驗證此印刷電路板的尺寸是否與其安裝支架或組裝區域的尺寸相對應。這個特殊的GE Industrial Systems型號的實際印刷電路板長度約為8.5英寸，寬度約為5英寸。雖然這是真的，但制造商標記為259B2431FBG08的該控制板的外面板確實增加了PCB的寬度;使該產品的總寬度間隙約為7英寸。上述面板也大大增加了IS200DSPXH1DBC的一般厚度，總厚度增加到約一英寸。這是一種對靜電敏感的設備，在安裝和存放過程中應始終格外小心。

雖然DSPX的硬件規格和尺寸仍然很重要，特別是在安裝目的方面，但重要的是要考慮GE工業系統PCB的這種特定型號中存在的一些處理能力。該產品DSPX由專為數字信號處理而設計的高速60Mhz電路芯片提供支持。這個芯片很強大;提供248 kB靜態高速RAM和512 kB閃存BIOS。當與GE Industrial Systems ACLA控制器配對時，IS200DSPXH1DBC功能。

有關IS200DSPXH1DBC正確安裝或處理程序的其他信息，請參閱GE Industrial Systems提供的數據表、手冊或用戶指南;有些可通過我們上面的“手冊”選項卡在線獲得。為方便起見，上面還附上了IS200型號的有用部件號細分指南，以方便您使用。

 >>>>>型號:IS200DSPXH1DBC 數字信號處理器 專用集成電路

【英文介紹】

The IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel connected to the circuit board. These leds (one red and one green) help alert the board to failure and are labeled "status" and "fault," respectively.

The IS200DSPXH1DBC has multiple I/O connectors. This includes a backplane connector (P1) and a vertical pin connector (P7) located near the front of the board. In addition, two connectors are installed on the motherboard panel, manufactured by trusted retailer ERNI. They are used as engineering monitoring ports (P6) and DSP emulator ports (P5).

Before installing this digital signal processor control board, be sure to verify that the size of this printed circuit board corresponds to the size of its mounting bracket or assembly area. The actual printed circuit board for this particular GE Industrial Systems model is about 8.5 inches long and about 5 inches wide. While this is true, the outer plate of this control board, labeled 259B2431FBG08 by the manufacturer, does increase the width of the PCB; Make the total width gap of the product approximately 7 inches. The above panel also greatly increases the general thickness of the IS200DSPXH1DBC, increasing the total thickness to about one inch. This is a static-sensitive device and should always be used with extreme care during installation and storage.

While the hardware specifications and dimensions of the DSPX are still important, especially for installation purposes, it is important to consider some of the processing power present in this particular model of GE industrial system PCB. The product, DSPX, is powered by a high-speed 60Mhz circuit chip designed for digital signal processing. This chip is powerful; Provides 248 kB static high-speed RAM and 512 kB flash BIOS. IS200DSPXH1DBC function when paired with a GE Industrial Systems ACLA controller.

For additional information on the proper installation or handling of the IS200DSPXH1DBC, please refer to the data sheets, manuals, or user guides provided by GE Industrial Systems. Some are available online through our "Manuals" TAB above. For your convenience, a useful Part number breakdown guide for IS200 models is also attached above for your convenience.
