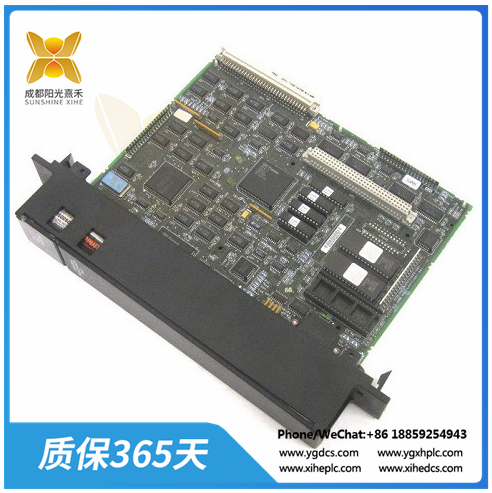

IC697CPU782 | 可編程邏輯控制器 （PLC） 支持單工 CPU 配置
型號：IC697CPU782
模塊類型： 可擴展的浮點 CPU
插槽數量： 1 (單插槽)
所需電流： 1.6 安培
點數： 12K 輸入和輸出(任意混音)
支持： IC660/IC661 I/O 和 IC697 I/O
IC697CPU782是 90-70 系列可編程邏輯控制器 (PLC)。該處理器模塊支持單工 CPU 配置，主要功能包括 80386DX 微處理器類型，處理速度為 16 MHz，每個功能的布爾執行速度為 0.4 微秒。IC697CPU782 I/O 容量包括支持高達 12 KB 的離散輸入和輸出以及 8KB 的模擬輸入和輸出數據。它還支持安裝 512 KB 的擴展存儲器以及可配置的數據和程序存儲器。該模塊還提供按鍵開關存儲器保護，可防止對模塊進行不必要的訪問和修改。該IC697CPU782使用基于 Windows 的編程軟件包的 MS-DOS 進行編程，特別是 Logicmaster 90-70、VersaPro 專業版和 Proficy Machine Edition Logic Developer PLC 專業版。該 CPU 支持浮動計算、比較、中斷和軟件內部控制器，例如比例 + 積分 + 微分 (PID) 控制器。
它可以通過機架安裝背板(IC697CHS750、782、783、790、791)與 I/O 和智能選件模塊一起使用，通過模塊的 VME C.1 標準格式兼容性。此外，控制器可以安裝和使用的可選模塊包括 IC697 LAN 接口模塊、多個協處理器模塊、用于 IC660/IC661 I/O 的總線控制器、通信模塊以及所有 IC697 系列的分立和模擬 I/O 模塊。IC697CPU782利用鋰電池來保留RAM內存的內容。該電池的目錄號為 IC697ACC701，保質期為 10 年，能夠在不向控制器施加主電源的情況下保持長達 6 個月的內存。
Model: IC697CPU782
Module type: scalable floating-point CPU
Number of slots: 1 (single slot)
Required current: 1.6 amps
Points: 12K input and output (any mix)
Support: IC660/IC661 I/O and IC697 I/O
The IC697CPU782 is a 90-70 series programmable logic controller (PLC). The processor module supports a simplex CPU configuration and the main features include the 80386DX microprocessor type with a processing speed of 16 MHz and a Boolean execution speed of 0.4 microseconds per function. The IC697CPU782 I/O capacity includes support for up to 12 KB of discrete input and output and 8KB of analog input and output data. It also supports the installation of 512 KB of extended memory as well as configurable data and program memory. The module also provides key switch memory protection to prevent unnecessary access to and modification of the module. The IC697CPU782 is programmed using MS-DOS, a Windows-based programming package. In particular, Logicmaster 90-70, VersaPro Pro and Proficy Machine Edition Logic Developer PLC Pro. The CPU supports floating computation, comparison, interrupt, and software internal controllers, such as proportional + Integral + differential (PID) controllers.
It can be used with I/O and smart option modules via rack-mounted backplanes (IC697CHS750, 782, 783, 790, 791), compatible via the module's VME C.1 standard format. In addition, optional modules that the controller can install and use include the IC697 LAN interface module, multiple coprocessor modules, bus controllers for IC660/IC661 I/O, communication modules, and discrete and analog I/O modules for all IC697 series. The IC697CPU782 utilizes a lithium battery to retain the contents of RAM memory. The battery, catalog number IC697ACC701, has a shelf life of 10 years and is capable of holding memory for up to six months without applying main power to the controller.
