>>>>>型號:IS200SRTDH2ACB 印刷電路板或PCB 具有尺寸不等的電子元件
【功能描述】
IS200SRTDH2ACB是由通用電氣或GE創建的一種印刷電路板或PCB，是Mark VI系列的一部分。Mark VI是通用電氣Mark系列的最新版本。Mark VI和Mark系列中的其他系列旨在管理和自動化燃?xì)廨啓C(jī)和蒸汽輪機系統的過程。這些產品被用于全球許多不同的行業。

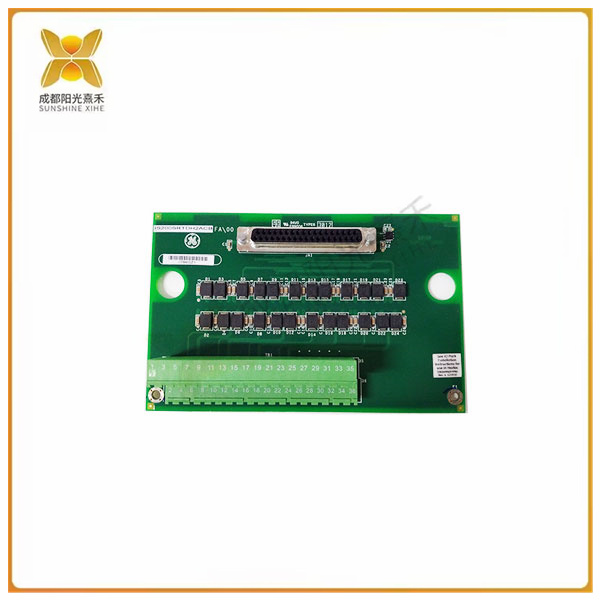

IS200SRTDH2ACB是一種相對較小的印刷電路板，具有尺寸不等的電子元件。兩（2）個大型接線端子位于IS200SRTDH2ACB的底部邊緣，一個位于另一個的頂部。每個接線端子包含十八（18）個端子，總共三十六（3）個端子。這些銀色金屬端子包含在接線端子內，編號從一（1）到三十六（36）個，帶有白色文字。一（1）個大連接器端口連接到IS200SRTDH2ACB的上邊界。此連接器端口用于將額外的組件或其他板連接到IS200SRTDH2ACB。IS200SRTDH2ACB的中心由二極管和電容器組成。二極管的形狀像黑色矩形。有二十四個二極管，分為兩（2）個水平行，每個十二（12）個二極管。每個二極管旁邊是一（1）個或兩（2）個矩形小電容器。IS200SRTDH2ACB設備的全名已印在IS200SRTDH2ACB的左上角。GE的符號已印在該部件號下方的電路板上。
>>>>>型號:IS200SRTDH2ACB 印刷電路板或PCB 具有尺寸不等的電子元件
【英文介紹】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
