>>>>>型號:IS200TPROS1CBB 保護終端板的裝置 印刷電路板

【功能描述】

通用電氣將IS200TPROS1CBB創建為Speedtronic Mark VI系列的一個組件。該系列是GE的Mark系列之一。IS200TPROS1CBB是一種稱為保護終端板的裝置。自1969年在新澤西州首次亮相Mark I以來，通用電氣的Mark系列已用于燃?xì)廨啓C(jī)和蒸汽輪機的管理和自動化，已有幾十年的歷史。

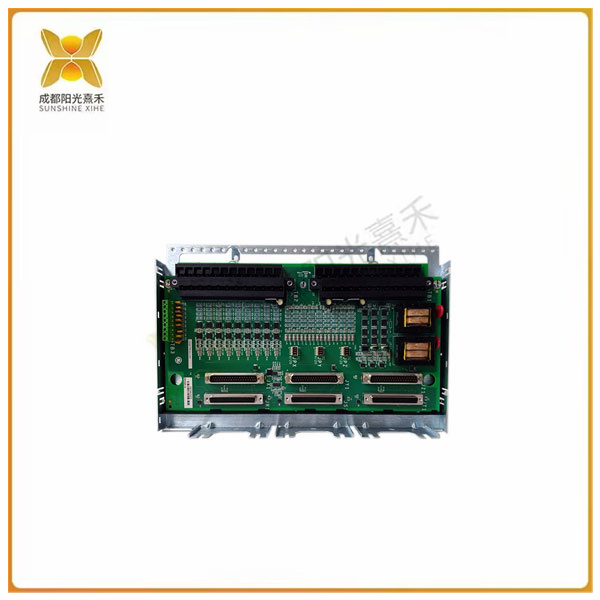

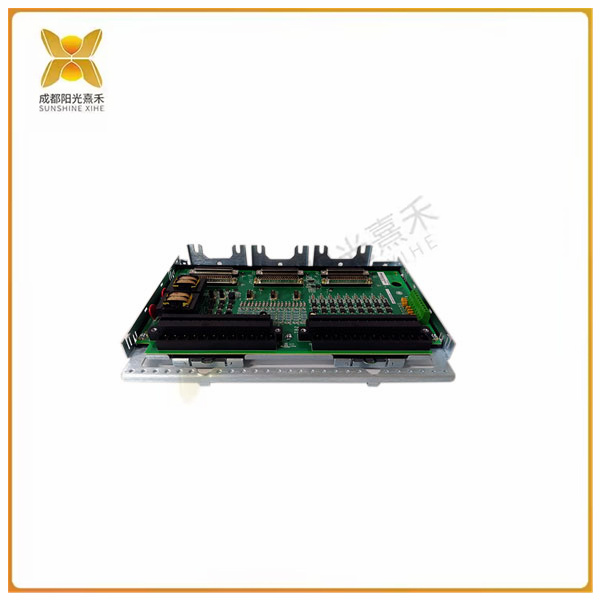

IS200TPROS1CBB是一個長長的印刷電路板，有許多電子元件，從很小到很大。兩個黑色接線端子有二十四（24）個金屬銀色端子。每個都標有從一（1）到四十八（48）的白色數字。沿著IS200TPROS1CBB的另一端是三（3）個大型連接器端口，可用于將其他組件連接到IS200TPROS1CBB。另外三（3）個連接器端口（大約是其他端口的一半）位于這些端口左側的垂直線上。兩（2）個中間為紅色和黃色的大型繼電器已在中心的IS200TPROS1CBB頂部垂直配對。紅色金屬氧化物壓敏電阻或MOV直接放置在這些MOV的左側。IS200TPROS1CBB下半部分的大部分被一組形狀像黑色矩形的二極管占據。這些二極管水平排列。許多非常小的電阻器覆蓋著藍色和黑色的條帶，沿著IS200TPROS1CBB的長度垂直排列。許多非常小的銀電容器也排列在IS200TPROS1CBB的左側。

 >>>>>型號:IS200TPROS1CBB 保護終端板的裝置 印刷電路板

【英文介紹】

The IS200TDBTH6ACDCD is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6ACDCD is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.

The IS200TDBTH6ACDCD prominently features a collection of 12 large black potentiometers, which are also known as variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The lower half of the IS200TDBTH6ACDCD is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the IS200TDBTH6ACDCD. At the very bottom of the IS200TDBTH6ACDCD near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to the IS200TDBTH6ACDCD. Several small integrated circuits can be placed in the top half of the IS200TDBTH6ACDCD. Some of them are aligned horizontally in the center and others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS200TDBTH6ACDCD of the integrated circuit. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6ACDCD with one (1) black stripe in the middle.
