>>>>>型號:IS200TRPAH2AHE 渦輪機控制系統 保護性終端卡

【功能描述】

通用電氣的IS200TRPAH2AHE電路板是該公司Mark VI渦輪機控制系統的一部分。Mark VI是GE的最終Speedtronic系統之一，為各種規模的渦輪機系統提供分布式控制。IS200TRPAH2AHE印刷電路板（PCB）在該系統中用作保護性終端卡。請務必為您的特定系統訂購正確的TPRO板;AX Control有此板的多個版本，它們彼此之間僅略有不同。

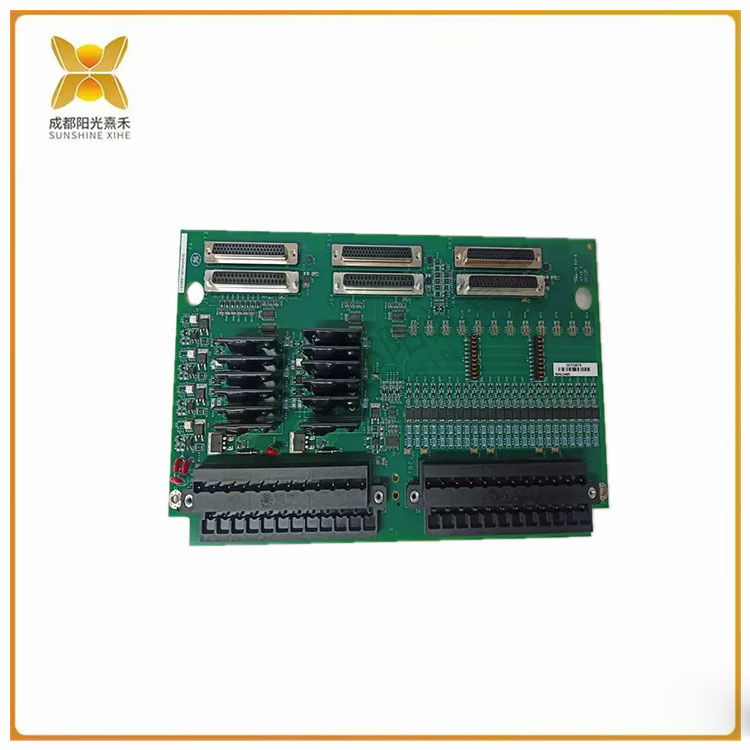

IS200TRPAH2AHE建立在金屬載體上，該金屬載體保護性地延伸到電路板的三個邊緣上方。這些金屬邊緣設計有工廠鉆孔和間隙。沒有金屬覆蓋層的電路板由兩個大端子排填充。電路板本身用螺釘固定在每個電路板角的金屬托架上。

該IS200TRPAH2AHE由許多不同的組件組成，包括六個垂直的d型外殼連接器。它們?cè)诎宓囊粋?cè)排列在一起。其他電路板組件包括第三個端子排、兩個繼電器、兩個MOV（金屬氧化物壓敏電阻）和幾個集成電路。該板還具有多個電阻器、電容器和其他組件。像IS200TRPAH2AHE這樣的電路板通常在印刷電路板的兩側都有組件。

 >>>>>型號:IS200TRPAH2AHE 渦輪機控制系統 保護性終端卡

【英文介紹】

General Electric (GE) has developed the iS200TREGH1BEC protected terminal Board as a component of the Mark VI series for gas/steam turbine management and automation. IS200TREGH1BEC is a version of a printed circuit board or PCB. The IS200TREGH1BEC and other components of the Mark VI series are part of a larger Mark series turbine control unit.

IS200TREGH1BEC PCB is rectangular. The most prominent components on the IS200TREGH1BEC are the two (2) terminals and two (2) relays or contactors. The terminals are black and large. They are placed vertically on the left edge of the IS200TREGH1BEC. The relays on the IS200TREGH1BEC are vertically paired at the center of the top of the IS200TREGH1BEC. Most of these relays are red, and they have yellow and black sections on top. Immediately next to these relays on the left are two (2) red round MOV or metal oxide varistors. Throughout the IS200TREGH1BEC there are several small sized yellow steady on capacitors, mainly located in the bottom half of the circuit board. The right edge of the IS200TREGH1BEC is lined with three (3) medium jack connector ports, named JZ1, JY1 and JX1. There are three (3) more of these connector ports, which are smaller than the other connector ports (about half the size of the other connector ports) and have been lined up to the left of these other connector ports. Smaller connector ports have been identified by the names JZ5, JY5, and JX5. Three (3) black variable resistors or potentiometers are located on the upper right of the IS200TREGH1BEC.
