UR8CH | CT/VT 模塊 | IC670GBI102D | UR9AH

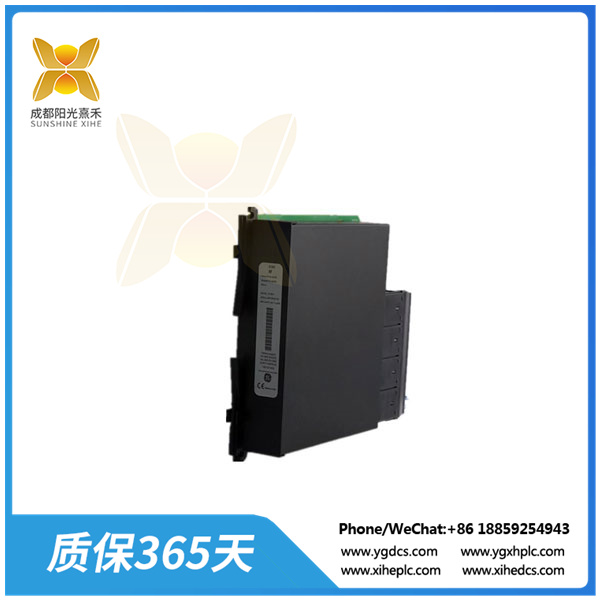

型號：UR8CH
尺寸 約 15 厘米長、18 厘米寬、4 厘米高
重量 2磅，9盎司
產品描述
通用電氣 Multilin 的 UR-8CH 是一款 CT/VT 模塊，設計用于安裝在通用繼電器中，作為系統的替換或升級。該模塊為繼電器提供 3-1A/5A 相位 CT 和 1/5A 接地 CT。
除了提供電力系統數據外，電流互感器還能夠?qū)⑾到y(tǒng)與極端電流和電壓隔離開來，從而延長系統壽命并降低一般維護成本。此外，電流互感器提供標準化的輸出電壓，無需額外的輔助保護。電壓互感器還可以提高用戶安全性，并可以可靠地測量電力系統電壓。
CT/VT 設置可以高度修改，以創建獨特的保護方案，從而增加模塊的多功能性。這些方案包括差分保護、并發分相保護等。該模塊某些版本具有增強的診斷功能，能夠驗證模擬信號的完整性，UR8CH 采用先進的算法來保證可靠性。此功能與優傲繼電器的運行狀況診斷功能相結合，提供雙層評估，以確保組件正常運行。
雖然 UR-8CH 是為繼電器提供電流和電壓互感器的不錯選擇，但它已被該系列的一些更先進的模塊(例如 UR-8L 或 UR-8V)所淘汰;用戶可以在購買前查看通用繼電器手冊，以更全面地了解每個模塊提供的功能。-AX控制技術員
Model: UR8CH
The dimensions are about 15 cm long, 18 cm wide and 4 cm high
It weighs 2 pounds, 9 ounces
Product description
The UR-8CH from GE Multilin is a CT/VT module designed to be installed in a general-purpose relay as a system replacement or upgrade. This module provides 3-1A/5A phase CT and 1/5A ground CT for relays.
In addition to providing power system data, current transformers insulate the system from extreme currents and voltages, extending system life and reducing general maintenance costs. In addition, current transformers provide standardized output voltages without additional auxiliary protection. Voltage transformers also improve user safety and can reliably measure power system voltage.
CT/VT Settings can be highly modified to create unique protection schemes, thereby increasing the versatility of the module. These schemes include differential protection, concurrent phase separation protection and so on. Some versions of the module have enhanced diagnostic capabilities to verify the integrity of analog signals, and UR8CH uses advanced algorithms to ensure reliability. This function, combined with the health diagnostics function of the Yoo relay, provides a two-layer assessment to ensure that the components are functioning properly.
While the UR-8CH is a good choice for current and voltage transformers for relays, it has been eliminated by some of the more advanced modules in the family, such as the UR-8L or UR-8V; Users can review the General relay manual before purchasing to get a more complete understanding of the capabilities offered by each module. -AX control Technician
