>>>>>型號:IS200VRTDH1D 電阻溫度器件 16個三線RTD輸入

【功能描述】

該IS200VRTDH1D是GE Mark VI板組件。 Mark VI 是通用電氣從 1960 年代后期一直到 2000 年代初開發和發布的 Speedtronic 燃?xì)廨啓C(jī)和蒸汽輪機管理系列的一部分。這條渦輪機管理生產線始于 Mark I，并逐漸變得更加技術先進。Mark VI包括一個連接到基于PC的操作界面的三重冗余中央控制模塊。該操作員界面允許使用專為渦輪機控制而設計的軟件從單個位置訪問渦輪機數據。

IS200VRTDH1D是RTD（電阻溫度器件）輸入。該板接受16個三線RTD輸入，但這些輸入不直接連接到電路板。取而代之的是，輸入連接到RTD端子板，并通過電纜連接到安裝IS200VRTDH1D的VME機架。

IS200VRTDH1D有一個單插槽面板。 面板上安裝了三個 LED 指示燈，用于指示運行/失敗/狀態。LED 的顏色為綠色、紅色和橙色。面板使用三顆螺釘連接到主 PCB。

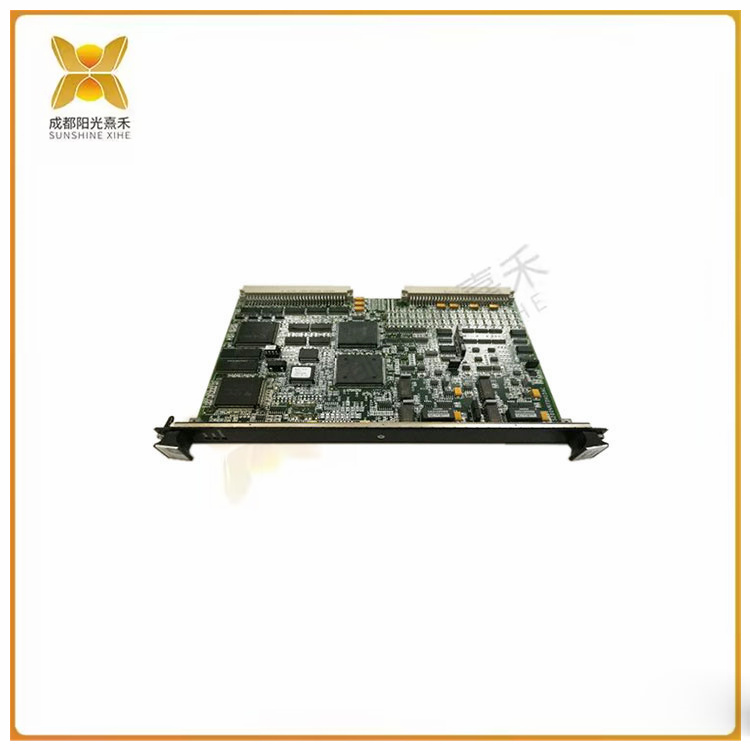

IS200VRTDH1D是組件密集的。電路板電容器（超過200個）和電阻器（數百個）以及200多個集成電路。這包括現場可編程門陣列 （FPGA）。該板的電感磁珠分布在幾條線路中。它在多個位置鉆孔，包括在特定安裝的芯片周圍。該板標有 94V-0、6BA01 和 PC-40802 等代碼。GE出版物GEH-6421將提供有關組件和電路板安裝的更多信息。

 >>>>>型號:IS200VRTDH1D 電阻溫度器件 16個三線RTD輸入

【英文介紹】

The IS200VRTDH1D is a GE Mark VI board component. The Mark VI is part of the Speedtronic gas turbine and steam turbine management series developed and released by GE from the late 1960s through the early 2000s. This turbine management line started with Mark I and has gradually become more technologically advanced. The Mark VI includes a triple redundant central control module connected to a PC-based operating interface. This operator interface allows turbine data to be accessed from a single location using software designed for turbine control.

The IS200VRTDH1D is an RTD (Resistance Temperature Device) input. The board accepts 16 three-wire RTD inputs, but these inputs are not directly connected to the board. Instead, the input is connected to the RTD terminal board and via cable to the VME rack where the IS200VRTDH1D is installed.

The IS200VRTDH1D has a single slot panel. Three LED indicators are installed on the panel to indicate run/fail/status. The colors of leds are green, red and orange. The panel is attached to the main PCB using three screws.

The IS200VRTDH1D is component-intensive. Circuit board capacitors (more than 200) and resistors (hundreds) and more than 200 integrated circuits. This includes field programmable gate arrays (FPgas). The inductance beads of the board are distributed in several lines. It drills holes in multiple locations, including around a specific mounted chip. The board was marked with codes such as 94V-0, 6BA01, and PC-40802. GE publication GEH-6421 will provide more information on component and board mounting.
