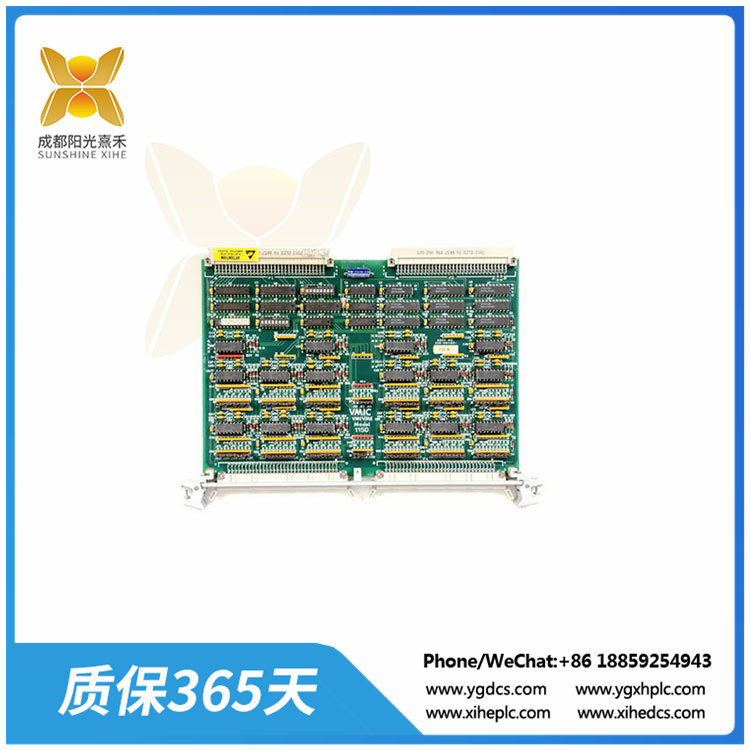

　　VMIVME-1150 | Guide module | 760-P1-G1-S1-LO-A20-R-E

　　Model :VMIVME-1150

　　Category: Guide module

　　Warranty :365 days

　　Delivery method: SF Express/Federal

　　Remittance: Wire transfer/Western Union

　　Net product thickness/length :114.3 mm

　　Product height :45 mm

　　Product width :130.5 mm

　　Net weight: 0.4kg.

　　An input module, also known as a monitor module, is a component connected to an external transmitting device, which is mainly used to accept an external signal and convert it into a signal acceptable to the CPU module. VMIVME-1150 In the automatic fire alarm system, the input module is used to introduce signals from external devices (such as water flow indicators, signal valves, etc.) into the automatic fire alarm host for monitoring.

　　From the hardware point of view, the working principle of the input module mainly includes the following aspects:

　　Data input: The external devices input data into the input module through the interface, and the interface will convert the data from the external devices into signals that can be recognized by the computer, such as voltage signals, digital signals, etc.

　　Data transfer: The VMIVME-1150 input module passes the received data to the central processing unit (CPU), which is usually achieved through a bus or other data transmission channel.

　　Functional characteristics

　　Board Features: This 64-bit optically coupled, digital input board is specifically designed and optimized for wME. With high isolation, the VMIVME-1150 offers flexibility. Low cost 8-byte digital input port with high noise resistance. the

　　Compatibility: The VMlVME-1150 is a standard dual-height printed circuit board for electrical and mechanical compatibility with VME.

　　Input organization :8 input ports, each 8 bits wide. The port is arranged as eight consecutive 8-bit, read-only registers.

　　Addressing scheme: Each 8-bit port can individually address supervised or short unprivileged l/0 Spaces on 8-bit or 16-bit boundaries.

　　Board address: Board address is selected by on-board DlP. The WME backplane can be operated in any available slot on the mainboard, except slot 1.

　　VME access: The address modification bits are decoded to support short supervised access or unprivileged short i /O access.
