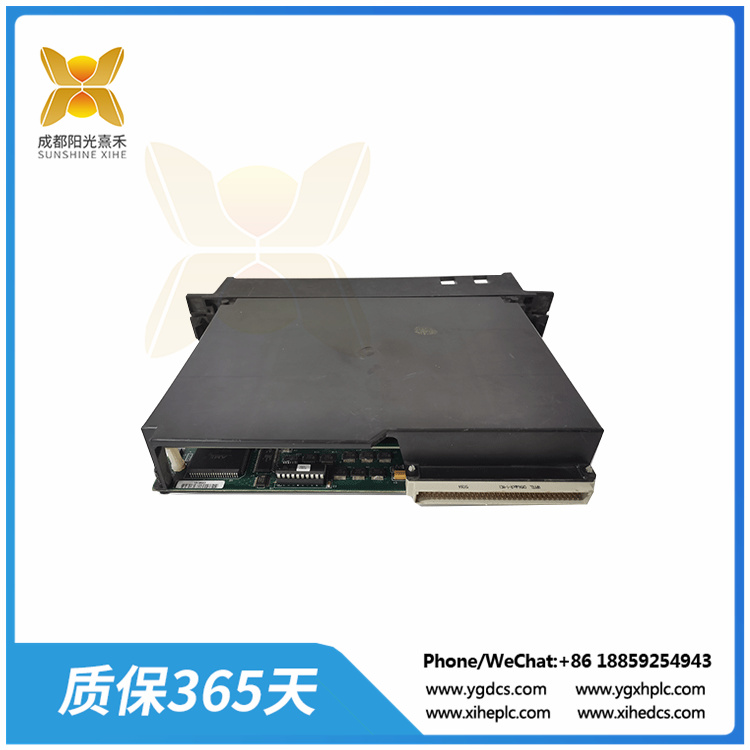

IC693APU300K | 90-30系列|   高速計數器 (HSC) 模塊

　　零件編號IC693APU300

　　系列 90-30系列

　　產品描述 高速計數器 (HSC) 模塊

　　輸入通道數 十二 (12) 個源輸入

　　輸入通道數 十二 (12) 個正邏輯輸入

　　產品描述 高速計數器模塊

　　輸入電壓 5 伏直流電;10-30 伏直流電

　　輸入信號電壓 5 伏直流電;10VDC - 30 伏直流電

　　最大計數率 80 千赫茲

　　輸入頻率 8 千赫茲

　　最小計數率 20 千赫茲

　　輸入計數頻率 80 千赫茲

　　輸出額定值 最大 10 至 30 VDC @ 500 mA; 4.75 至 6 VDC @ 20 mA(最大值)

　　不。輸出通道數 四 (4) 個正邏輯輸出

　　GE IC693APU300高速計數器模塊是GE Fanuc的單插槽計數器模塊。它適用于渦輪流量計、儀表證明、速度測量、物料搬運、運動控制和過程控制等應用。該計數器模塊的主要優點是它能夠處理額定頻率高達 80 千赫茲的快速信號脈沖。該高速計數器模塊可以檢測輸入和輸出，并計算輸入和輸出響應，而無需與CPU通信。IC693APU300高速計數器模塊可以向上和向下計數，并且可以計算 2 個變化值之間的差值。為了指示運行狀態和配置參數的狀態，模塊的頂面有 2 個綠色 LED。

　　Part number IC693APU300

　　Series 90-30 series

　　Description High Speed Counter (HSC) module

　　Number of input channels Twelve (12) source inputs

　　Number of input channels Twelve (12) positive logic inputs

　　Product Description High speed counter module

　　Input voltage 5 v DC; 10-30 volts direct current

　　Input signal voltage 5 v DC; 10VDC - 30 volts direct current

　　Maximum count rate 80 KHZ

　　Input frequency 8 KHZ

　　Minimum count rate 20 KHZ

　　Input count frequency 80 KHZ

　　Output rating Max 10 to 30 VDC @ 500 mA; 4.75 to 6 VDC @ 20 mA (Max)

　　Nooooo. Number of output channels Four (4) positive logic outputs

　　The GE IC693APU300 high speed counter module is a single slot counter module for GE Fanuc. It is suitable for applications such as turbine flow meters, instrument proof, speed measurement, material handling, motion control and process control. The main advantage of this counter module is its ability to handle fast signal pulses with rated frequencies up to 80 KHZ. This high-speed counter module can detect inputs and outputs and calculate input and output responses without having to communicate with the CPU. The IC693APU300 high-speed counter module can count up and down, and can calculate the difference between 2 changing values. In order to indicate the status of operation and configuration parameters, there are 2 green leds on the top surface of the module.
