>>>>>型號:IS210AEDBH4AGD 印刷電路板 集成的HMI/操作員界面

【功能描述】

IS210AEDBH4AGD是GE制造的組件，作為Mark VI系統的電路板組件。 Mark VI系統是為管理燃?xì)廨啓C(jī)和蒸汽輪機而創建的，具有集成的HMI/操作員界面，允許用戶使用專門設計的軟件（如GE的CIMPLICITY圖形平臺）訪問系統數據。

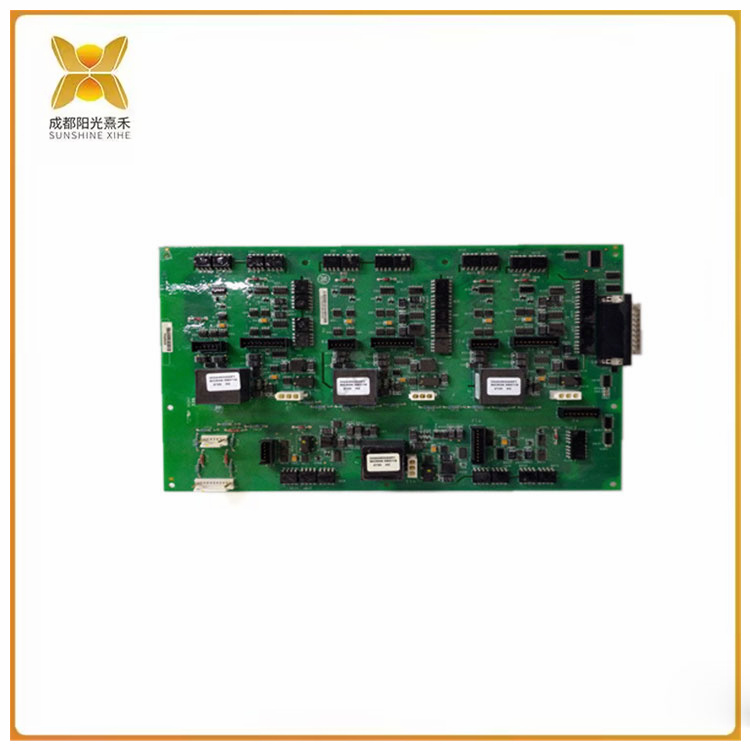

IS210AEDBH4AGD是網橋接口卡。該組件的正面有許多連接器，包括標有 574 9771-1 1301 的直角電纜連接器。有兩個接頭連接器，每個連接器有六個或四個位置，但每個連接器有兩個垂直引腳。該板有 9 個公頭垂直引腳連接器，引腳從 6 個引腳到 10 個引腳不等。該板還有四個插頭，每個插頭有三個位置。

IS210AEDBH4AGD在前表面和背面都有組件。背面主要是電容器和電阻器，但也有二極管和晶體管。正面還有電容器和電阻器，包括二十個金屬膜電阻器。它還具有二極管和晶體管。前表面有四個來自 Bizron 的變壓器。這些產品標記為 B9178，是封裝式開關模式/脈沖變壓器，旨在滿足 BIL 額定值的高可靠性要求。變壓器的耐壓電平為5KVAC，開關頻率為10KHz至500KHz，集成電路超過175種，包括只讀芯片、振蕩芯片等。

 >>>>>型號:IS210AEDBH4AGD 印刷電路板 集成的HMI/操作員界面

【英文介紹】

The IS210AEDBH4AGD is a GE manufactured component that serves as a circuit board component for the Mark VI system. Created to manage gas and steam turbines, the Mark VI system features an integrated HMI/ operator interface that allows users to access system data using specially designed software such as GE's CIMPLICITY graphics platform.

The IS210AEDBH4AGD is a bridge interface card. The front of the assembly has a number of connectors, including a right Angle cable connector marked 574 9771-1 1301. There are two splice connectors, each with six or four positions, but each connector has two vertical pins. The board has 9 male head vertical pin connectors with pins ranging from 6 pins to 10 pins. The board also has four plugs, each with three positions.

The IS210AEDBH4AGD has components on both the front and back surfaces. The back is mostly capacitors and resistors, but there are also diodes and transistors. There are also capacitors and resistors on the front, including twenty metal film resistors. It also has diodes and transistors. There are four transformers from Bizron on the front surface. Labeled B9178, these products are packaged switching mode/pulse transformers designed to meet the high reliability requirements of the BIL rating. The voltage level of the transformer is 5KVAC, the switching frequency is 10KHz to 500KHz, and there are more than 175 kinds of integrated circuits, including read-only chips and oscillating chips.
