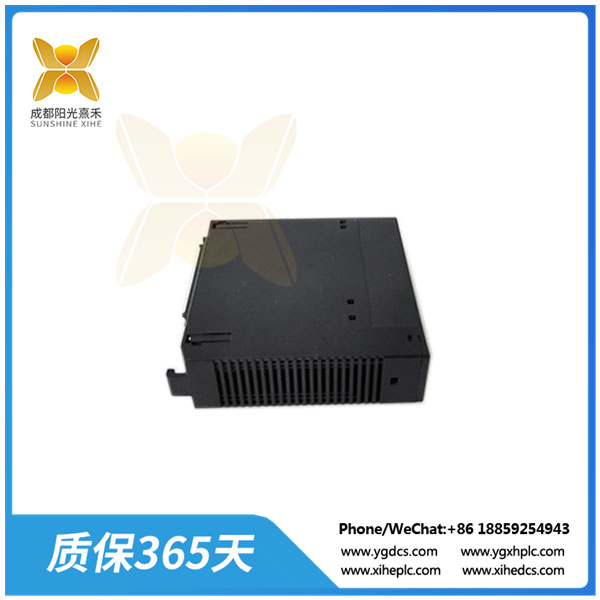

IC695DEM008| IC694MDL758| IC694MDL734 | 以太網接口模塊
型號：IC695DEM008
類別：以太網接口模塊
成色：全新/非全新
質保：一年
介紹
以太網接口模塊IC695DEM008用于將PACSystems RX3i控制器連接到以太網。它
使RX3i控制器能夠與其他PACSystems設備以及90系列和VersaMax進行通信
控制器。以太網接口提供傳輸控制協議和TCP/iP (internet Protocol)協議。
與其他控制系統、運行編程軟件的主機和運行程序的計算機之間的通信
TCP/lP版本的編程軟件。這些通信使用服務請求傳輸協議
(SRTP)、Modbus TCP和以太網全局數據(EGD)協議通過四層TCP/iP(互聯網)堆棧。
RX3i以太網接口的特點包括:
編程和配置服務。通過Web/HTTP方式從RX3i CPU升級固件
如果CPU支持該方法，或者通過使用WinLoader軟件實用程序，它提供了更新
以太網接口軟件。
使用以太網全局數據(EGD)進行周期性數據交換。
EGD通過網絡讀寫控制器和EGD交換內存的命令
使用SRTP的fCP/IP通信服務。
IC695DEM008| IC694MDL758| IC694MDL734
| Ethernet interface module
Model: IC695DEM008
Category: Ethernet interface module
Finish: New/not new
Warranty: One year
introduce
Ethernet interface module IC695DEM008 is used to connect the PACSystems RX3i controller to Ethernet. it
Enables RX3i controllers to communicate with other PACSystems devices as well as the 90 Series and VersaMax
The controller. Ethernet interfaces provide Transmission control Protocol and internet Protocol (TCP/iP).
Communication with other control systems, hosts running programming software, and computers running programs
TCP/lP version of programming software. These communications use the Service Request Transport Protocol
(SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols pass through the Layer 4 TCP/iP(Internet) stack.
Features of the RX3i Ethernet interface include:
Programming and configuring services. Upgrade firmware from the RX3i CPU via Web/HTTP
If the CPU supports this method, or by using the WinLoader software utility, it provides updates
Ethernet interface software.
Periodic data exchange using Ethernet Global Data (EGD).
EGD reads and writes memory commands between the controller and EGD over the network
fCP/IP communication services using SRTP.
