>>>>>型號:IS210WSVOH1AE 聲學監測模塊 內置于DIN導軌
【功能描述】

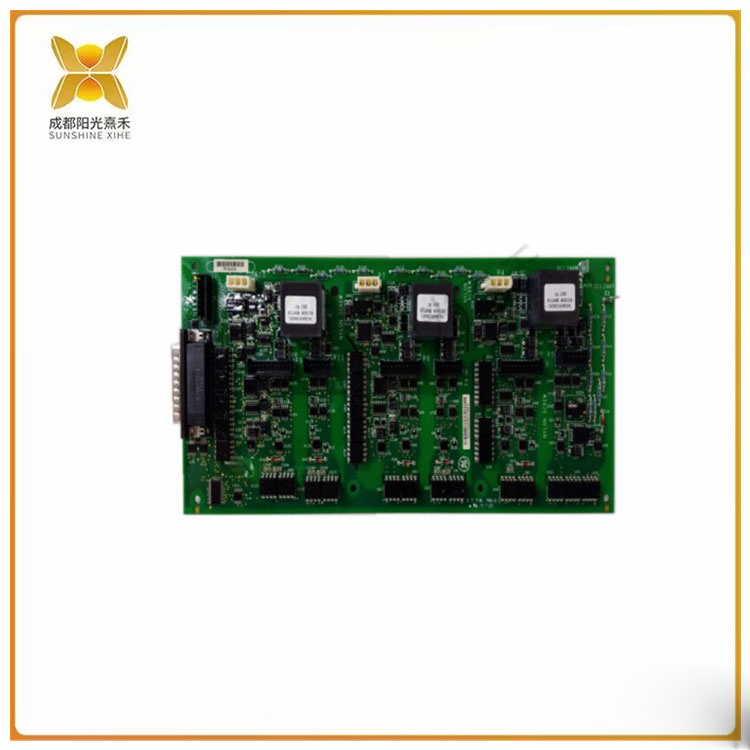

IS210WSVOH1AE是一種印刷電路板或PCB，最初由通用電氣公司為該公司的Mark VI和Mark VIe渦輪機控制系統生產。這兩個系統均采用GE的三重模塊化冗余（TMR）架構設計，該架構為渦輪機關鍵控制和保護參數提供備份，以提高系統的整體可靠性。
該IS210WSVOH1AE用作聲學監測模塊。使用時，該電路板通過位于一個長板邊緣的端子排向Mark VI（Mark VIe）聲學監測系統添加額外的18個輸入。這些燈帶提供用于兩線輸入的附件。該板還具有用于類似輸出的附件。輸出監控電壓信號。
該IS210WSVOH1AE內置于DIN導軌內。這圍繞著電路板的所有四個邊緣;但是，法蘭在三個邊上向上移動，在一條邊上向下移動。一些法蘭上鉆有槽口或安裝孔。電路板本身標有許多代碼，還包括母連接器。該板還標有通用電氣標志。
有關IS210WSVOH1AE電路板的更多信息可以通過通用電氣的原始文檔獲取。這包括GE手冊、數據表和產品指南。在開始任何類型的安裝、維護或其他過程之前，使用此信息可以更深入地了解本產品和整個系統。
>>>>>型號:IS210WSVOH1AE 聲學監測模塊 內置于DIN導軌
【英文介紹】
The IS210WSVOH1AE is a printed circuit board or PCB originally produced by General Electric for the company's Mark VI and Mark VIe turbine control systems. Both systems are designed with GE's Triple Modular Redundancy (TMR) architecture, which provides backup for key turbine control and protection parameters to improve the overall reliability of the system.
The IS210WSVOH1AE is used as an acoustic monitoring module. When used, the board adds an additional 18 inputs to the Mark VI (Mark VIe) acoustic monitoring system via a terminal bank located at the edge of a longboard. These lamp strips provide accessories for two-wire input. The board also has attachments for similar outputs. Output monitoring voltage signal.
The IS210WSVOH1AE is built into a DIN rail. This surrounds all four edges of the board; However, the flange moves up on three sides and down on one side. Some flanges have notches or mounting holes drilled into them. The board itself is marked with many codes and also includes female connectors. The board is also marked with the GE logo.
More information about the IS210WSVOH1AE board is available through GE's original documentation. This includes GE manuals, data sheets, and product guides. Use this information to gain a deeper understanding of the product and the overall system before starting any type of installation, maintenance, or other process.
