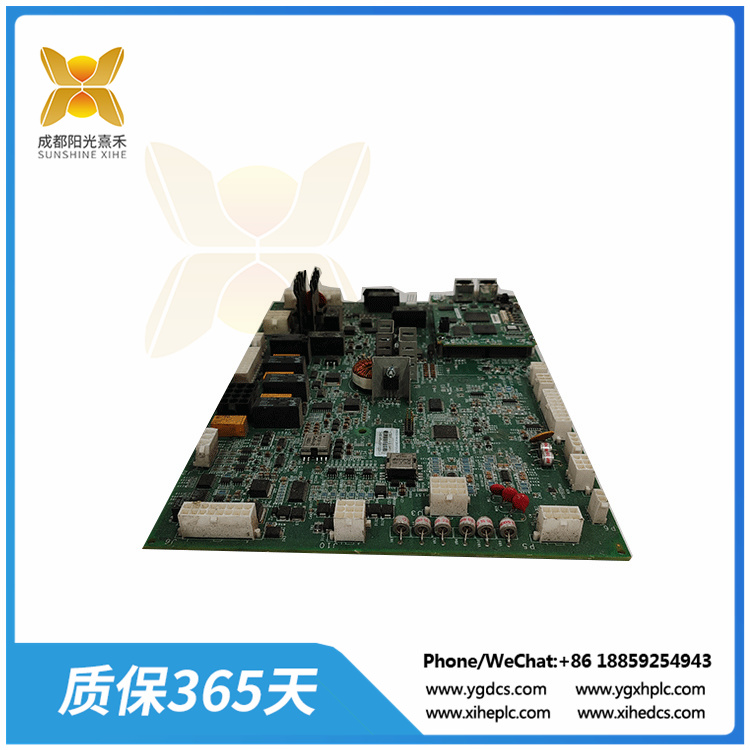

IS200UCVEH2A | IS220UCSAH1A | 控制器模塊
零件編號：IS200UCVEH2A
制造商：通用電氣
制造國家：美國(美國)
微處理器：英特爾賽揚 300 MHz
DRAM：32 MB
工作溫度：-30 至 65oC
產品類型：控制器模塊
可用性：現貨
功能描述
IS200UCVEH2A是由GE開發的控制器模塊。它是Mark VI控制系統的一部分。UCVE安裝在單插槽板上，確保在控制系統設置中有效利用空間。它配備 300 MHz 英特爾賽揚處理器，為控制和監控任務提供足夠的處理能力。該板配備 16 MB 或 128 MB 閃存，為系統固件和軟件應用程序提供存儲。此外，它還包括 32 MB 的 DRAM(動態隨機存取存儲器)，可實現快速數據處理和多任務處理功能。
特征
以太網連接：配備單個 10BaseT/100BaseTX (RJ-45) 以太網端口，便于與通用顯示集線器 (UDH) 的高速連接。
該以太網端口用作UCVE與Mark VI系統內其他組件之間數據交換的主要通信接口。
與 UDH 的連接：以太網端口可實現與通用顯示中心 (UDH) 的無縫連接，UDH 是系統監控、配置和控制的核心組件。通過UDH，操作員可以訪問實時數據、配置系統參數和執行診斷任務，從而增強整體系統管理和性能。
處理和控制能力：憑借其英特爾賽揚處理器和內存資源，UCVE執行控制算法、邏輯功能和其他對系統操作至關重要的處理任務。它有助于實時監控系統變量，實施控制策略，并響應來自傳感器和其他設備的輸入信號，以保持系統穩定性和所需操作。
與Mark VI系統集成：它是Mark VI控制系統的一個組成部分，提供有效控制和監測工業過程所需的計算能力和連接性。其緊湊的外形和堅固的設計使其適合部署在從發電廠到制造設施的各種工業環境中。
LED指示燈
有源 LED：
閃爍(活動)：當活動 LED 閃爍時，表示以太網連接處于活動狀態并且正在進行數據傳輸。此閃爍模式表示正常的網絡活動。
常亮(非活動)：如果活動 LED 保持常亮且不閃爍，則表示以太網連接處于非活動狀態或未傳輸數據。這可能意味著網絡問題或設備之間缺乏通信。
鏈接 LED：
黃色 (10BaseT)：鏈路 LED 的黃色表示以太網連接以 10BaseT 的速度運行，這對應于 10 Mbps 的數據傳輸速率。此速度相對較慢，可能適用于較舊的網絡設置或設備。
綠色 (100BaseTX)：當鏈路 LED 變?yōu)榫G色時，表示以太網連接以 100BaseTX 的速度運行，對應于 100 Mbps 的更快數據傳輸速率。這種速度在現代網絡中更為常見，并為數據密集型應用程序提供了更高的性能。
COM 端口
COM1：保留用于診斷：COM1 專用于診斷目的。它以 9600 的波特率運行，配置為 8 個數據位、無奇偶校驗和 1 個停止位。此端口主要用于診斷例程、系統監控和故障排除任務，提供對設備運行狀態和性能的基本見解。
COM2：用于串行 Modbus 通信：COM2 用作串行 Modbus 通信的通信接口。它支持 9600 或 19200 的波特率，可根據 Modbus 網絡的特定要求進行靈活的通信配置。此端口有助于設備與外部 Modbus 兼容設備(如傳感器、控制器或其他工業設備)之間的數據交換。
IS200UCVEH2A | IS220UCSAH1A | Controller module
Part number: IS200UCVEH2A
Manufacturer: General Electric
Manufacturing Country: USA (USA)
Microprocessor: Intel Celeron 300 MHz
DRAM: 32 MB
Operating temperature: -30 to 65oC
Product type: Controller module
Availability: In stock
Function description
IS200UCVEH2A is a controller module developed by GE. It is part of the Mark VI control system. The UCVE is mounted on a single slot board, ensuring efficient use of space in the control system setup. It is equipped with a 300 MHz Intel Celeron processor that provides enough processing power for control and monitoring tasks. The board comes with either 16 MB or 128 MB flash memory to provide storage for system firmware and software applications. In addition, it includes 32 MB of DRAM (dynamic random access memory) for fast data processing and multitasking capabilities.
trait
Ethernet connectivity: A single 10BaseT/100BaseTX (RJ-45) Ethernet port facilitates high-speed connectivity to a Universal Display hub (UDH).
The Ethernet port is used as the main communication interface for data exchange between the UCVE and other components in the Mark VI system.
Connectivity to UDH: The Ethernet port enables seamless connectivity to the Universal Display Center (UDH), a core component of system monitoring, configuration, and control. With UDH, operators can access real-time data, configure system parameters, and perform diagnostic tasks to enhance overall system management and performance.
Processing and control capabilities: With its Intel Celeron processors and memory resources, UCVE performs control algorithms, logic functions, and other processing tasks that are critical to system operation. It helps to monitor system variables in real time, implement control strategies, and respond to input signals from sensors and other devices to maintain system stability and required operations.
Integration with Mark VI Systems: It is an integral part of the Mark VI control System, providing the computing power and connectivity needed to effectively control and monitor industrial processes. Its compact form factor and rugged design make it suitable for deployment in a variety of industrial environments, from power plants to manufacturing facilities.
LED indicator
Active LED:
Blinking (active) : When the active LED blinks, the Ethernet connection is active and data is being transferred. This blinking mode indicates normal network activity.
Steady on (inactive) : If the active LED remains steady on and does not blink, the Ethernet connection is inactive or not transmitting data. This could mean network issues or a lack of communication between devices.
Link LED:
Yellow (10BaseT) : The yellow of the link LED indicates that the Ethernet connection is operating at a speed of 10BaseT, which corresponds to a data transfer rate of 10 Mbps. This speed is relatively slow and may work for older network Settings or devices.
Green (100BaseTX) : When the link LED turns green, it indicates that the Ethernet connection is running at 100BaseTX, corresponding to a faster data transfer rate of 100 Mbps. This speed is more common in modern networks and provides higher performance for data-intensive applications.
COM port
COM1: Reserved for diagnostic purposes: COM1 is used exclusively for diagnostic purposes. It runs at a baud rate of 9600 and is configured with 8 data bits, no parity and 1 stop bit. This port is primarily used for diagnostic routines, system monitoring, and troubleshooting tasks, providing basic insights into device
