>>>>>型號:IS200TBCIS2CCD  渦輪控制PCB板模塊  模擬端子板

【功能描述】

IS200TBCIS2CCD是稱為模擬端子板的設備。該P(yáng)CB或印刷電路板是General Electric的Mark VI系列的一部分。通用電氣的Mark VI和Mark系列中的其他系列旨在控制和自動化燃?xì)廨啓C(jī)和蒸汽輪機的過程。

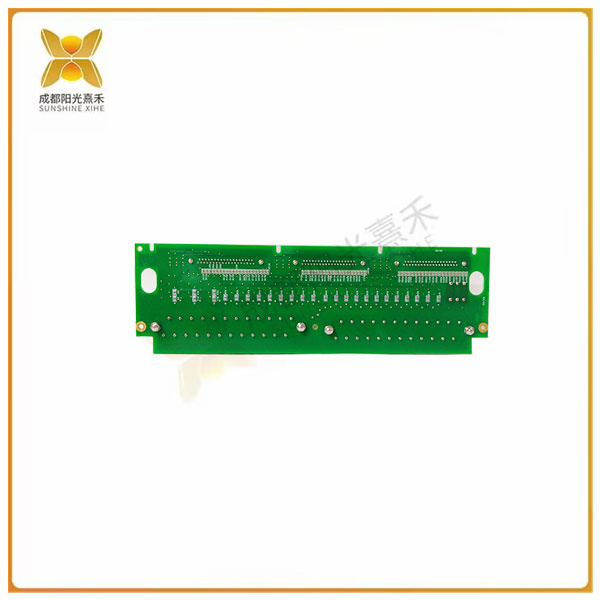

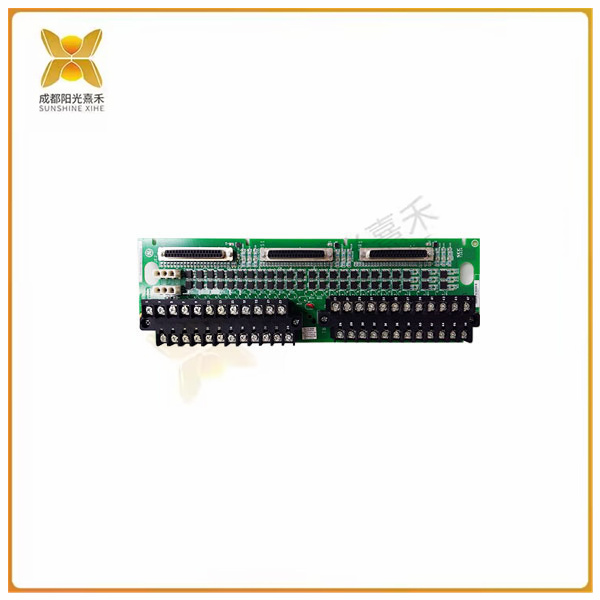

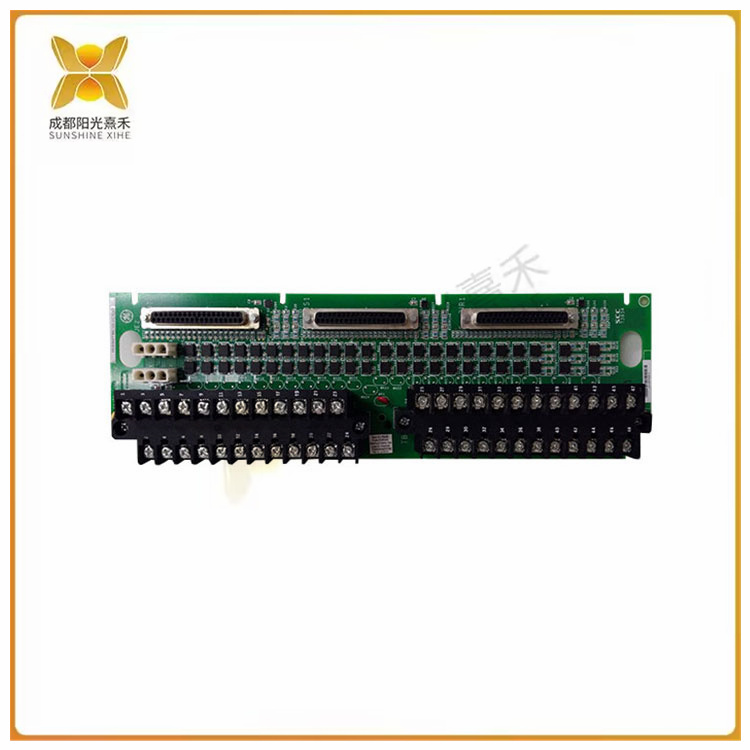

IS200TBCIS2CCD印刷電路板是一種非常長而纖薄的設備。IS200TBCIS2CCD的左半部分由兩（2）個黑色接線端子占據。每個接線端子最多可包含24個端子，這些端子是立方體形狀的，由銀色金屬制成。這些終端總共有四十八個終端，標記為一（1）到四十八（48）。IS200TBCIS2CCD右邊緣的大部分由三（3）個中等大小的連接器端口占據。這些連接器端口垂直排列在IS200TBCIS2CCD的右側。長長的電子元件在IS200TBCIS2CCD中央垂直排列。十（10）個電位計或可變電阻器均勻分布在IS200TBCIS2CCD的中心。四（4）個額外的電位計已組合在IS200TBCIS2CCD的右下角。至少有九（9）個黑色小晶體管沿著IS200TBCIS2CCD中心部分的右側排列。同樣位于IS200TBCIS2CCD中央的是一系列至少二十（20）個紅色跳線。每個跳線用于將至少兩（2）個小金屬跳線引腳連接在一起。IS200TBCIS2CCD的中間部分還覆蓋著許多小的黑色矩形二極管。

 >>>>>型號:IS200TBCIS2CCD  渦輪控制PCB板模塊  模擬端子板

【英文介紹】

The IS200TBCIS2CCD is a device called an analog terminal board. This PCB, or printed circuit board, is part of General Electric's Mark VI series. Ge's Mark VI and other series in the Mark family are designed to control and automate the processes of gas and steam turbines.

The IS200TBCIS2CCD printed circuit board is a very long and thin device. The left half of the IS200TBCIS2CCD is occupied by two (2) black terminals. Each terminal can contain up to 24 terminals, which are cube-shaped and made of silver metal. These terminals have a total of forty-eight terminals, labeled one (1) through forty-eight (48). Most of the right edge of the IS200TBCIS2CCD is occupied by three (3) medium sized connector ports. These connector ports are arranged vertically on the right side of the IS200TBCIS2CCD. The long electronic components are arranged vertically in the center of the IS200TBCIS2CCD. Ten (10) potentiometers or variable resistors are evenly distributed in the center of the IS200TBCIS2CCD. Four (4) additional potentiometers have been assembled in the lower right corner of the IS200TBCIS2CCD. At least nine (9) small black transistors are arranged along the right side of the central portion of the IS200TBCIS2CCD. Also located in the center of the IS200TBCIS2CCD is a series of at least twenty (20) red jumpers. Each jumper is used to connect at least two (2) small metal jumper pins together. The middle part of the IS200TBCIS2CCD is also covered with a number of small black rectangular diodes.
