DS200CTBAG1ADD GE Mark V端子板

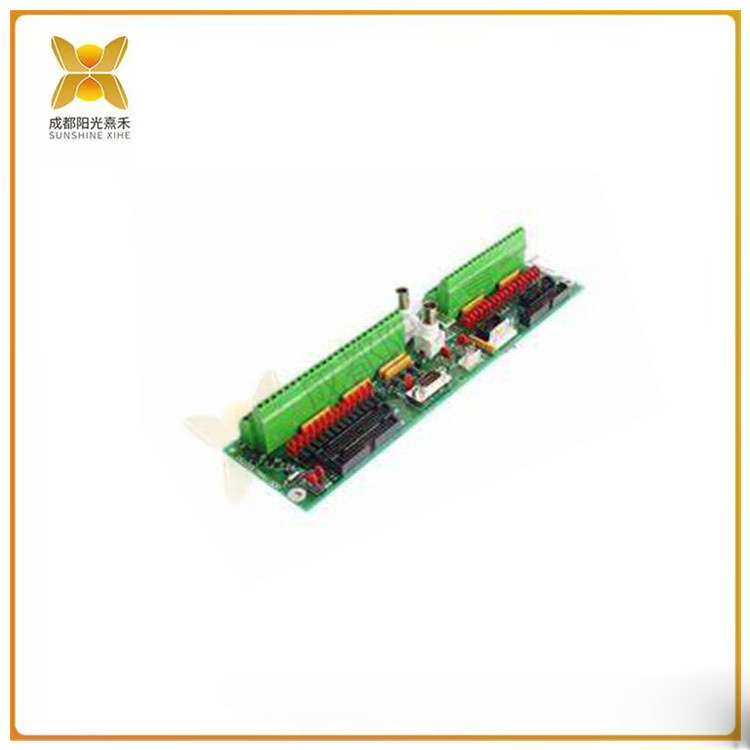

DS200CTBAG1ADD是專為GE Mark V Speedtronic系統設計的端子板。Speedtronic系列由通用電氣創建，用于控制大型和小型燃氣輪機和蒸汽輪機系統。MKV可以采用單工或TMR/三重模塊化冗余架構進行設計，以滿足互聯渦輪系統的需求。這些電路板不再由GE制造和分銷，而是可以通過AX Control作為經過全面測試和翻新的型號購買。
DS200CTBAG1ADD是一個長而窄的電路板，只有幾種類型的組件。它在每個角和長邊上鉆孔，以便安裝硬件和其他連接。其中兩個鉆孔用導電材料環繞。該板上標有識別代碼，包括板ID號和公司徽標。
DS200CTBAG1ADD是模擬端接模塊。它通常位于<R5>內核內。該板有多個連接器，包括兩個COREBUS連接器（JAI和JAJ）。該DS200CTBAG1ADD有兩個雙堆疊端子排，位于一個長板邊緣，每個端子排上有多個連接器。有5個垂直引腳電纜連接器、2個垂直引腳接頭連接器和一個9針公串行連接器。
DS200CTBAG1ADD上的其他組件包括電阻網絡陣列、繼電器、晶體管、二十多個金屬氧化物壓敏電阻（MOV）、十幾個跳線開關，以及許多電容器和電阻器。有關更多信息，請參閱通用電氣最初提供的技術支持產品。
>>>>>型號:DS200CTBAG1ADD 端子板 蒸汽輪機系統
【英文介紹】
DS200CTBAG1ADD GE Mark V terminal board
DS200CTBAG1ADD is a terminal board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of interconnected turbine systems. The boards are no longer manufactured and distributed by GE, but can be purchased as fully tested and refurbished models through AX Control.
The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. It drilled holes in each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification code, including the board ID number and the company logo.
DS200CTBAG1ADD is an analog terminal module. It is usually located in the R5> Inside the kernel. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). The DS200CTBAG1ADD has two double-stacked terminal blocks located at the edge of a longboard with multiple connectors on each terminal block. There are 5 vertical pin cable connectors, 2 vertical pin connector connectors, and a 9-pin male serial connector.
Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide varistors (MOV), a dozen jumper switches, and many capacitors and resistors. For more information, see GE's original technical support offering.
