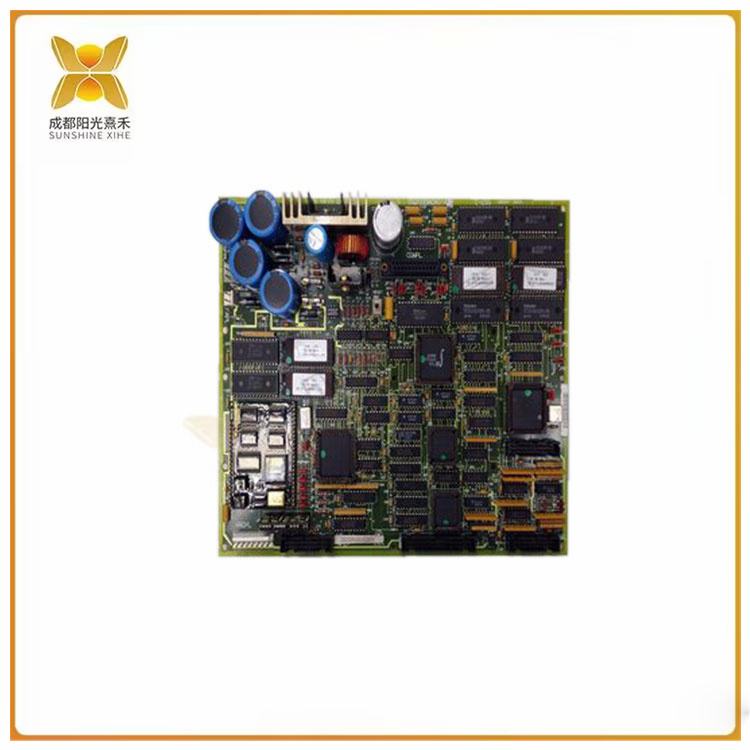

>>>>>型號:DS200FGPAG1AHD 柵極脈沖放大器卡 轉換為直流電

【功能描述】

什么是DS200FGPAG1AHD？

DS200FGPAG1AHD是柵極脈沖放大器卡，可為SCR電橋的一相提供柵極功率，監控SCR狀態，并將交流電源轉換為直流電。

在哪里可以找到DS200FGPAG1AHD手冊？

DS200FGPAG1AHD的使用說明書是GEI-100223，可應要求從AX Control獲得。

DS200FGPAG1AHD板上有三個主要功能。它們是什么，它們做什么？

三個主要功能是開關電源、柵極驅動器和SCR狀態監控。電源開關功能的目的是將接收到的交流電壓轉換為門控和狀態功能所需的直流電壓。SCR狀態監控的目的是從連接的FHVA中積累電池電壓信息，并通過光學串行數據鏈路將信息中繼到LCI控制器。柵極驅動器用于為SCR電橋的一相提供任何柵極電源。有關這些功能的更多信息，請參見GEI-100223柵極脈沖放大器用戶指南的首頁。

DS200FGPAG1AHD板上有30個測試點，位于澆口A、澆口B和用于電池狀態監控的測試點之間。登機口A中的測試點有哪些描述？

A門有9個測試點，其中許多都有不同命名法的單獨描述，有的如下：TP101，命名法1PUSH1，說明邏輯1=命令開始推送循環;TP105，命名法VLINKA，描述初級電壓;和TP110，命名法0RELA，描述邏輯0=釋放門駐留。

柵極脈沖放大器板可接受的功率輸入是多少？

FGPA將接受120 Vrmsù20%、50/60 Hz、最大約350 VA的電源輸入。FGPA模型上有四個不同的點可以接受電壓，如下所示，P15在未監控的情況下通常接受13.5-14.5 VDC的電源，P5接受4.7-5.1 VDC之間的電壓，P90接受大于或等于81 VDC，P40接受大于或等于25 VDC。

哪些源為FGPA板上的推挽電路提供柵極電流？

有兩個不同的來源，分別是大門基座和大門后廊。

 >>>>>型號:DS200FGPAG1AHD 柵極脈沖放大器卡 轉換為直流電

【英文介紹】

What is DS200FGPAG1AHD?

The DS200FGPAG1AHD is a grid pulse amplifier card that provides grid power to a phase of the SCR bridge, monitors SCR status, and converts AC power to direct current.

Where can I find the DS200FGPAG1AHD manual?

The instruction manual for the DS200FGPAG1AHD is GEI-100223 and is available on request from AX Control.

There are three main functions on the DS200FGPAG1AHD board. What are they? What do they do?

The three main functions are switching power supply, gate driver and SCR status monitoring. The purpose of the power switch function is to convert the received AC voltage to the DC voltage required for gated and status functions. The purpose of SCR status monitoring is to accumulate battery voltage information from the connected FHVA and relay the information to the LCI controller via an optical serial data link. The gate driver is used to provide any gate power to a phase of the SCR bridge. For more information on these features, see the home page of the GEI-100223 Grid Pulse Amplifier User Guide.

There are 30 test points on the DS200FGPAG1AHD board, located between Gate A, Gate B, and test points for battery status monitoring. What is the description of the test point at Gate A?

The A gate has 9 test points, many of which have separate descriptions of different nomenclature, some of which are as follows: TP101, nomenclature 1PUSH1, which states that logic 1= command starts the push loop; TP105, nomenclature VLINKA, describes primary voltage; And TP110, the nomenclature 0RELA, describes the logic 0= release gate resident.

What is the acceptable power input for the grid pulse amplifier board?

The FGPA will accept a power input of 120 VrmsU20%, 50/60 Hz, up to about 350 VA. There are four different points on the FGPA model that can accept voltages, as shown below, P15 typically accepts 13.5-14.5 VDC of power without monitoring, P5 accepts voltages between 4.7 and 5.1 VDC, P90 accepts voltages greater than or equal to 81 VDC, and P40 accepts voltages greater than or equal to 25 VDC.

Which sources provide the grid current for the push-pull circuit on the FGPA board?

There are two different sources, namely the base of the gate and the back porch of the gate.
