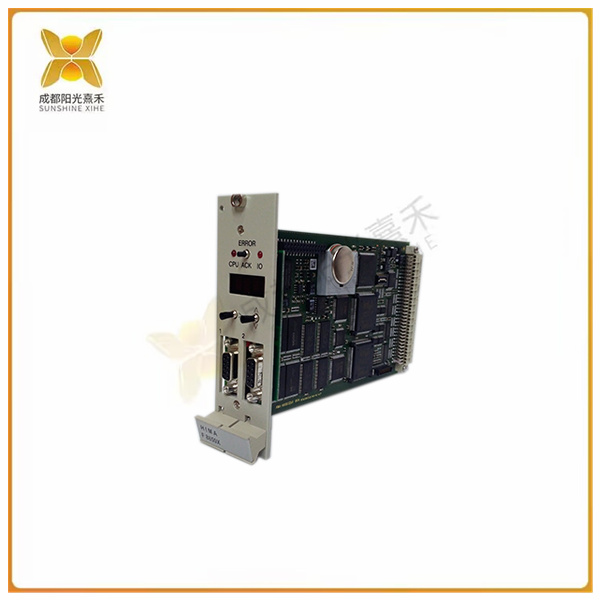

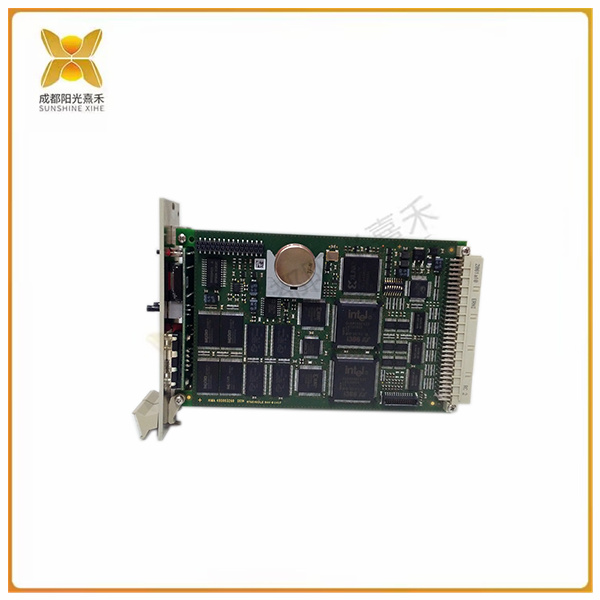

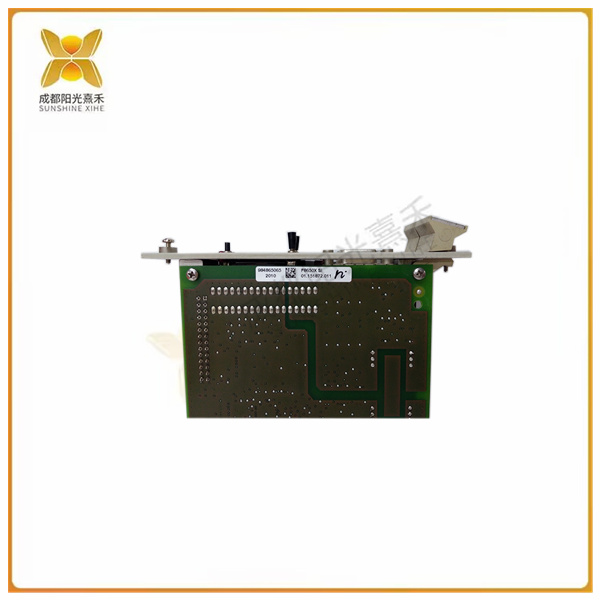

>>>>>型號:F8650X 輸入/輸出模塊 四位字母數字顯示

【功能描述】

中心模塊診斷顯示

-四位字母數字顯示;

-兩個led一般顯示錯誤(CPU為中央模塊，IO為可測試

輸入/輸出模塊),

-兩個撥動開關請求詳細的錯誤信息;

- ACK按鈕復位錯誤指示;

在失敗停止ACK行為像重新啟動系統。

有關診斷顯示和錯誤代碼列表的進一步信息，請參閱文檔“操作系統BS 41q/51q的功能”(也在ELOP II CD上)。

啟動和維護注意事項

-緩沖電池壽命(無電壓饋電):

在TA = 25℃下1000天

溫度為60℃，溫度為200天

—建議最遲在6后更換緩沖電池(運行中的CPU)

年，或在三個月內顯示BATI

鋰電池，如CR 2477N型，HIMA零件號44 0000018)

-查詢巴士站號碼。和交換機S1的傳輸速率，以便正確設置

-重要提示:當F 8650升級到F 8650X模塊時，風扇的概念也必須改變

被改變

 >>>>>型號:F8650X 輸入/輸出模塊 四位字母數字顯示

【英文介紹】

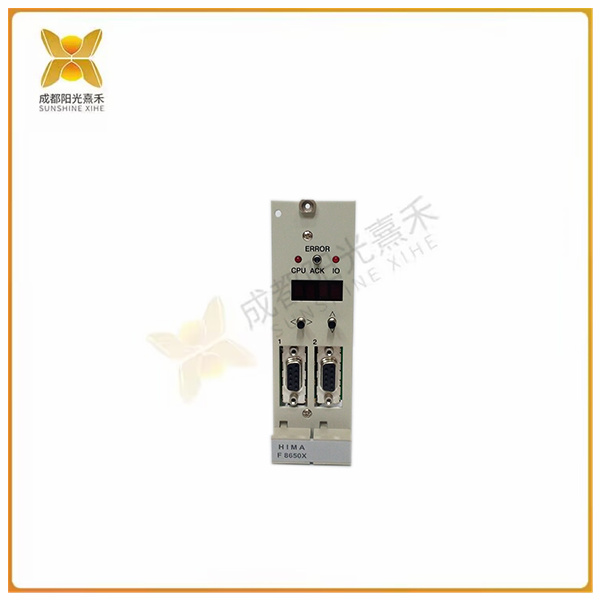

Diagnostic display of the central module

– Four digit alphanumerical display,

– two LEDs for the general display of errors (CPU for the central modules, IO for the testable

input/output modules),

– two toggle switches to request detailed error information,

– push-button ACK resets the error indication;

in failure stop ACK behaves like restarting the system.

For further information on the diagnostic display and lists of error codes, refer to the documentation "Functions of the operational system BS 41q/51q" (also on ELOP II CD).

Notes for start-up and maintenance

– Lifetime of the buffer battery (without voltage feeding):

1000 days at TA = 25 °C

 200 days at TA = 60 °C

– It is recommended to change the buffer battery (CPU in operation) at the latest after 6

years, or with display BATI within three months

(Lithium battery, e.g. type CR 2477N, HIMA part no. 44 0000018)

– Check the bus station no. and transmission rate at switch S1 for correct settings

– Important: When upgrading an F 8650 to an F 8650X module the fan concept has also to

be changed
