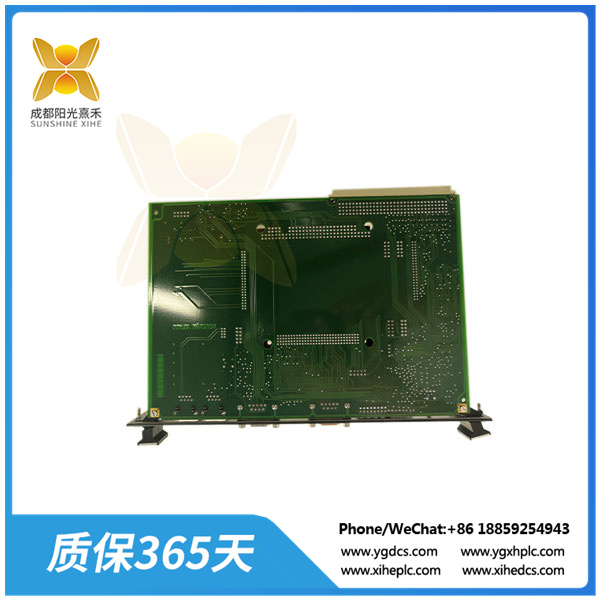

IS215WEPAH2B | 印刷電路板 | A total of 8 analog inputs

　　型號：IS215WEPAH2B

　　功能首字母縮略詞 WEPA公司

　　功能描述: 風能俯仰軸

　　PCB涂層 :三防漆

　　IS215WEPAH2B印刷電路板作為風能俯仰軸存在，對通用電氣殼牌公司GE能源的Mark VIe Speedtronic系列風力渦輪機控制系統自動驅動器和驅動組件非常重要。該產品作為風能俯仰軸的地位僅從其獨特的產品部分功能首字母縮略詞的細分中可以看出;它本身嵌入在IS215WEPAH2B個性化產品零件號中。此風能俯仰軸被認為是原始IS215WEPAH2B產品的修改版本;具有單一的功能修訂版，評級為“B”級。這種功能修訂被認為是功能性的，因?yàn)樗龠M(jìn)了IS215WEPAH2B俯仰軸的整體功能和效率的增強，同時不關注產品的美學或尺寸。

　　硬件提示和規格

　　與任何類似款式的GE能源Mark VIe系列印刷電路板一樣;該IS215WEPAH2B具有大量獨特的硬件組件，有助于實現其作為風能俯仰軸的預期功能。保持此功能的一個關鍵組件是IS215WEPAH2B板的輸入和輸出類型，它有幾種類型。此 WEPA 縮寫為風能俯仰軸的基板上的 I/O 類型包括：

　　總共 8 個模擬輸入

　　1 個增量編碼器輸入

　　一個獨立的模擬輸入

　　總共 20 個離散輸入

　　總共 2 個離散輸出

　　9 個繼電器輸出

　　2 個 RS-485 接口

　　2 個脈寬調制控制輸出

　　IS215WEPAH2B | Printed Circuit board | A total of 8 analog inputs

　　Model: IS215WEPAH2B

　　Functional acronym for WEPA Corporation

　　Function description: Wind pitching axis

　　PCB coating: three anti-paint

　　The IS215WEPAH2B printed circuit board exists as a wind energy pitch shaft and is important for automatic drives and drive components for the Mark VIe Speedtronic series wind turbine control systems from GE Energy, Shell. The product's position as a wind energy pitch axis is only evident from its unique product part function acronym breakdown; It is itself embedded in the IS215WEPAH2B personalized product part number. The wind energy pitch shaft is considered to be a modified version of the original IS215WEPAH2B product; It has a single functional revision and is rated "B". This functional revision is considered functional as it promotes the enhancement of the overall functionality and efficiency of the IS215WEPAH2B pitch shaft, while paying no attention to the aesthetics or size of the product.

　　Hardware tips and specifications

　　As with any similar GE Energy Mark VIe series printed circuit board; The IS215WEPAH2B has a number of unique hardware components that help fulfill its intended function as a wind energy pitch axis. A key component in maintaining this functionality is the input and output types of the IS215WEPAH2B board, which comes in several types. The types of I/O on the substrate of this WEPA acronym for Wind Energy Pitch Axis include:

　　A total of 8 analog inputs

　　1 incremental encoder input

　　A separate analog input

　　A total of 20 discrete inputs

　　A total of 2 discrete outputs

　　9 relay outputs

　　Two RS-485 ports

　　2 pulse width modulation control outputs
