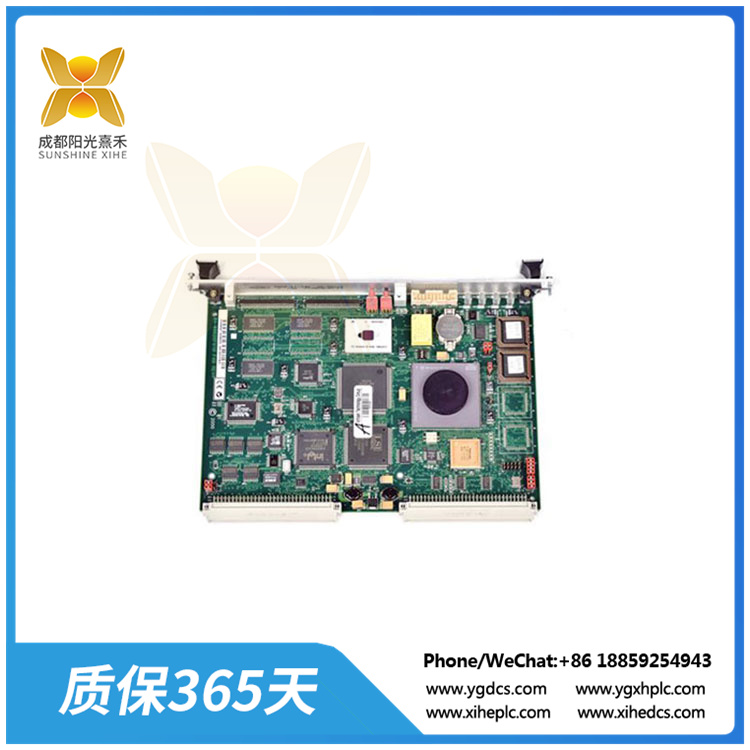

>>>>型號:MVME177-003 VME模塊

【功能描述】

MVME177-003是一款VME模塊，具有出色的性能和廣泛的應用領域。

該模塊經過特定的設計、測試和驗證，以確保在0°至55°C（32°至131°F）的進風溫度范圍內可靠運行。同時，它采用了100 CFM軸流風扇，以實現通常所的速度進行強制空氣冷卻，確保模塊在高溫環境下的穩定運行。

在溫度鑒定過程中，該模塊在標準的摩托羅拉vmessystem底盤中進行測試。測試過程中，25瓦負載板被插入兩個卡槽，每側一個，以模擬高功率密度系統配置。通過三個軸流風扇組件的強制冷卻，模塊可以在更高的

環境溫度下可靠運行。此外，模塊還提供了對關鍵高功率密度集成電路的溫度監控，以確保它們不超過組件供應商的規格。

MVME177-003模塊的主板上提供了一個3針頭（J17），用于為專用風扇供電，進一步增強了其冷卻和散熱能力。

MVME177-003模塊在自動化控制系統中也有廣泛的應用。例如，它可用于PLC（可編程邏輯控制器）系統，實現對設備的精確控制。通過與各種傳感器和執行器的連接，該模塊能夠接收和處理各種信號，實現復雜的控制邏輯。

>>>>>型號:MVME177-003 VME模塊

【英文介紹】

The MVME177-003 is a VME module with excellent performance and a wide range of applications.

The module has been specifically designed, tested and validated to ensure reliable operation over the inlet air temperature range of 0° to 55°C (32° to 131°F). At the same time, it uses

a 100 CFM axial flow fan to achieve the usual speed of forced air cooling, ensuring stable operation of the module in high temperature environments.

During temperature evaluation, the module was tested in a standard MOTOROLA vmessystem chassis. During the test, the 25-watt load board was inserted into two card slots, one

on each side, to simulate a high power density system configuration. Through the forced cooling of three axial fan assemblies, the module can operate reliably at higher ambient temperatures.

 In addition, the module provides temperature monitoring of key high power density integrated circuits to ensure that they do not exceed component supplier specifications.

A 3-pin (J17) is provided on the motherboard of the MVME177-003 module to power a dedicated fan, further enhancing its cooling and heat dissipation capabilities.

MVME177-003 module is also widely used in automatic control system. For example, it can be used in PLC (Programmable logic controller) systems to achieve precise control of equipment.

By connecting with various sensors and actuators, the module can receive and process various signals to realize complex control logic.
