MVME761-001  |    提供行業標準連接器    |  轉換模塊

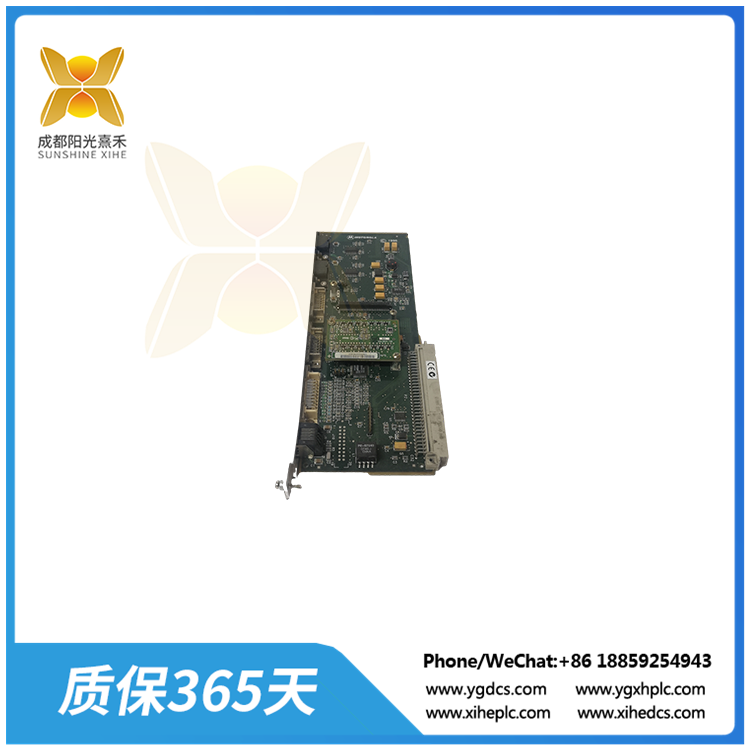

　　型號：MVME761-001

　　特征：

　　兩個MVME761-001異步串行端口 (DTE)

　　兩個可配置串行端口，用于 EIA-232-D、EIA-530、V.35 或 X.21 接口

　　一個符合IEEE標準的1284-I并行端口

　　10Base-T/100Base-TX 以太網

　　兩個 60 引腳串行接口模塊 (SIM) 連接器

　　MVME761 0x1轉換模塊提供 MVME260x、MVME270x、MVME360x 或 MVME460x 單板計算機 VMEmodule 與各種外圍設備之間的接口。該模塊提供行業標準連接器，以簡化客戶對串行端口、打印機和以太網信號的電纜要求。

　　MVME761-001轉換模塊，根據其具體功能和用途，可以有多種類型。以下是一些常見的轉換模塊及其描述：

　　電流/電壓變送轉換模塊：MVME761-001 這是一種小型化插裝式結構的轉換模塊，具有工作電源、輸入信號、輸出信號三者相互隔離的特點。它能將輸入的交流電壓或交流電流轉換成(4～20)mA或(1～5)V標準信號輸出，具有精度高、線性好、調試簡單、工作穩定可靠等特點。適用于電量參數的顯示、記錄、DCS系統的監控等場合。

　　光收發一體模塊(光模塊或光纖模塊)：這是光纖通信系統中重要的器件，主要完成光電轉換的功能。它的工作原理主要包括光的吸收、光電效應和電流輸出。光模塊的種類很多，如XFP、SFP、GigacBiDi系列單纖雙向光模塊等，每種模塊都有其特定的應用場景和優點。

　　Model: MVME761-001

　　Features:

　　Two MVME761-001 asynchronous Serial Ports (DTE)

　　Two configurable serial ports for EIA-232-D, EIA-530, V.35, or X.21 interfaces

　　An IEEE standard 1284-I parallel port

　　10Base-T/100Base-TX Ethernet

　　Two 60-pin serial interface module (SIM) connectors

　　The MVME761 0x1 conversion module provides interfaces between the MVME260x, MVME270x, MVME360x, or MVME460x single-board computer VMEmodule and various peripheral devices. The module offers industry-standard connectors to simplify customer cable requirements for serial ports, printers, and Ethernet signals.

　　The MVME761-001 conversion module can be of various types according to its specific function and use. Here are some common conversion modules and their descriptions:

　　Current/voltage converter module: MVME761-001 This is a miniaturized plug-in structure of the conversion module, with the working power supply, input signal, output signal three mutually isolated characteristics. It can change the input AC voltage or AC current into (4 ~ 20) mA or (1 ~ 5) V standard signal output, with high accuracy, good linearity, simple debugging, stable and reliable work. It is suitable for display, recording of power parameters, monitoring of DCS system and other occasions.

　　Optical transceiver integrated module (optical module or optical fiber module) : This is an important device in the optical fiber communication system, mainly to complete the function of photoelectric conversion. Its working principle mainly includes light absorption, photoelectric effect and current output. There are many types of optical modules, such as XFP, SFP, GigacBiDi series single-fiber bidirectional optical modules, etc. Each module has its specific application scenarios and advantages.
