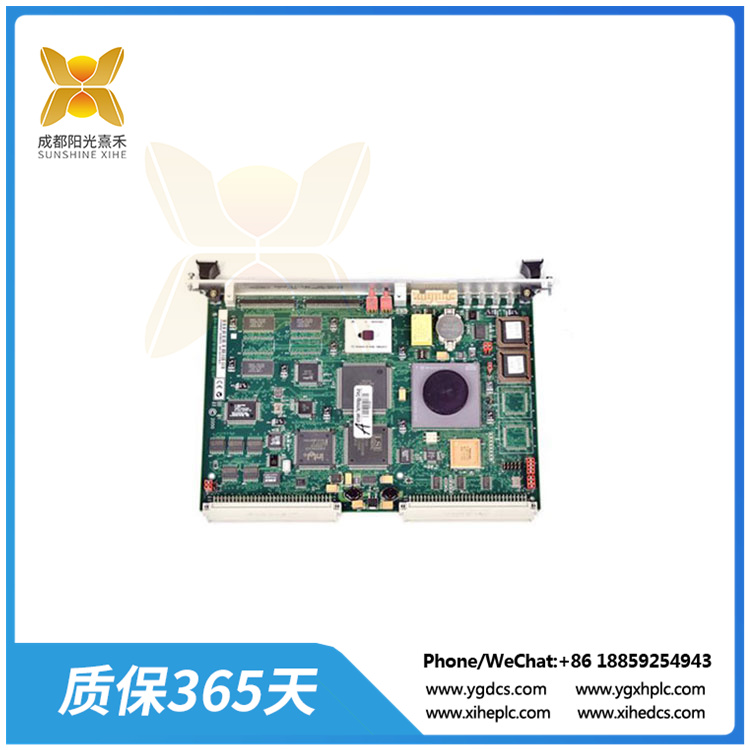

MVME162-13 | MVME224 | 雙高 VME 模塊 | MVME310

　　型號：MVME162-13

　　T配置：

　　? 25 MHz MC68040 微處理器，帶浮點協處理器

　　? 4 MB DRAM

　　? 512 KB SRAM

　　? 1 MB 閃存

　　? 4 個 IndustryPack 端口

　　? (1) 已安裝

　　BIOS 芯片 ? 串行端口 B 接口：EIA-232-D (DCE) 串行接口模塊，型號：SIMM06

　　特征：

　　雙高 VME 模塊

　　MC68LC040或MC68040微處理器

　　1MB、4MB 或 8MB 奇偶校驗保護 DRAM

　　512KB SRAM存儲單元

　　艾默生/摩托羅拉 MVME162 是一款雙高 VME 模塊，配備MC68LC040或可選的 MC68040 微處理器。(MC68040微處理器有一個浮點協處理器，MC68LC040沒有。MVME162具有 1MB、4MB 或 8MB 的奇偶校驗保護 DRAM;512KB SRAM(帶備用電池);TOD時鐘(帶備用電池);一個帶DMA的可選LAN以太網收發器接口，兩個串行端口(EIA-232-D和EIA-232-D/EIA-530);6 個帶看門狗定時器的滴答定時器;可選配帶DMA的SCSI總線接口;VMEbus 接口(本地總線到 VMEbus/VMEbus 到本地總線，具有 A16/A24/A32、D8/D16/D32 總線寬度和 VMEbus 系統控制器)。

　　MVME162-13 | MVME224 | Dual height VME module | MVME310

　　Model: MVME162-13

　　T configuration:

　　? 25 MHz MC68040 microprocessor with floating point coprocessor

　　? 4 MB DRAM

　　? 512 KB SRAM

　　? 1 MB flash memory

　　? Four IndustryPack ports

　　? (1) It has been installed

　　BIOS chip Serial port B Port: EIA-232-D (DCE) Serial interface module, model: SIMM06

　　Features:

　　Double height VME module

　　MC68LC040 or MC68040 microprocessor

　　1MB, 4MB, or 8MB parity protection DRAM

　　512KB SRAM storage unit

　　The Emerson/MOTOROLA MVME162 is a dual-height VME module with the MC68LC040 or optional MC68040 microprocessor. The MC68040 microprocessor has a floating-point coprocessor; the MC68LC040 does not. The MVME162 has 1MB, 4MB or 8MB parity-protected DRAM; 512KB SRAM (with spare battery); TOD clock (with spare battery); An optional LAN Ethernet transceiver interface with DMA, two serial ports (EIA-232-D and EIA-232-D/EIA-530); 6 tick timers with watchdog timer; Optional SCSI bus interface with DMA; VMEbus interface (local bus to VMEbus/VMEbus to local bus, with A16/A24/A32, D8/D16/D32 bus width and VMEbus system controller).
