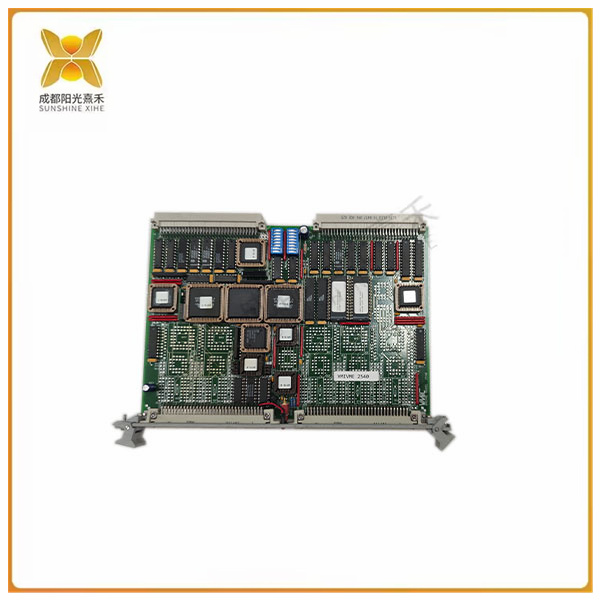

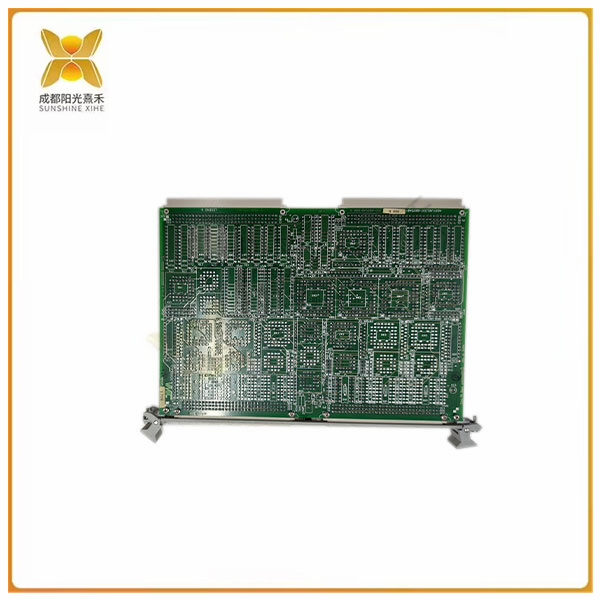

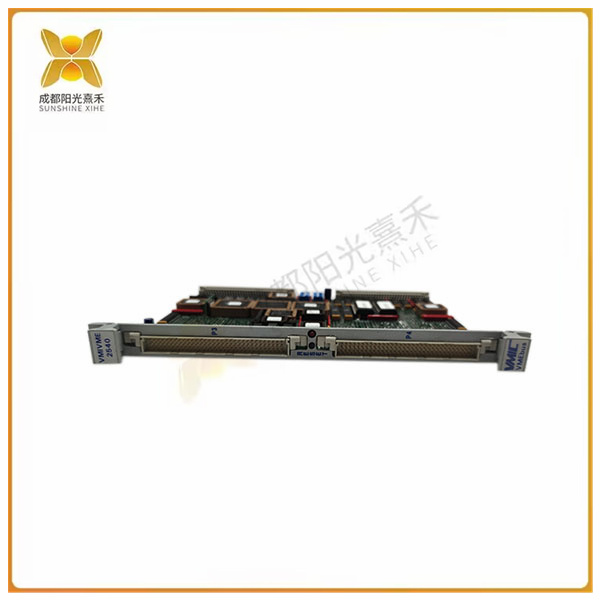

>>>>>型號:VMIVME-2540 智能計數器控制器 多種應用而設計

【功能描述】

VMIVME-2540由通用電氣的工業自動化生產系列開發和生產。這些型號隨后被Abaco Systems購買。該系列被稱為VMIC/GE Fanuc板，專為工業線路的多種應用而設計，例如CPU管理和輸入輸出通信。

VMIVME-2540是VMIC/GE Fanuc板卡的特定模塊之一，具有作為智能計數器控制器運行的功能。該設備能夠計算多達4個千兆事件。它配備了一系列24個離散輸出通道，這些通道能夠通過各種板載跳線模塊選項進行編程。這些跳線能夠在很寬的極端電壓電平下工作。

24個輸出通道旨在提供12位分辨率。它們能夠在+/-10 V的速率下提供和吸收高達10毫安的電流。

為了使用VMIVME-2540進行離線測試，模擬輸入設計為與外部電路斷開連接。

VMIVME-2540模塊設計有VMEbus從站接口，能夠提供4、8、16或24通道的數字信號測量和信號生成功能。這些可能的測量和信號輸出功能由一系列集成系統時序控制器以及一系列相關的接口邏輯應用。

 >>>>>型號:VMIVME-2540 智能計數器控制器 多種應用而設計

【英文介紹】

The VMIVME-2540 is developed and produced by GE's Industrial Automation production family. These models were subsequently purchased by Abaco Systems. The series is called VMIC/GE Fanuc boards and is designed for a variety of applications in industrial lines, such as CPU management and input/output communication.

The VMIVME-2540 is one of the specific modules of the VMIC/GE Fanuc board with the function of operating as an intelligent counter controller. The device is capable of calculating up to four gigabit events. It is equipped with a series of 24 discrete output channels that are capable of being programmed with various onboard jumper module options. These jumpers are capable of operating at a wide range of extreme voltage levels.

The 24 output channels are designed to provide 12-bit resolution. They are capable of delivering and absorbing up to 10 mA at rates of +/-10 V.

For off-line testing with the VMIVME-2540, the analog input is designed to be disconnected from the external circuit.

The VMIVME-2540 module is designed with a VMEbus slave interface to provide digital signal measurement and signal generation in 4, 8, 16 or 24 channels. These possible measurement and signal output functions are applied by a series of integrated system timing controllers and a series of associated interface logic applications.
